- Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C
- Receiver cassettes protect against threat of glassware breakage
- Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom
- Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories
- Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ)
- Large touch screen control panel with illuminated displays for all process parameters, programmable ramps
Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects:
- Metal frame and safety glass guard hood covering the bath
- High-impact PMMA door covering the glassware assembly
- High-impact PMMA latching doors which cover the receiving flask cassettes

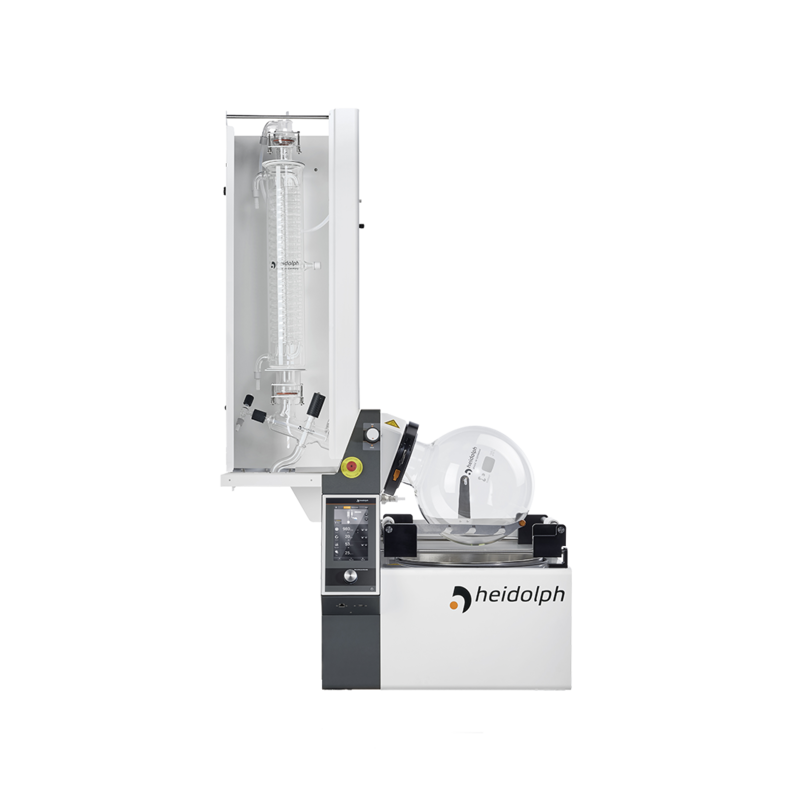

Hei-VAP Industrial B model with glassware R: For reflux and high boilers
This glassware assembly includes one ascending condenser, one 20-l evaporating flask, one 10-l receiving flask
Technical Data
Dimensions (W × H × D) : 998 × 2,225 × 694 mm
Weight : approx. 120 kg, without glassware
Speed range : 6 – 160 rpm
Acoustic pressure : < 85 (dB(A)) (in accordance with IEC 61010)
Rated voltage : 3 × 400 V (50/60 Hz) or 1 × 230 V (50/60 Hz)
Connection : L1+L2+L3+N+PE or L+N+PE
Overvoltage category : II
Power input : 4,600 W max.
Operating temperature: 5 °C – 31 °C at up to 80 % rel. humidity | 32 °C – 40 °C at up to 50 % rel. humidity (decreasing linearly)
Installation altitude : up to 2,000 m asl
Stroke flask lift ; 180 mm
Lifting speed flask lift : 45 mm/s
Evaporation rates (L/h) ΔT* 40 °C (for continuous operation) : Toluene 26.0 | Acetone 25.9 | Ethanol 12.9 | Water 4.7
Maximum cooling surface: 1.2 m2 (depending on glass set)
Heating bath : Inner Ø: 397 mm, outer Ø: 400 mm | Material: V4A steel (1.4404) X2CrNiMo 17-12-2 | Volume: 18 L H 2O / 14 L oil
Temperature range heating bath : 20 – 100 C° H2O / 20 – 180 C° oil
Overtemperature protection : integrated, mechanical
Overheat protection : n.a.
Control : detachable, 7 inch touchpanel, control knobs
Control accuracy : ± 1 C°
Storage conditions (recommendation) : 5 °C – 31 °C at up to 80 % rel. humidity | 32 °C – 40 °C at up to 50 % rel. humidity (decreasing linearly)
Permissible leakage rate: 1 mbar/min
Degree of protection, device : IP20
Control panel degree of protection : IP45
Heating bath temperature control: Microprocessor
Required pump capacity : 1,5 – 3 (m3/h)
Consumption cooling liquid : 150 – 250 (L/h)
‘
‘
‘
