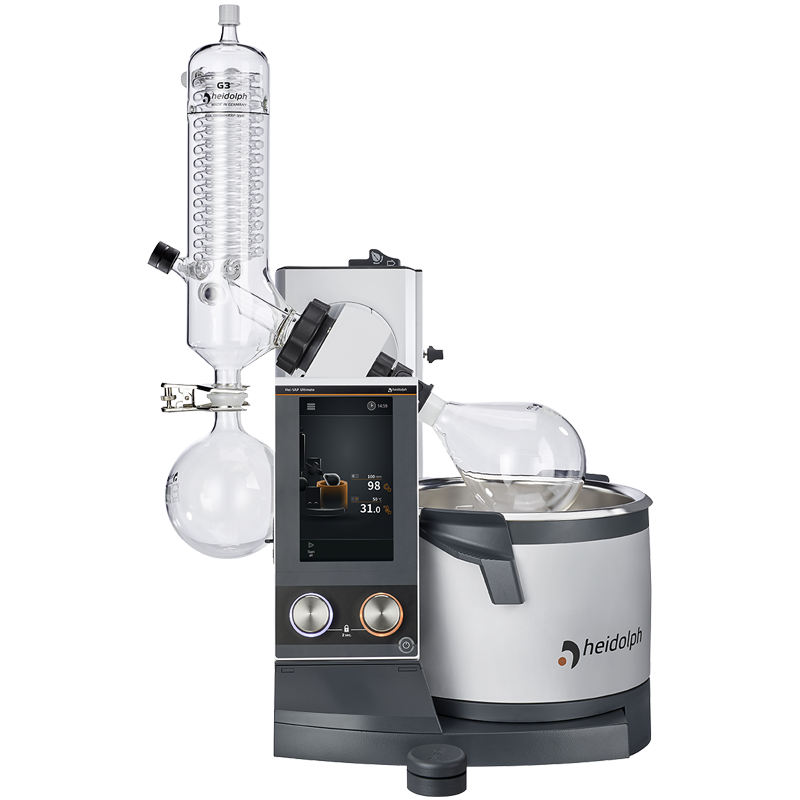

Precise setting of rotation speed and heating bath temperature on the digital touch display or – for quick access during an active process – directly via the knobs on the operating panel.
- Central operating panel with 7“ touch display
- Clear display of all values (Basic and Advanced modes)
- With timer, limitation of max. temperature, multilingual menu and text display for error messages
- Separate knobs for rotation and heating with locking function to prevent accidental readjusting
- LED ring lights and pictogram to display the activity even from a distance
- Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller
- USB and Micro SD plus LAN / RS 232 interfaces (Lab 4.0 ready)
- Optional display of vapor temperature
- Subsequent upgrade to Hei-VAP Ultimate Control possible, including vacuum and chiller control
Technical Data
Dimensions (W × H × D) : Variant with motor driven lift & glassware G3: 739 × 887 × 477 mm; Variant with manual lift & glassware G3: 739 × 887 × 532 mm
Weight : approx. 15 kg, without glassware
Speed range : 10 – 280 rpm
Acoustic pressure : < 85 (dB(A)) (in accordance with IEC 61010)
Rated voltage : 230 V (50/60 Hz) or 115 V (50/60 Hz)
Protection class : Device IP20; Control panel IP42; Control-Box IP42; Connection cable heating bath IP67; I (IEC 61140)
Overvoltage category : II
Power input : 1,400 W max.
Operating temperature : 5 °C – 31 °C at up to 80 % rel. humidity | 32 °C – 40 °C at up to 50 % rel. humidity (linearly reducing)
Installation altitude : up to 2,000 m asl
Stroke flask lift : 155 mm
Lifting speed flask lift : 55 mm/s
Evaporation rates (L/h) ΔT* 40 °C (for continuous operation) : Toluene 8,5 | Acetone 5,8 | Ethanol 3,5 | Water 1,2
Maximum cooling surface : 0.22 m2 (depending on glass set)
Heating bath : Inner Ø: 253 mm, outer Ø: 291 mm | Material: V4A steel (1.4404) X2CrNiMo 17-12-2 | Volume: 6 l
Temperature range heating bath : 20 – 100 C° H2O / 20 – 210 C° oil
Overtemperature protection : Cut-off at 5 °C deviation from the set temperature
Overheat protection : Threshold value 250 °C
Storage conditions (recommendation) : 5 °C – 31 °C at up to 80 % rel. humidity | 32 °C – 40 °C at up to 50 % rel. humidity (linearly reducing)
‘
‘
‘
