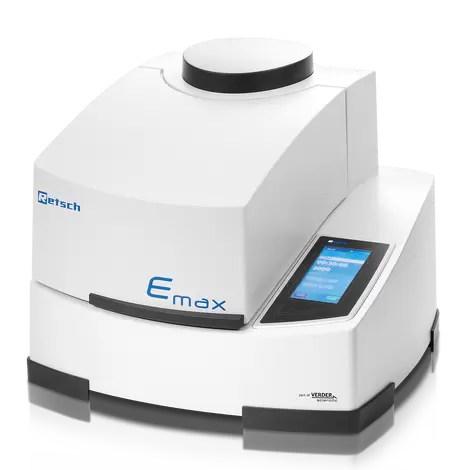

The Emax is an entirely new type of ball mill for high energy milling. The unique combination of high friction and impact results in extremely fine particles within the shortest amount of time.
| Applications | nano grinding, size reduction, homogenizing, mechanical alloying, colloidal milling, high energy comminution |
| Field of application | agriculture, biology, chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | medium-hard, hard, brittle, fibrous - dry or wet |
| Size reduction principle | impact, friction |
| Material feed size* | < 5 mm |
| Final fineness* | < 80 nm |
| Batch size / feed quantity* | max. 2 x 45 ml |
| Speed at 50 Hz (60 Hz) | 300 - 2000 min-1 |
| Cooling | controlled integrated water cooling / option: external chiller |
| Temperature control | yes (min and max temperature may be defined) |
| No. of grinding stations | 2 |
| Type of grinding jars | with integrated safety closure devices |
| Material of grinding tools | stainless steel, tungsten carbide, zirconium oxide |
| Grinding jar sizes | 50 ml / 125 ml |
| Setting of grinding time | 00:01:00 to 99:59:59 |
| Interval operation | yes, with optional direction reversal |
| Interval time | 00:01:00 to 99:59:59 |
| Pause time | 00:01:00 to 99:59:59 |
| Storable SOPs | 10 |
| Interface | USB / LAN ( RJ45) |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 2600 W |
| Electrical supply data | 200-240 V, 50/60 Hz |
| Power connection | 1-phase |
| Protection code | IP 30 |
| Power consumption | ~ 3100W (VA) |
| W x H x D closed | 625 x 525 x 645 mm |
| Net weight | ~ 120 kg |
| Standards | CE |
| Patent / Utility patent | Inclined Grinding bowls (US 8,042,754 B2) |
*depending on feed material and instrument configuration/settings
