Simple and Affordable Ideal for routine applications and student training. |
 |
LAQUA PC1500 Key Features:
• Provides accurate pH & ORP/Conductivity readings with auto temperature compensation
• Accepts up to 6 pH calibration points
• Auto calibrates USA, NIST, & DIN pH buffers
• Accepts up to 5 conductivity calibration points
• Auto calibrates 84μS/cm, 1413μS/cm, 12.88mS/cm, & 111.8mS/cm standards
• Displays offset & average slope
• Allows 1-point ORP calibration and temperature calibration
• Allows 1-point salinity calibration and temperature calibration
• Allows 1-point salinity calibration and temperature calibration
• With pre-programmed TDS and salinity curves for various applications
Meter Kit Available:
 |
Package Details:

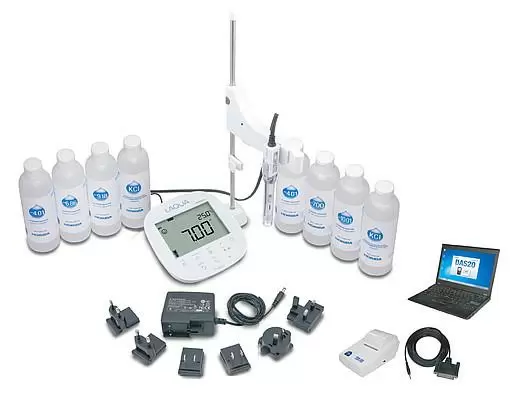

PC1500 - 3200899659 • Meter with integrated electrode stand PC1500-SR - 1300095722 • PC1500
|
| LAQUA-PC1500 pH/ORP/Conductivity/Resistivity/TDS/Salinity/Temp (°C/°F) Bench Meter |
|
| pH Range | -2.00 to 16.00 pH |
| Resolution | 0.01 pH |
| Accuracy | ± 0.01 pH |
| pH Buffer Groups | USA, NIST, DIN |
| Calibration Points | Up to 5 (USA, NIST) / Up to 6 (DIN) |
| ORP Range | ± 2000.0 mV |
| Resolution | 0.1 mV (< ±1000 mV), 1 mV (≥ ±1000mV) |
| Accuracy | ±0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000mV) |
| Calibration Option | Yes (Up to ±200 mV) |
| Conductivity Range | 0.00 μS – 200.0 mS |
| Resolution | 0.01 / 0.1 / 1 µS ; 0.01 / 0.1 mS |
| Accuracy | ±0.6% full scale, ±1.5% full scale > 18.0 mS/cm |
| Reference Temperature | 15.0 to 30.0 °C (adjustable) |
| Temperature Coefficient | 0.00 to 10.00 % per °C (adjustable) |
| Cell Constants | 0.070 to 13.00 (adjustable) |
| Calibration Points | Up to 4 (Auto) / Up to 5 (Manual) |
| Units | S/cm, S/m (Auto ranging) |
| Resistivity Range | 0.000 Ω•cm to 20.0 MΩ•cm |
| Resolution | 0.5% full scale |
| Accuracy | ±0.6% full scale, ±1.5% full scale > 1.80 MΩ•cm |
| Total Dissolved Solids (TDS) Range | 0 ppm – 100 ppt |
| Resolution | 0.01 / 0.1 / 1 ppm ; 0.01 / 0.1 ppt |
| Accuracy | ±0.1% full scale |
| TDS Curves | EN27888, 442, NaCl, Linear (0.40 to 1.00) |
| Salinity Range | 0.0 to 100.0 ppt / 0.00 to 10.00 % |
| Resolution | 0.1 ppt / 0.01% |
| Accuracy | ±0.2% full scale |
| Salinity Curves | NaCl / Seawater |
| Calibration Option | Yes |
| Temperature Range | -30.0 to 130.0 °C / -22.0 to 266.0 °F |
| Resolution | 0.1 °C / °F |
| Accuracy | ± 0.5 °C / ± 0.9 °F |
| Calibration Option | Yes ( ± 10.0 °C / ± 18.0 °F range in 0.1 °C increments) |
| Memory | 1000 data sets |
| Auto Data Log | Yes |
| Measurement Modes | Auto Stable / Auto Hold / Real Time |
| Offset & Slope Display | Yes (Average slope) |
| Auto Shut-Off | Yes (programmable: 1 to 30 mins.) |
| Electrode Status | On screen display |
| PC / Printer Communication | Phono jack (USB / RS232) |
| Meter Inputs | 2 x BNC, 2 x phono (ATC), DC sockets |
| Display | Static segment LCD with 160 segments |
| Power Requirement | AC adaptor 100 - 240V, 50 - 60Hz |
| Dimensions | 155 (L) x 150 (W) x 67 (H) mm |
| Weight | Approx. 740g |
| Electrode Stand | Integrated |
'
'
'
