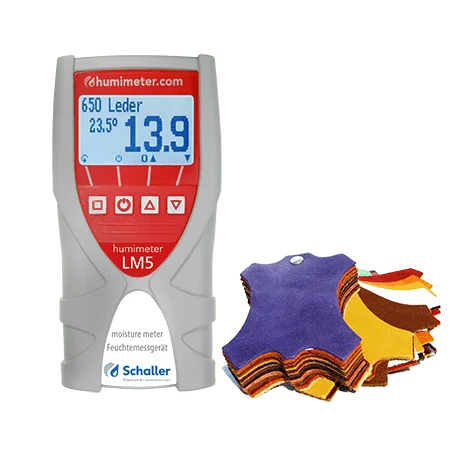

The humimeter LM5 Leather Moisture Meter is a hand-held device to measure leather moisture non-destructively.
Areas of Application:
It is ideal for finished products in the leather industry.
The measuring device is adjusted according to Kascalestion for the reference method EN ISO 4684.
| Measuring range | 3 to 20% water content |
|---|---|
| Resolution | 0,1% water content |
| Measuring depth | 5 mm |
| Minimum material thickness | 10 mm |
| Temperature range | 0 to +40 °C |
| Temperature compensation | Automatically |
| Measurement result | Within seconds without sample preparation |
| Compensation | Sample temperature measurement |
| Memory function | Hold function, datalog for up to 10.000 values with measuring point report |
| Dimensions | 147 x 75 x 30 mm |
| Weight | 265 g (including batteries) |
| Power Supply | 4 x 1,5 Volt AA Alkaline batteries |
| Menu languages | English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International |

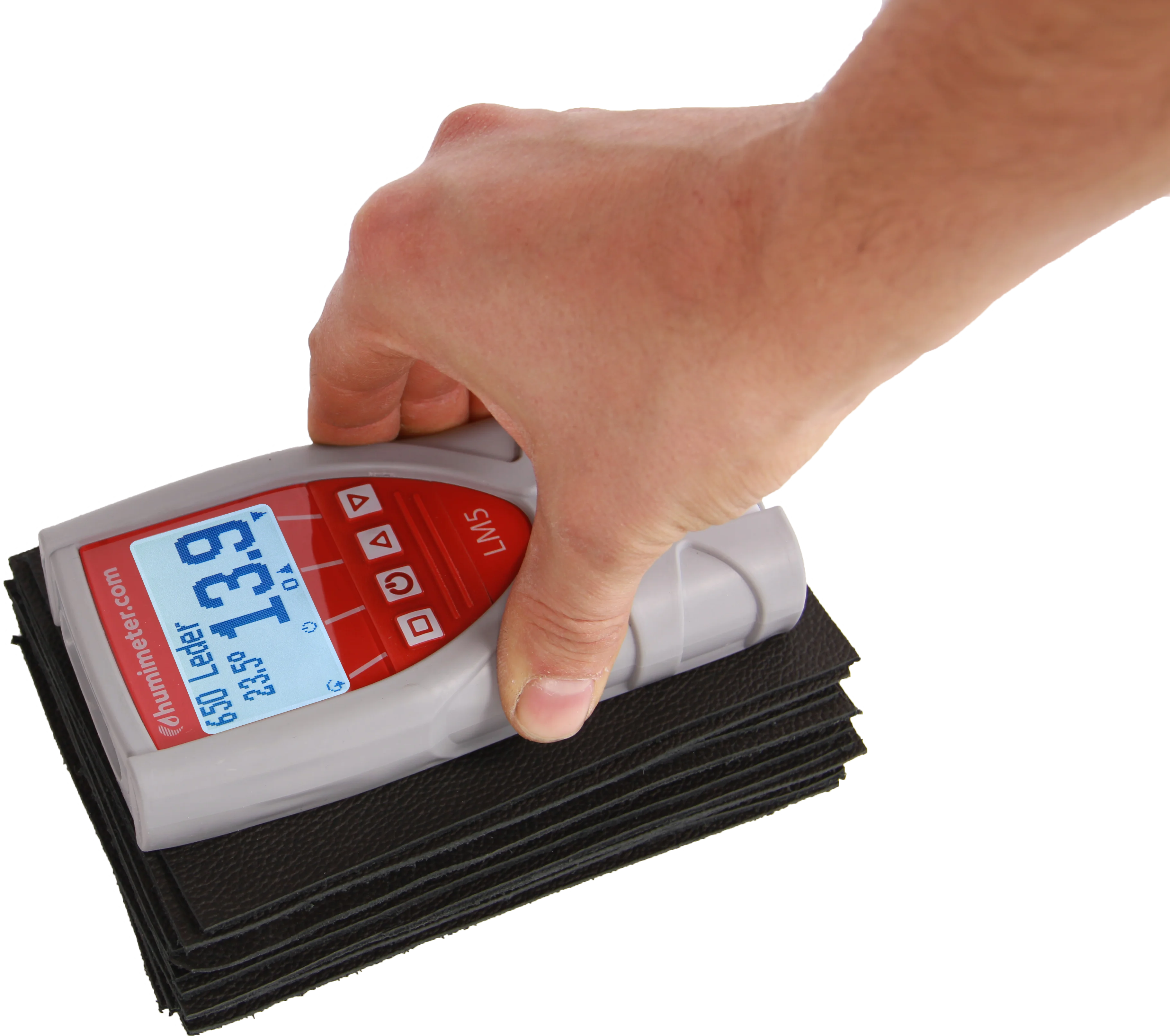

After selecting the right characteristic (depending on the density of the leather), the leather moisture meter humimeter Place LM5 on a large stack of leather skins (e.g. on a buck) that is at least 10mm thick and press firmly on. The absolute leather moisture and the temperature can be read immediately from the display. The leather is not damaged by the measuring process. The average water content can be determined in a matter of seconds by taking several measurements at different points.
Benefit from the non-destructive measurement method and optimize drying costs and maintenance times by detecting any moisture fluctuations or moisture spots in good time. The measured values can be saved on the device and supplemented with information such as batch numbers. With the optional USB interface, the measurement data can be transferred to a PC and archived, evaluated, exported or printed out using the LogMemorizer PC software.
