humimeter PMP paper moisture meter
for determining the absolute water content of the stack
- Quick and very precise measurement using non-destructive measuring methods
- Easy to use
- Small, handy, applicable everywhere on site
- Hold function
- Auto data logger and manual memory for measured values for up to 10.000 values with a description of the measuring location
- Lifetime Support
Features
The professional humimeter PMP paper moisture meter is perfect for incoming inspection at processors such as printers, corrugated board manufacturers and paper dealers.
The measuring device determines the absolute water content of the paper and solid board in the stack.
For the measurement at the running roll, the humimeter PM5 is required!
For the measurement of corrugated board, the humimeter RH5 is required!
The measuring device is adjusted according to Kascalestion for the reference method EN ISO 287.
Benefits
- Quick and very precise measurement using non-destructive measuring methods
- Easy to use
- Small, handy, applicable everywhere on site
- Menu language in German, English, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
Technical data
| Measuring range |
1 to 15% water content (depending on product type) |
| Resolution |
0,1% water content |
| Measuring depth |
20 mm |
| Paper temperature |
0 to +50 °C |
| Temperature compensation |
Automatically |
| Measurement result |
Within seconds without sample preparation |
| Memory function |
Hold function, datalog for 10.000 values with measuring point report |
| Dimensions |
147 x 75 x 30 mm (incl. rubber protection) |
| Weight |
265 g (including batteries) |
| Power Supply |
4 x 1,5 Volt AA Alkaline batteries |
| Menu languages |
English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International |
Handling and measurement process

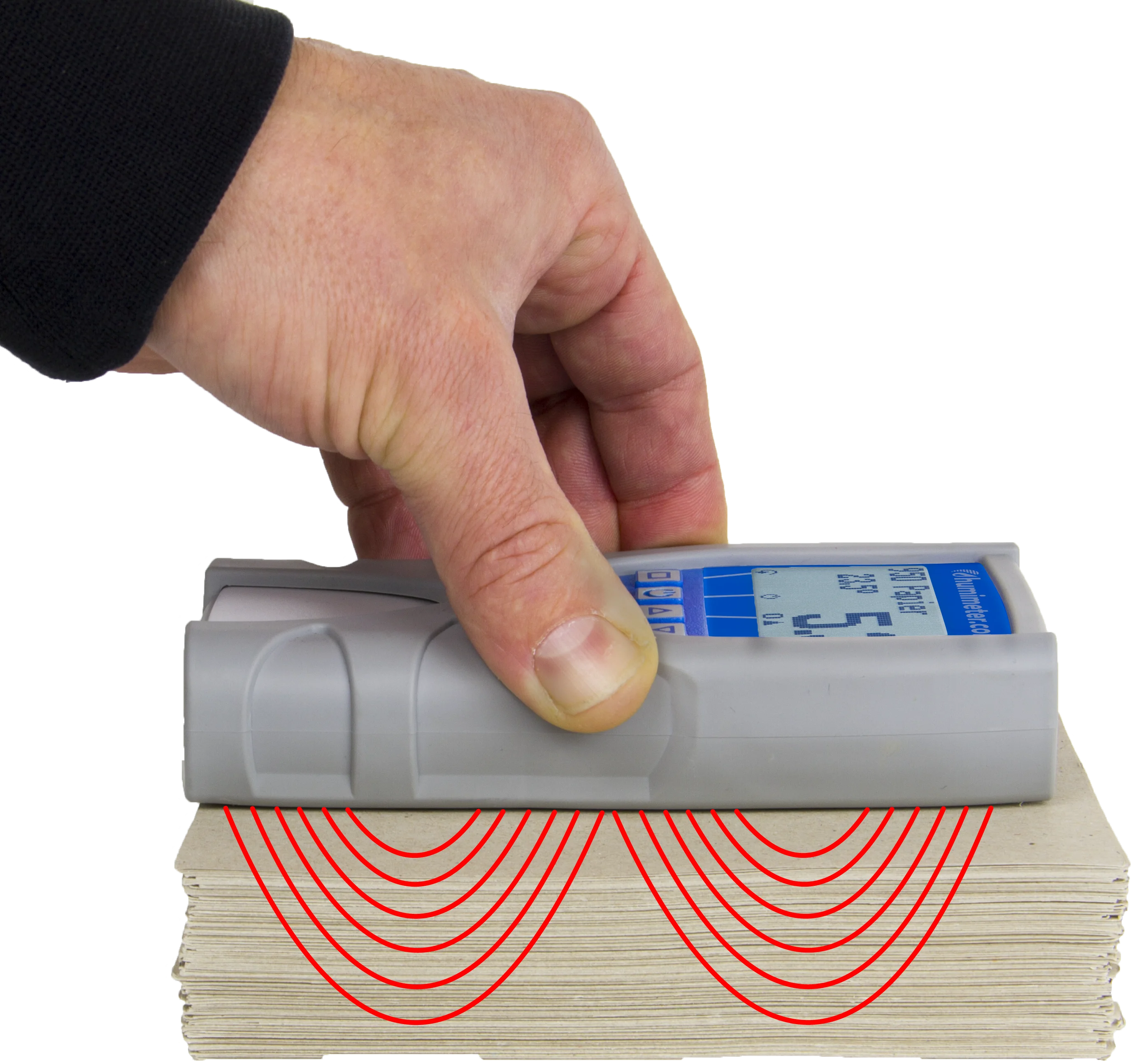

Switch on the device, select the correct calibration curve (depending on the paper density) and press the device on the material to be measured. The illuminated display immediately shows the measured value. The humimeter PMP offers data storage for up to 10.000 readings and the option of entering additional data such as batch numbers.
The device automatically calculates the average value for each saved series of measurements. The measured values can be transferred to a PC via the optionally available USB interface and the data can be archived, exported, processed or printed out using the LogMemorizer® PC software.
