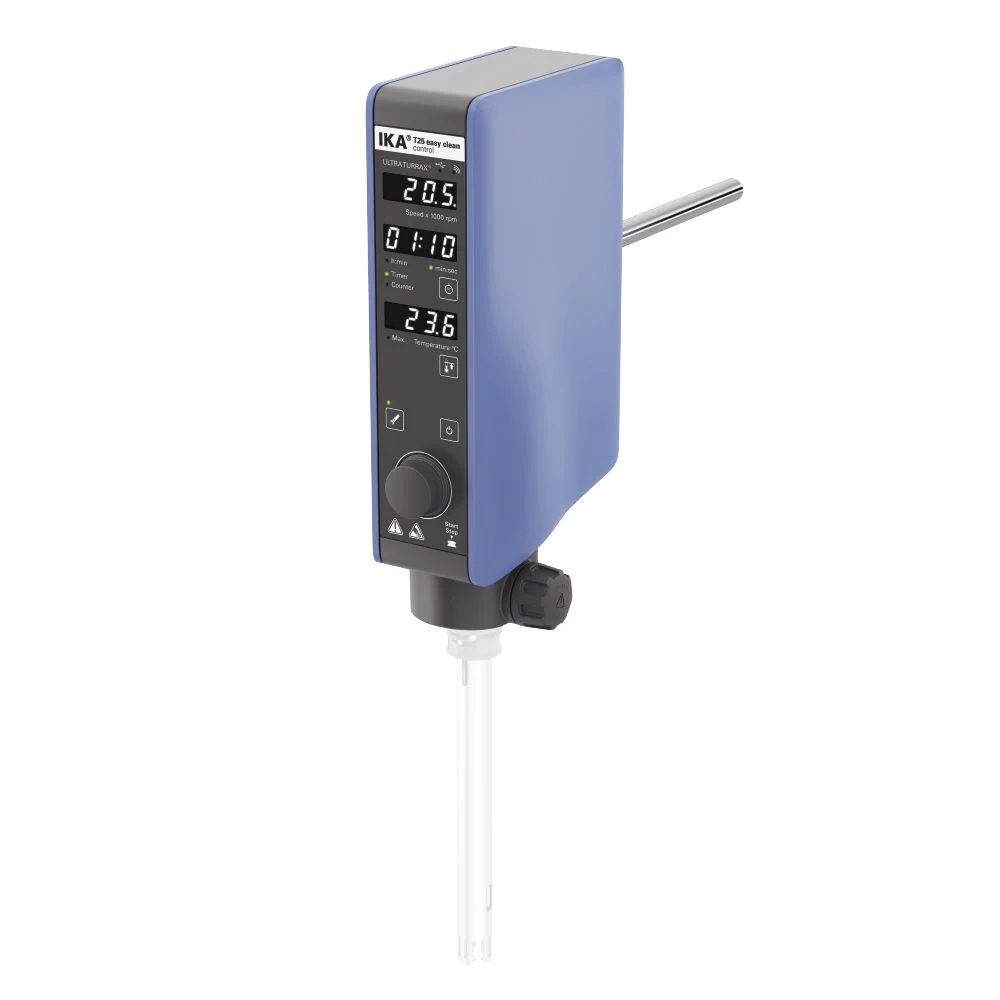

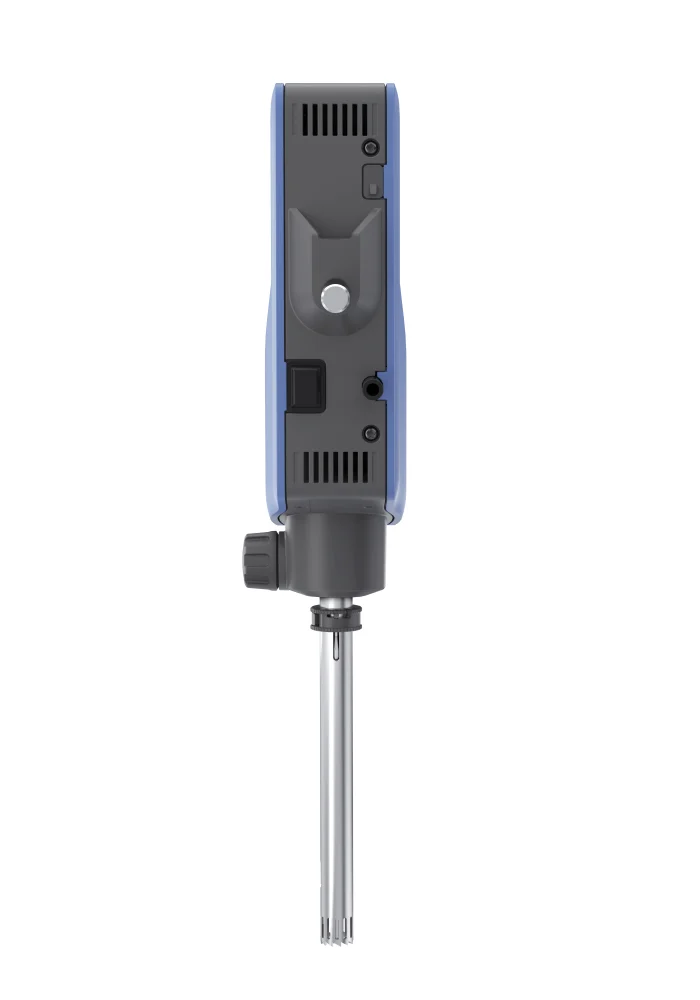

The T 25 easy clean control is a high-performance dispersing instrument with electronic speed control from 3,000 - 25,000 rpm for working volumes of 1 - 2,000 ml (H2O). The new tool S 25 EC-T-C-18G-ST allows temperature measurement and operation time detection through RFID. Device overheating is prevented by continuous temperature monitoring and the setting of temperature limits. The detection of operation time serves to guarantee regular maintenance.
All S 25 tools are compatible with T 25 easy clean control.
Key features in overview
The dispersing tool is not included in the scope of delivery.
Scope of delivery
| Motor rating input | 500 W |
| Motor rating output | 400 W |
| Volume range (H2O) | 0.001 - 2 l |
| Viscosity max. | 5000 mPas |
| Speed range | 3000 - 25000 rpm |
| Speed deviation | 2 % |
| Speed display | LED |
| Speed adjustment | stepless |
| Noise without element | 70 dB(A) |
| Motor principle | Brushless DC |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Process type | batch |
| Temperature display | yes |
| Temperature measuring range | 0 - 125 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±1 K |
| Timer | yes |
| Timer display | LED |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 89 x 270 x 161 mm |
| Weight | 3 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| USB interface | yes |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 500 W |
