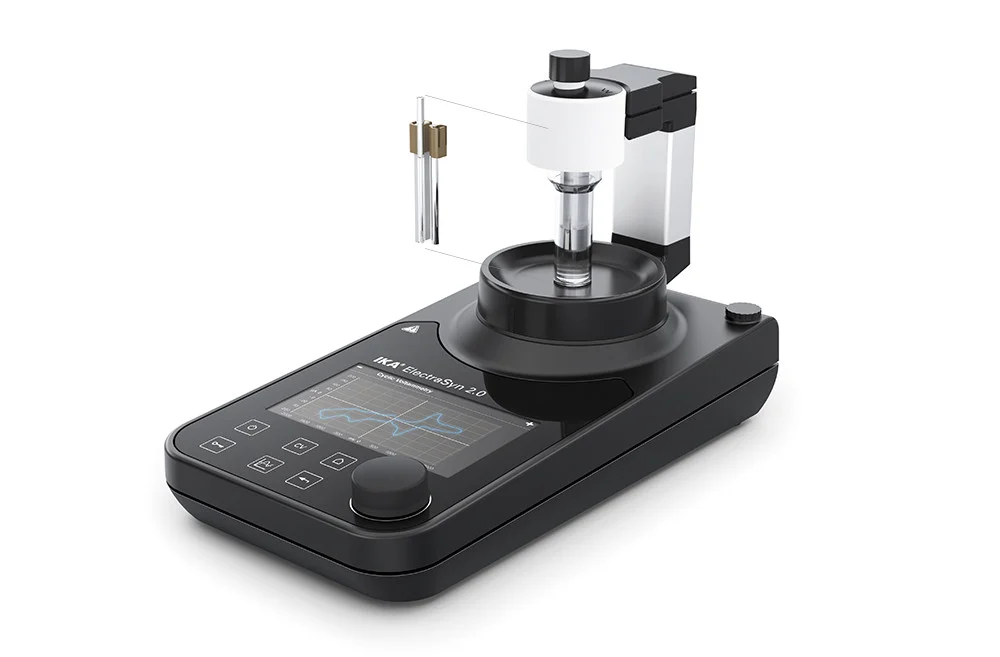

ElectraSyn 2.0 is a three-in-one device that runs electrosynthesis, cyclic voltammetry (CV), and room temperature stirring. Its beginner-friendly features allow synthetic chemist to run simple CV and explore the substrate’s electrochemical properties; set up constant current or constant voltage reactions in the most intuitive way.
We constantly strive to further optimize our devices for you. That is why our development never stops. The device keeps evolving with software development which enables state-of-art functionalities benefitting scientific discovery. Accessories are widely available in order to support the expanded functionalities.
The IKA ElectraSyn App (available for both iPhone and Android) enables reaction and CV experiment monitoring, data transfer, and various other functions.
The CV package is included in the pro package.
Scope of delivery
New to organic electrochemistry? This site is built for you!
We are excited to offer a resource for your research with ElectraSyn 2.0, as well as to facilitate the exchange of reactions/experiments as shared during last year’s Keynote.
The ElectraSyn 2.0 is constantly evolving to meet your needs—through the development of new accessories, features, and software updates, our engineers are determined to give you the best device possible. This page will provide insight into the world of Electrochemistry, ElectraSyn 2.0, and some of the pioneering research that has been done already. We will continue to strive for interesting content and updated feeds. If you would like to share your input, please contact ElectraSynWeb@ika.net.
| Nominal voltage (input) | 48 VDC |
| Current max. (input) | 1500 mA |
| Voltage output (electrode) | 30/10 V |
| Current output (electrode) | 100 mA |
| Motor rating output | 9 W |
| Speed range | 50 - 1500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring quantity max. per stirring position (H2O) | 0.1 l |
| Stirring bar length | 8 - 16 mm |
| Speed adjustment | Turning knob |
| Display | TFT |
| Output current resolution | 0.1 mA |
| Output voltage resolution | 0.01 V |
| Current measuring resolution | 0.1 mA |
| Voltage measuring resolution | 0.1 V |
| Current measuring accuracy | ±0.1 mA |
| Voltage measuring accuracy | ±0.01 V |
| Dimensions (W x H x D) | 130 x 150 x 250 mm |
| Weight | 3.55 kg |
| Permissible ambient temperature | 5 - 50 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 39.84 W |
| Power input standby | 5 W |
| DC Voltage | 48 V= |
| Current consumption | 750 mA |
