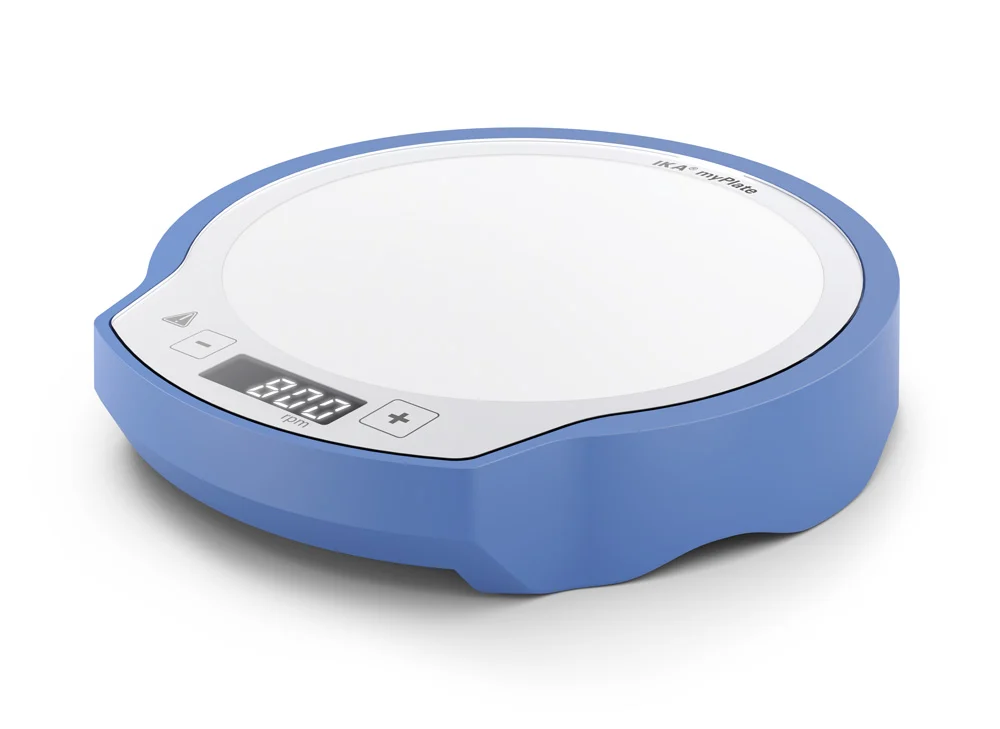

IKA myPlate combines the excellent technical features of the popular and proven IKA magnetic stirrers colour squid and big squid with the option of creative individualization.

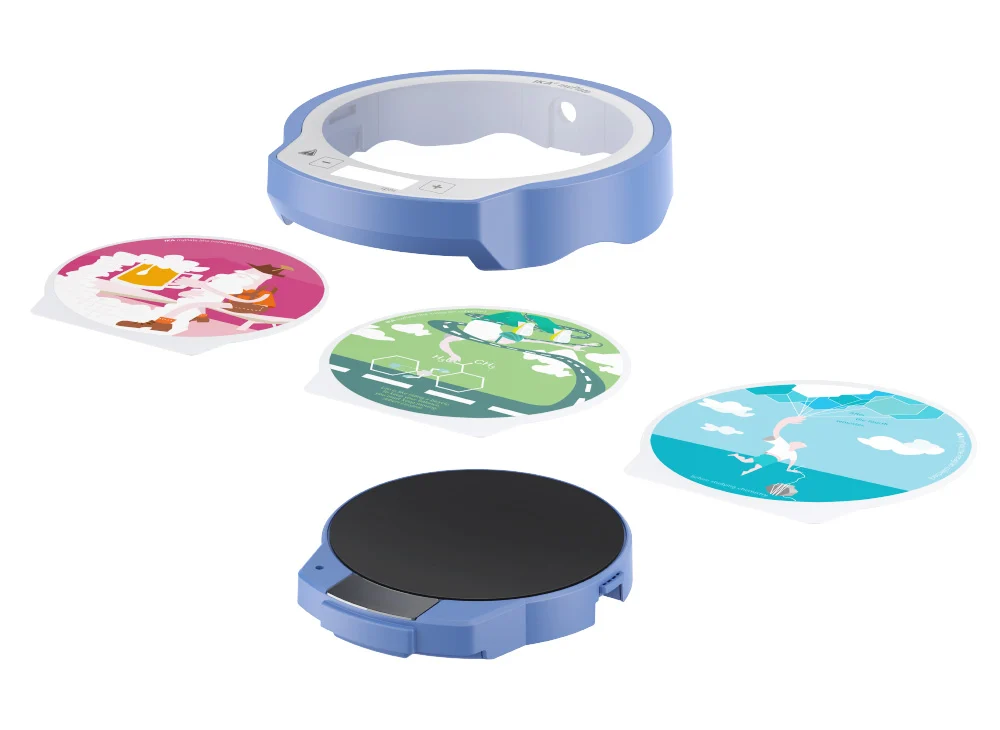

Personal interchangeable frame
Design the set-up plate of the IKA myPlate by yourself. You receive the device with a decorative image template, that can be exchanged easily through the convenient interchangeable frame. Some people have family photos on their desk - you convert one of the best magnetic stirrers from your day-to-day lab work into a canvas for your favorite pictures.
Proven high functionality
Apart from stirring your samples with IKA myPlate on a creative surface, you get all good features of this strong stirrer, just as you are used to from IKA.
Scope of delivery
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 1.5 l |
| Maximun load | 3 kg |
| Motor rating output | 2 W |
| Direction of rotation | left |
| Speed display set-value | LED |
| Speed display actual-value | LED |
| Speed adjustment | Touch key |
| Speed range | 100 - 2500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring bar length max. | 30 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +2 K |
| Set-up plate material | glass |
| Set-up plate dimensions | Ø 135 mm |
| Dimensions (W x H x D) | 152 x 30 x 164 mm |
| Weight | 0.76 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 4 W |
| Power input standby | 1 W |
| DC Voltage | 12 V= |
| Current consumption | 300 mA |
