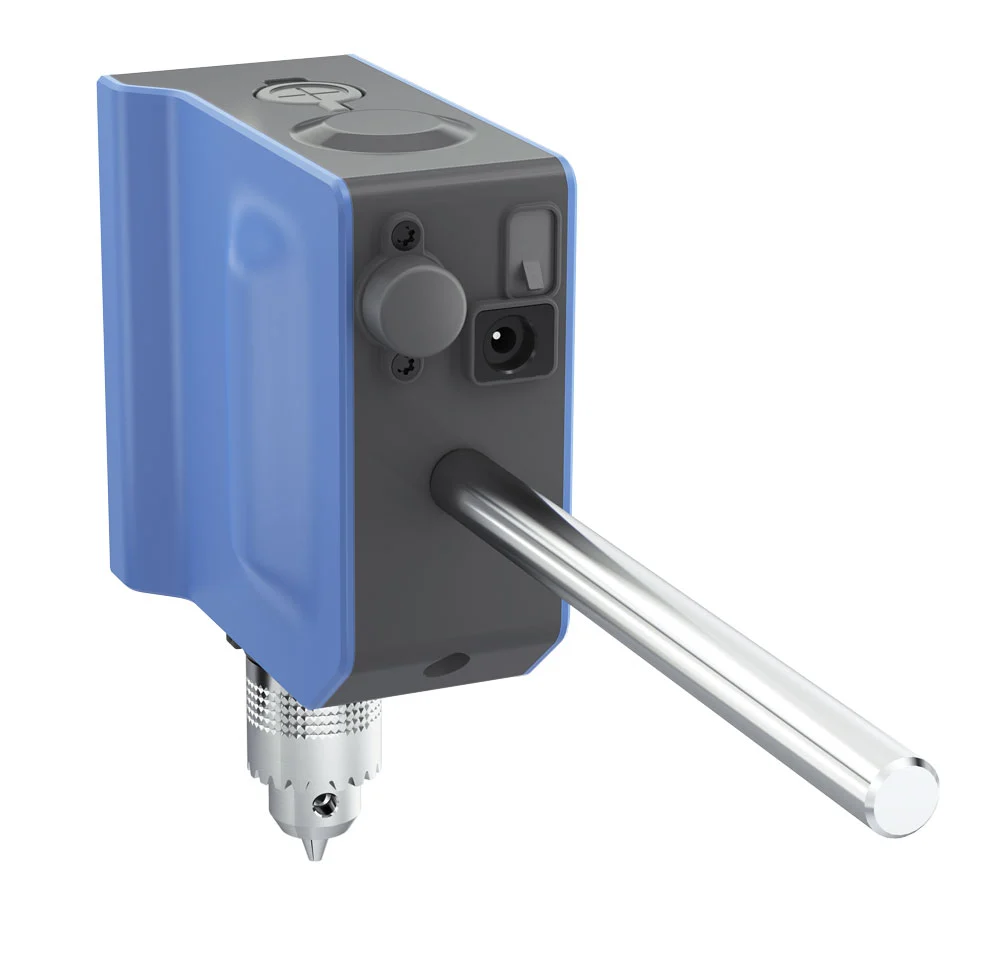

MICROSTAR 30 control
The new MICROSTARS series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:
“The Strong One” in the smallest high-tech class, reaches up to 500 RPM!
- Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
- State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
- Clear display for all essential information at a glance
- Integrated timer / counter for the control of kinetic sensitive reactions and reminders
- Viscosities up to 20,000 mPas and volumes of up to 20 l
- Continuously adjustable speed between 0/30 – 500 rpm
- USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
- Intuitive and simple handling; touch-sensitive surface for long service life
- Temperature reading on display
- Chemical resistant housing
- Key lock function
- Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
Scope of delivery
- MICROSTAR 30 control
- R 300 shaft protector
- Fasten screws for R 300 (2 pcs.)
- H 67.60 Temperature sensor, stainless steel
- chuck key
Technical Data
| Stirring quantity max. per stirring position (H2O) | 20 l |
| Motor rating input | 32 W |
| Motor rating output | 22 W |
| Motor principle | Brushless DC |
| Speed display | LCD |
| Speed range | 0/30 - 500 rpm |
| Viscosity max. | 20000 mPas |
| Output max. at stirring shaft | 15.7 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 30 Ncm |
| Speed adjustment | Turning knob |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Chuck range diameter | 0.5 - 8.2 mm |
| Hollow shaft, inner diameter | 8.5 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Torque display | yes |
| Speed control | electronic |
| Nominal torque | 0.3 Nm |
| Torque measurement | trend |
| Deviation of torque measurement I | ±3 Ncm |
| Timer | yes |
| Timer display | LCD |
| Time setting range | 0 - 6000 min |
| Temperature measuring range | -10 - 350 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K |
| Limit deviation temperature sensor | ≤ ± (0.15 + 0.002xITI) K |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 60 x 173 x 136 mm |
| Weight | 1.26 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| USB interface | yes |
| Bluetooth interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 32 W |
| DC Voltage | 24 V= |
| Current consumption | 1300 mA |
