The Jaw Crusher BB 500 is specifically designed for accepting large feed sizes up to 110 mm. The gap width can be set stepless from 0-11 mm. Depending on the sample material, particle sizes down to 0.5 mm can be obtained in one working run, resulting in an excellent crushing ratio of 220. A throughput of up to 500 kg/h is possible with the BB 500.
The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.
Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.

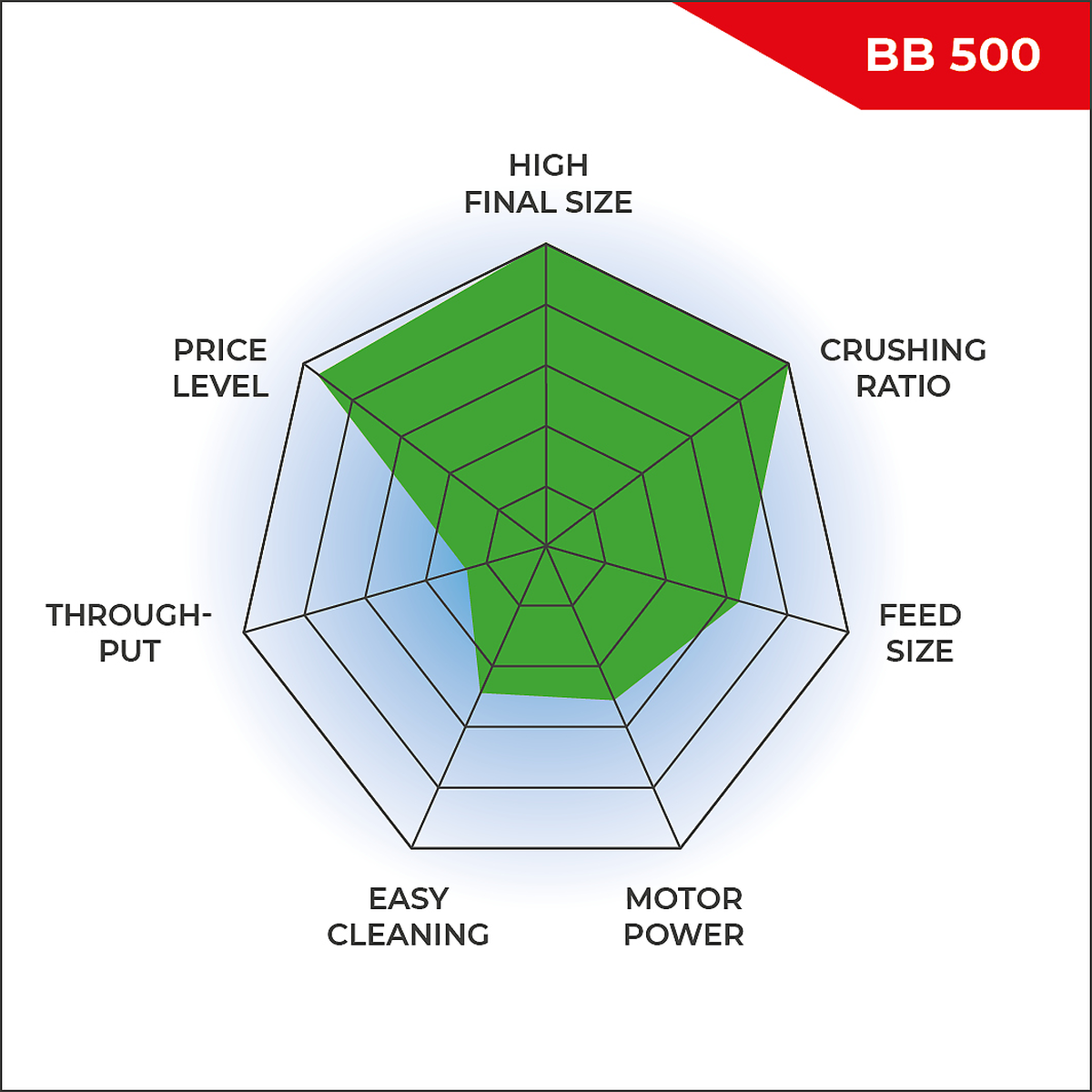

Best combination of power and final fineness
The BB 500 is a robust and powerful force-fed crusher characterized by its excellent crushing ratio. Thanks to the steep crushing chamber design, the highly effective crushing kinematics and the high frequency of the jaw movement it is possible to process samples with a feed size of up to 110 mm to a final fineness of 90 % below 0.5 mm in one working run.
The continuous gap width setting with scale ensures optimum size reduction in accordance with the set gap width. The receptacle for collecting the sample after crushing keeps up to 15 l sample per batch.
The feed hopper with splash-back protection can be removed quickly and easily. The BB 500 has a connection for dust extraction and is protected against mechanical overload.
Cleaning the crushing chamber is done quickly and easily thanks to removable hopper and exchangeable jaws and wearing plates
| Applications | coarse and pre-crushing |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Material feed size* | < 110 mm |
| Final fineness* | 90% < 0.5 mm |
| Throughput* | 500 kg/h |
| Material of grinding tools | manganese steel, NiHard 4 |
| Jaw width | 250 x 130 mm |
| Gap width setting | 0 - 11 mm |
| Gap width display | scale |
| Hinged hopper | yes |
| Dust extraction unit | yes |
| Central lubrication | no |
| Process line version | optional |
| Collector capacity | 15 l |
| Drive | 3-phase motor |
| Drive power | 7.5 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Protection code | IP 55 |
| W x H x D closed | 930 x 1400 x 1080 mm |
| Net weight | ~ 1000 kg |
| Standards | CE |
*depending on feed material and instrument configuration/settings
