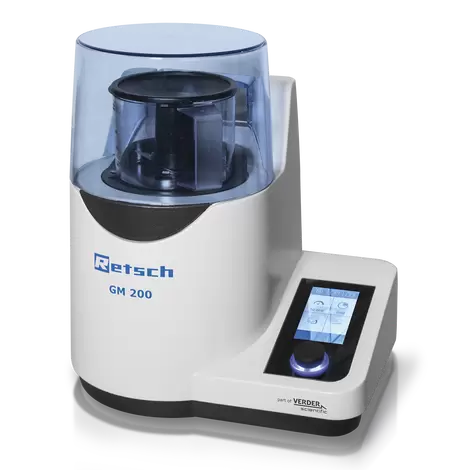

The knife mill GRINDOMIX GM 200 is the ideal instrument for grinding and homogenizing foods and feeds. With two sharp, robust blades and a powerful 1000 W motor, it allows to process sample volumes up to 0.7 liters quickly and effectively.
The GM 200 is not only ideal for homogenizing substances with a high water, oil or fat content but is also perfectly suited for grinding dry, soft and medium-hard products. The quick homogenization process without noteworthy temperature rise ensures preservation of volatile sample components.
Thanks to reproducible setting of parameters, programs and sequences, this mill ensures analytical results with minimum standard deviation. These features plus the wide selection of lids and containers, allowing for adaptation of the mill to individual application requirements, make the GRINDOMIX GM 200 a professional device superior to any commercial household mixer.
| Applications | size reduction, homogenization and mixing |
| Field of application | agriculture, biology, food, medicine / pharmaceuticals |
| Feed material | soft, medium-hard, elastic, containing water / fat / oil, dry, fibrous |
| Size reduction principle | cutting |
| Material feed size* | 40 mm |
| Final fineness* | < 300 µm |
| Batch size / feed quantity* | with standard lid 700 ml with reduction lid 150-300 ml with gravity lid 300 - 600 ml |
| Grinding chamber volume | with standard lid 1000 ml with reduction lid 250 ml/500 ml with gravity lid 400 - 800 ml |
| Speed setting | digital, 2,000 - 10,000 min-1 (14,000 min-1 BOOST) |
| Material of grinding tools | blade: stainless steel / titanium fixation of blade: PVDF / stainless steel container: autoclavable plastic / plastic PP / stainless steel |
| Setting of grinding time | digital, 1 s - 3 min |
| Interval operation | yes |
| Storable SOPs | 8 programms / 4 sequences |
| Drive | series-characteristic motor |
| Drive power | ~ 1000 W |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | grinding chamber and keypad IP 42 |
| Power consumption | ~ 1000 W |
| W x H x D closed | 350 x 275 x 392 mm (opened: 350 x 410 x 553) |
| Net weight | ~ 10 kg |
| Standards | CE |
*depending on feed material and instrument configuration/settings
Two sharp, robust blades rotate in the center of the grinding container. Depending on the rotational direction, size reduction is effected with the blunt side (preliminary size reduction) or the sharp side (fine grinding).
The knife is directly driven by a powerful motor of 1000 W. A pre-selectable speed which is maintained electronically ensures optimum adaptation to individual application requirements as well as reproducible grinding results.
