Easily Identify the Location of LAN Cable Wire Breaks

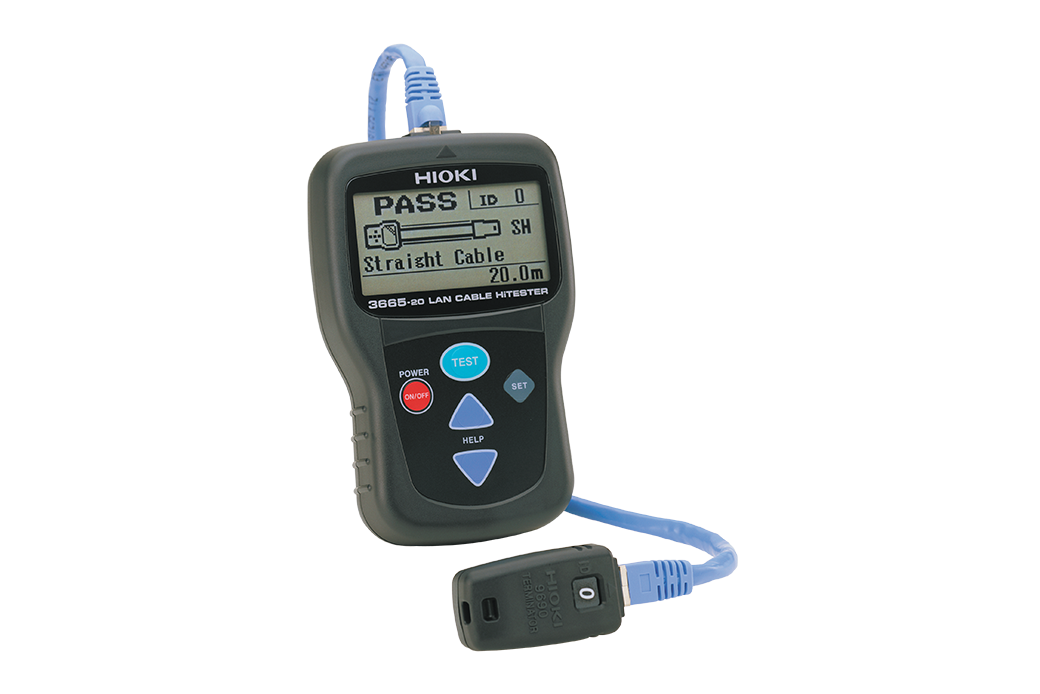

The Hioki 3665 is a handheld LAN cable tester to easily test wire map, measure cable length and identify twisted-pair cables, and is useful for verifying connections after installing connectors on cables. Optional terminators that facilitate easy identification of multiple cables make the LAN cable tester especially convenient for testing cables in working networks in the event of faults caused by open- or short-circuited cable wiring.
| Measurable cable | Twisted-pair cable, characteristic impedance: 100 Ω, shielded and unshielded, CAT 3, 4, 5, 5e, 6 and 6A | |||||
|---|---|---|---|---|---|---|
| Compatible connectors | RJ-45 plugs | |||||
| Wire map test | Detectable errors: open, short, reversed, transposed, split pairs and other incorrect wiring (Wiring condition and shielding can be confirmed using the Terminator 9690) |
|||||
| Cable length measurement | Measurable lengths: 2 m to 300 m (6.6 ft to 984 ft) Measurement accuracy: ± 4 % rdg. ± 1 m (3.3 ft)(condition of regulation: single wire) Display resolution: 0.1 m (0.3 ft) |
|||||
| Direction measurement | Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04 | |||||
| Power supply | LR6 (AA) alkaline battery ×2, 1.4 VA max., Continuous use : 50 hr (at measurement interval of 1 minute) | |||||
| Dimensions and mass | 85 mm (3.35 in)W × 130 mm (5.12 in)H × 33 mm (1.30 in)D, 160 g (5.6 oz) (without batteries) | |||||
| Included accessories | Terminator 9690 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2, Instruction manual ×1 | |||||
