The smallest instrument for smallest quantities

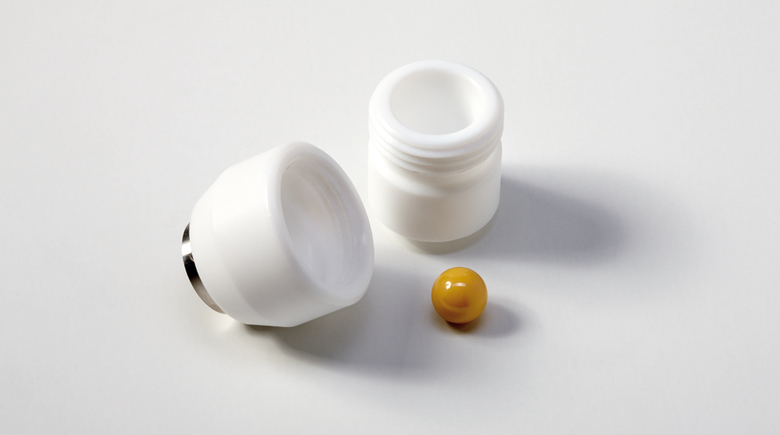

The ultra-compact FRITSCH Mini-Mill is ideal for fine comminution of smallest quantities of medium-hard, brittle and moist samples – wet, dry or cryogenic. Its special spherical grinding bowl ensures a much better performance in grinding, mixing and homogenizing compared with similar models. With a footprint of just 20 x 30 cm and a weight of 7 kg it easily fits anywhere; it’s smart, user-friendly, inexpensive and convinces with impressive results, small, fast, effective.
| Working principle | impact force |
| Optimal for material type | medium-hard, brittle, moist |
| Grinding tools | grinding bowls and grinding balls |
| Materials of the grinding tools | zirconium oxide, hardened stainless steel, PTFE |
| Grinding bowl sizes | 5, 10, 15 ml |
| Grinding ball diameter | 0.1 – 15 mm |
| Max. feed size (depends on material) | 6 mm |
| Min. sample quantity | 0.1 ml |
| Max. sample quantity | 5 ml |
| Final fineness (depends on material) | 5 µm |
| Grinding time (depends on material) | 2 min |
| Grinding process | dry / wet |
| Cryogenic grinding | liquid nitrogen can be used for pre-cooling in the PTFE bowl |
| Grinding bowl oscillations per minute | 900 – 3,000 at 9 mm amplitude |
| Electrical details | 100 – 240 V/1~, 50 – 60 Hz, 70 Watt |
| Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be ground and grinding bowl/balls used) | approx. LpAd = 75 dB |
| Weight | 7 kg |
| Dimensions (W x D x H) | bench top instrument 20 x 30 x 30 cm |
