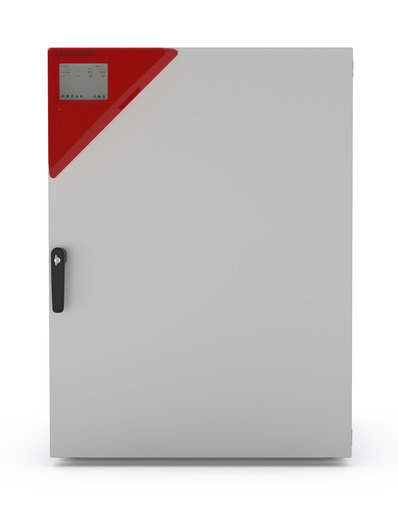

The powerful and versatile CB CO₂ incubator is suitable for cell-based assays in drug and medical research. This BINDER incubator is even suitable for complex cultivation experiments or individual environments with hypoxic conditions thanks to its comprehensive assortment of options and accessories.
Ethernet, USB, zero-voltage alarm contact
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Article Number | 9640-0013 | 9640-0014 | 9640-0015 | 9640-0016 |
| Option model | Standard | with O2 control 0.2–20% | Standard | with O2 control 0.2–20% |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Temperature range | +5 °C above ambient temperature to 60 °C | +6 °C above ambient temperature to 60 °C | +5 °C above ambient temperature to 60 °C | +6 °C above ambient temperature to 60 °C |
| Temperature uniformity at 37°C | 0.4 ± K | 0.4 ± K | 0.4 ± K | 0.4 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K | 0.1 ± K | 0.1 ± K |
| Recovery time after door was opened for 30 s at 37°C | 6 min | 6 min | 6 min | 6 min |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Humidity range | 90 ...95 % RH | 90 ...95 % RH | 90 ...95 % RH | 90 ...95 % RH |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| CO₂ range | 0 ...20 Vol.-% CO2 | 0 ...20 Vol.-% CO2 | 0 ...20 Vol.-% CO2 | 0 ...20 Vol.-% CO2 |
| CO₂ measuring technology | IR | IR | IR | IR |
| CO₂ recovery time after door was opened for 30 s at 5 vol. % CO₂ | 5 min | 5 min | 5 min | 5 min |
| Standard O₂ control range | 0.2 ...20 Vol.-% O2 | 0.2 ...20 Vol.-% O2 | ||
| O₂ control ranges with option: O₂ range | 10 ...90 Vol.-% O2 | 10 ...90 Vol.-% O2 | ||
| O₂ recovery time after door was opened for 30 s at 5 vol. % O₂ | 15 min | 15 min |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Rated Voltage | 200...230 V | 200...230 V | 100...120 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,5 kW | 1,5 kW | 1,5 kW | 1,5 kW |
| Unit fuse | 10,0 A | 10,0 A | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ | 1~ | 1~ |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Interior volume | 267 L | 267 L | 267 L | 267 L |
| Net weight of the unit (empty) | 125 kg | 125 kg | 125 kg | 125 kg |
| Load per rack | 10 kg | 10 kg | 10 kg | 10 kg |
| Permitted load | 40 kg | 40 kg | 40 kg | 40 kg |
| Wall clearance back | 100 mm | 100 mm | 100 mm | 100 mm |
| Wall clearance sidewise | 50 mm | 50 mm | 50 mm | 50 mm |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Width net | 740 mm | 740 mm | 740 mm | 740 mm |
| Height net | 1,020 mm | 1,020 mm | 1,020 mm | 1,020 mm |
| Depth net | 785 mm | 785 mm | 785 mm | 785 mm |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Interior width | 620 mm | 620 mm | 620 mm | 620 mm |
| Interior height | 750 mm | 750 mm | 750 mm | 750 mm |
| Interior depth | 575 mm | 575 mm | 575 mm | 575 mm |
| Inner doors | 1 | 1 | 1 | 1 |
| Unit doors | 1 | 1 | 1 | 1 |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Sound-pressure level | 41 dB(A) | 41 dB(A) | 41 dB(A) | 41 dB(A) |
| Energy consumption at 37°C | 65 Wh/h | 65 Wh/h | 65 Wh/h | 65 Wh/h |
| Designation | CB260-230V | CB260-230V-O | CB260UL-120V | CB260UL-120V-O |
| Number of shelves (std./max.) | 3/8 | 3/8 | 3/8 | 3/8 |
