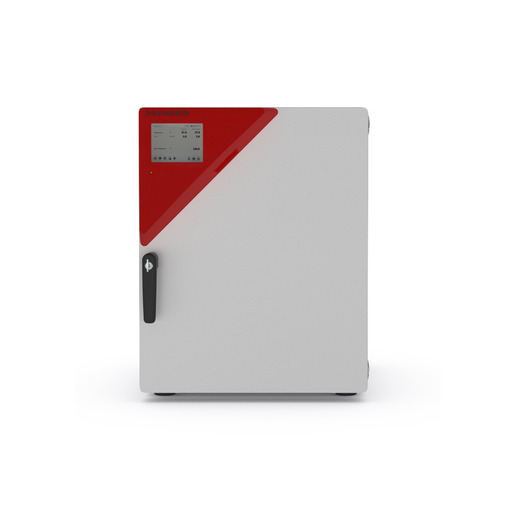

The powerful and versatile CB CO₂ incubator is suitable for cell-based assays in drug and medical research. This BINDER incubator is even suitable for complex cultivation experiments or individual environments with hypoxic conditions thanks to its comprehensive assortment of options and accessories.
Ethernet, USB, zero-voltage alarm contact
| Designation | CB056-230V | CB056UL-120V |
| Article Number | 9640-0005 | 9640-0007 |
| Option model | Standard | Standard |
| Designation | CB056-230V | CB056UL-120V |
| Temperature range | +4 °C above ambient temperature to 60 °C | +4 °C above ambient temperature to 60 °C |
| Temperature uniformity at 37°C | 0.3 ± K | 0.3 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K |
| Recovery time after door was opened for 30 s at 37°C | 5 min | 5 min |
| Designation | CB056-230V | CB056UL-120V |
| Humidity range | 90 ...95 % RH | 90 ...95 % RH |
| Designation | CB056-230V | CB056UL-120V |
| Rated Voltage | 200...230 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 0,8 kW | 0,8 kW |
| Unit fuse | 10,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation | CB056-230V | CB056UL-120V |
| Interior volume | 53 L | 53 L |
| Net weight of the unit (empty) | 53 kg | 53 kg |
| Load per rack | 10 kg | 10 kg |
| Permitted load | 30 kg | 30 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 50 mm | 50mm |
| Designation | CB056-230V | CB056UL-120V |
| Width net | 528 mm | 528 mm |
| Height net | 674 mm | 674 mm |
| Depth net | 545 mm | 545 mm |
| Designation | CB056-230V | CB056UL-120V |
| Interior width | 400 mm | 400 mm |
| Interior height | 400 mm | 400 mm |
| Interior depth | 330 mm | 330 mm |
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
| Designation | CB056-230V | CB056UL-120V |
| Sound-pressure level | 41 dB(A) | 41 dB(A) |
| Energy consumption at 37°C | 45 Wh/h | 45 Wh/h |
| Designation | CB056-230V | CB056UL-120V |
| Number of shelves (std./max.) | 2/3 | 2/3 |
