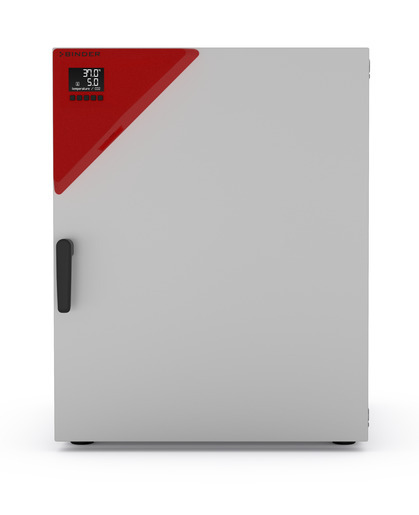

The durable and affordable CB-S series incubators are suitable for routine cell cultivation applications in the field of cell production, particularly in academic settings. They are contamination-proof due to 180°C hot air sterilization and reliably pH-stable thanks to the drift-free infrared CO₂ measurements conducted in real time.
+6°C above ambient temperature to +50°C
90 to 95% RH
0 to 20 vol.% CO₂
Ethernet, USB, zero-voltage alarm contact
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Article Number | 9640-0001 | 9640-0029 | 9640-0002 | 9640-0030 |
| Option model | Standard | with Access port 30 mm left | Standard | with Access port 30 mm left |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Temperature range | +6 °C above ambient temperature to 50 °C | +6 °C above ambient temperature to 50 °C | +6 °C above ambient temperature to 50 °C | +6 °C above ambient temperature to 50 °C |
| Temperature uniformity at 37°C | 0.3 ± K | 0.3 ± K | 0.3 ± K | 0.3 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K | 0.1 ± K | 0.1 ± K |
| Recovery time after door was opened for 30 s at 37°C | 6 min | 6 min | 6 min | 6 min |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Humidity range | 90 ...95 % RH | 90 ...95 % RH | 90 ...95 % RH | 90 ...95 % RH |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| CO₂ range | 0 ...20 Vol.-% CO2 | 0 ...20 Vol.-% CO2 | 0 ...20 Vol.-% CO2 | 0 ...20 Vol.-% CO2 |
| CO₂ measuring technology | IR | IR | IR | IR |
| CO₂ recovery time after door was opened for 30 s at 5 vol. % CO₂ | 5 min | 5 min | 5 min | 5 min |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Rated Voltage | 200...230 V | 200...230 V | 100...120 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,3 kW | 1,3 kW | 1,3 kW | 1,3 kW |
| Unit fuse | 10,0 A | 10,0 A | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ | 1~ | 1~ |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Interior volume | 170 L | 170 L | 170 L | 170 L |
| Net weight of the unit (empty) | 96 kg | 96 kg | 96 kg | 96 kg |
| Load per rack | 10 kg | 10 kg | 10 kg | 10 kg |
| Permitted load | 30 kg | 30 kg | 30 kg | 30 kg |
| Wall clearance back | 100 mm | 100 mm | 100 mm | 100 mm |
| Wall clearance sidewise | 50 mm | 50 mm | 50 mm | 50 mm |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Width net | 680 mm | 680 mm | 680 mm | 680 mm |
| Height net | 870 mm | 870 mm | 870 mm | 870 mm |
| Depth net | 715 mm | 715 mm | 715 mm | 715 mm |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Interior width | 560 mm | 560 mm | 560 mm | 560 mm |
| Interior height | 600 mm | 600 mm | 600 mm | 600 mm |
| Interior depth | 505 mm | 505 mm | 505 mm | 505 mm |
| Inner doors | 1 | 1 | 1 | 1 |
| Unit doors | 1 | 1 | 1 | 1 |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Sound-pressure level | 41 dB(A) | 41 dB(A) | 41 dB(A) | 41 dB(A) |
| Energy consumption at 37°C | 45 Wh/h | 45 Wh/h | 45 Wh/h | 45 Wh/h |
| Designation | CBS170-230V | CBS170-230V-D | CBS170UL-120V | CBS170UL-120V-D |
| Number of shelves (std./max.) | 2/6 | 2/6 | 2/6 | 2/6 |
