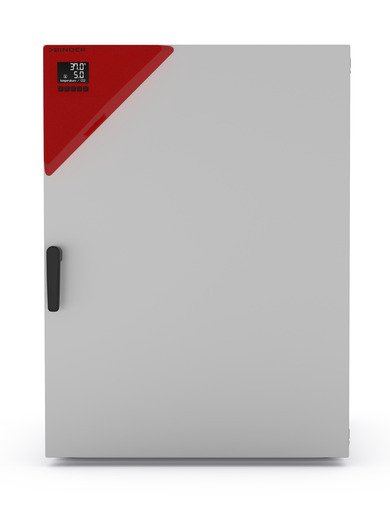

The durable and affordable CB-S series incubators are suitable for routine cell cultivation applications in the field of cell production, particularly in academic settings. They are contamination-proof due to 180°C hot air sterilization and reliably pH-stable thanks to the drift-free infrared CO₂ measurements conducted in real time.
+6°C above ambient temperature to +50°C
90 to 95% RH
0 to 20 vol.% CO₂
Ethernet, USB, zero-voltage alarm contact
| Designation | CBS260-230V | CBS260UL-120V |
| Article Number | 9640-0003 | 9640-0004 |
| Option model | Standard | Standard |
| Designation | CBS260-230V | CBS260UL-120V |
| Temperature range | +6 °C above ambient temperature to 50 °C | +6 °C above ambient temperature to 50 °C |
| Temperature uniformity at 37°C | 0.4 ± K | 0.4 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K |
| Recovery time after door was opened for 30 s at 37°C | 8 min | 8 min |
| Designation | CBS260-230V | CBS260UL-120V |
| Humidity range | 90 ...95 % RH | 90 ...95 % RH |
| Designation | CBS260-230V | CBS260UL-120V |
| CO₂ range | 0 ...20 Vol.-% CO2 | 0 ...20 Vol.-% CO2 |
| CO₂ measuring technology | IR | IR |
| CO₂ recovery time after door was opened for 30 s at 5 vol. % CO₂ | 5 min | 5 min |
| Designation | CBS260-230V | CBS260UL-120V |
| Rated Voltage | 200...230 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,5 kW | 1,5 kW |
| Unit fuse | 10,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation | CBS260-230V | CBS260UL-120V |
| Interior volume | 267 L | 267 L |
| Net weight of the unit (empty) | 116 kg | 116 kg |
| Load per rack | 10 kg | 10 kg |
| Permitted load | 40 kg | 40 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 50 mm | 50 mm |
| Designation | CBS260-230V | CBS260UL-120V |
| Width net | 740 mm | 740 mm |
| Height net | 1,020 mm | 1,020 mm |
| Depth net | 785 mm | 785 mm |
| Designation | CBS260-230V | CBS260UL-120V |
| Interior width | 620 mm | 620 mm |
| Interior height | 620 mm | 620 mm |
| Interior depth | 575 mm | 575 mm |
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
| Designation | CBS260-230V | CBS260UL-120V |
| Sound-pressure level | 41 dB(A) | 41 dB(A) |
| Energy consumption at 37°C | 55 Wh/h | 55 Wh/h |
| Designation | CBS260-230V | CBS260UL-120V |
| Number of shelves (std./max.) | 2/8 | 2/8 |
