Model CBF 260 | CO2 incubators with hot air sterilization and humidity regulation

Update Terakhir
Negara Asal
GERMANY
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

PRODUCT DESCRIPTION

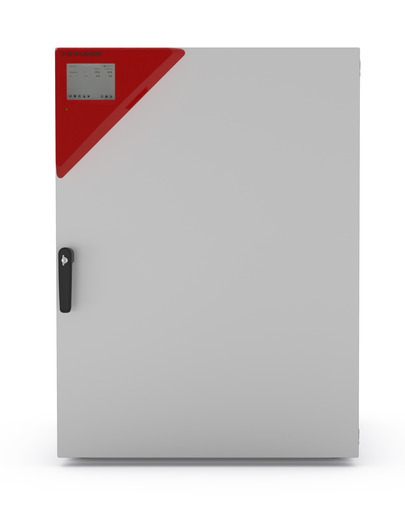

The BINDER CBF is the high-end CO₂ incubator with humidity control that is suitable for all sensitive incubation applications in GMP environments. It ensures consistent results including in cell-based assays with multiwell plates. This BINDER incubator is even suitable for complex cultivation experiments or individual environments with hypoxic conditions thanks to its comprehensive assortment of options and accessories.

IMPORTANT CHARACTERISTICS

  • Contamination-safe humidification system without water pan
  • Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
  • Hot-air sterilizable CO₂ sensor with single-beam infrared technology
  • Seamless inner chamber made of stainless steel with flanges as shelf support system
  • Fanless interior with Venturi CO₂ gas mixing nozzle
  • Intuitive touchscreen controller
  • Internal data logger, measured values can be read out in open format via USB
  • Troubleshooting system with visual and acoustic alarms

  • Interfaces:

    Ethernet, USB, zero-voltage alarm contact

  • Fail-safe CO₂ system for protecting the pH of cell cultures

Technical specifications

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Article Number 9640-0021 9640-0022 9640-0025 9640-0023 9640-0024 9640-0026
Option model Standard



 with O2 control 0.2–20% with O₂ control 0.2–20% and cell therapy compartmentalization Standard with O2 control 0.2–20% withO₂ control 0.2–20% and cell therapy compartmentalization

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Temperature range +6 °C above ambient temperature to 60 °C +6 °C above ambient temperature to 60 °C +6 °C above ambient temperature to 60 °C +6 °C above ambient temperature to 60 °C +6 °C above ambient temperature to 60 °C +6 °C above ambient temperature to 60 °C
Temperature uniformity at 37°C 0.4 ± K 0.4 ± K 0.4 ± K 0.4 ± K 0.4 ± K 0.4 ± K
Temperature fluctuation at 37°C 0.1 ± K 0.1 ± K 0.1 ± K 0.1 ± K 0.1 ± K 0.1 ± K
Recovery time after door was opened for 30 s at 37°C 6 min 6 min 6 min 6 min 6 min 6 min

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Humidity range 50...95 % RH 50...95 % RH 50...95 % RH 50...95 % RH 50...95 % RH 50...95 % RH

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
CO₂ range 0...20 Vol.-% CO2 0...20 Vol.-% CO2 0...20 Vol.-% CO2 0...20 Vol.-% CO2 0...20 Vol.-% CO2 0...20 Vol.-% CO2
CO₂ measuring technology IR IR IR IR IR IR
CO₂ recovery time after door was opened for 30 s at 5 vol. % CO₂ 5 min 5 min 5 min 5 min 5 min 5 min
Standard O₂ control range 0.2...20 Vol.-% O2 0.2...20 Vol.-% O2 0.2...20 Vol.-% O2 0.2...20 Vol.-% O2
O₂ control ranges with option: O₂ range 10...90 Vol.-% O2 10...90 Vol.-% O2 10...90 Vol.-% O2 10...90 Vol.-% O2
O₂ recovery time after door was opened for 30 s at 5 vol. % O₂ 15 min 15 min 15 min 15 min

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Rated Voltage 200...230 V 200...230 V 200...230 V 100...120 V 100...120 V 100...120 V
Power frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Nominal power 1,5 kW 1,5 kW 1,5 kW 1,5 kW 1,5 kW 1,5 kW
Unit fuse 10,0 A 10,0 A 10,0 A 16,0 A 16,0 A 16,0 A
Phase (Nominal voltage) 1~ 1~ 1~ 1~ 1~ 1~

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Interior volume 267 L  267 L  267 L  267 L  267 L  267 L
Net weight of the unit (empty) 126 kg 126 kg 126 kg 126 kg 126 kg 126 kg
Load per rack 10 kg 10 kg 10 kg 10 kg 10 kg 10 kg
Permitted load 40 kg 40 kg 40 kg 40 kg 40 kg 40 kg
Wall clearance back 100 mm  100 mm  100 mm  100 mm  100 mm  100 mm
Wall clearance sidewise 50 mm  50 mm  50 mm  50 mm  50 mm  50 mm

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Width net 740 mm 740 mm 740 mm 740 mm 740 mm 740 mm
Height net 1,020 mm 1,020 mm 1,020 mm 1,020 mm 1,020 mm 1,020 mm
Depth net 785 mm  785 mm  785 mm  785 mm  785 mm  785 mm

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Interior width 620 mm 620 mm 620 mm 620 mm 620 mm 620 mm
Interior height 750 mm 750 mm 750 mm 750 mm 750 mm 750 mm
Interior depth 575 mm  575 mm  575 mm  575 mm  575 mm  575 mm
Inner doors 1 1 8 1 1 8
Unit doors 1 1 1 1 1 1

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Sound-pressure level 41 dB(A) 41 dB(A) 41 dB(A) 41 dB(A) 41 dB(A) 41 dB(A)
Energy consumption at 37°C 65 Wh/h 65 Wh/h 65 Wh/h 65 Wh/h 65 Wh/h 65 Wh/h

Designation CBF260-230V CBF260-230V-O CBF260-230V-OZ CBF260UL-120V CBF260UL-120V-O CBF260UL-120V-OZ
Number of shelves (std./max.) 3/8 3/8 3/8 3/8 3/8 3/8
