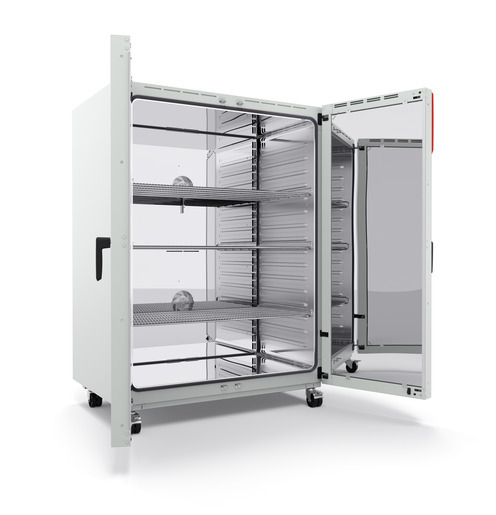

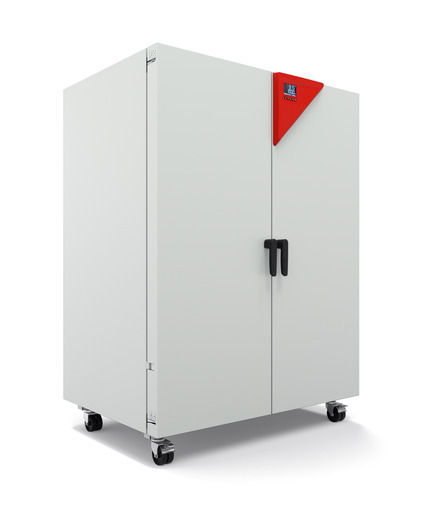

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating – even for chambers under full loads.
+12°C above ambient temperature up to +300°C
Ethernet
| Designation | FP720-400V | FP720UL-208V |
| Article Number | 9010-0366 | 9010-0370 |
| Option model | Standard | Standard |
| Designation | FP720-400V | FP720UL-208V |
| Temperature range | +12 °C above ambient temperature to 300 °C | +12 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 2.4 ± K | 2.4 ± K |
| Temperature fluctuation at 150°C | 0.6 ± K | 0.6 ± K |
| Heating up time to 150°C | 25 min | 25 min |
| Recovery time after door was opened for 30 s at 150°C | 6 min | 6 min |
| Designation | FP720-400V | FP720UL-208V |
| Air change rate at 100°C | 5 x/h | 5 x/h |
| Designation | FP720-400V | FP720UL-208V |
| Rated Voltage | 400 V | 208 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 4,5 kW | 4,5 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 3~ | 3~ |
| Designation | FP720-400V | FP720UL-208V |
| Interior volume | 741 L | 741 L |
| Net weight of the unit (empty) | 166 kg | 166 kg |
| Load per rack | 45 kg | 45 kg |
| Permitted load | 315 kg | 315 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
| Designation | FP720-400V | FP720UL-208V |

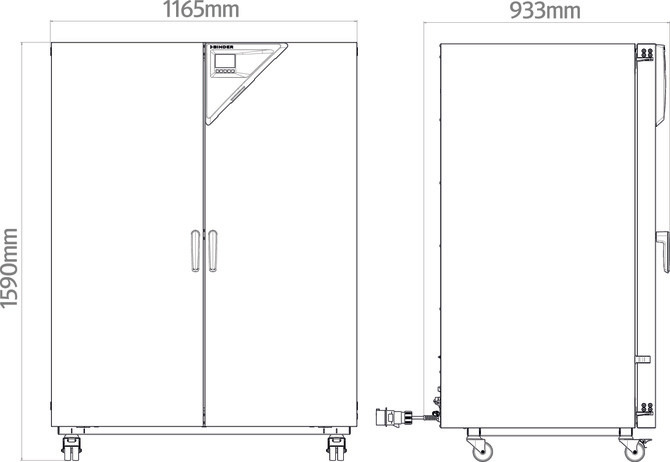

| Width net | 1,160 mm | 1,160 mm |
| Height net | 1,590 mm | 1,590 mm |
| Depth net | 816 mm | 816 mm |
| Designation | FP720-400V | FP720UL-208V |

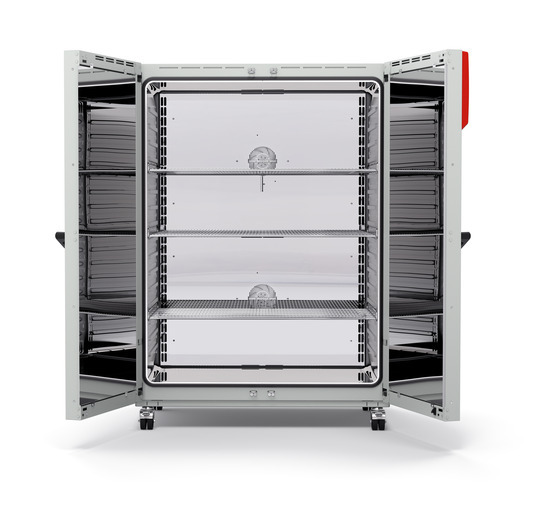

| Interior width | 1,000 mm | 1,000 mm |
| Interior height | 1,300 mm | 1,300 mm |
| Interior depth | 574 mm | 574 mm |
| Unit doors | 2 | 2 |
| Designation | FP720-400V | FP720UL-208V |
| Sound-pressure level | 43 dB(A) | 43 dB(A) |
| Energy consumption at 100°C | 510 Wh/h | 510 Wh/h |
| Energy consumption at 150°C | 880 Wh/h | 880 Wh/h |
| Designation | FP720-400V | FP720UL-208V |
| Number of shelves (std./max.) | 2/16 | 2/16 |
|
