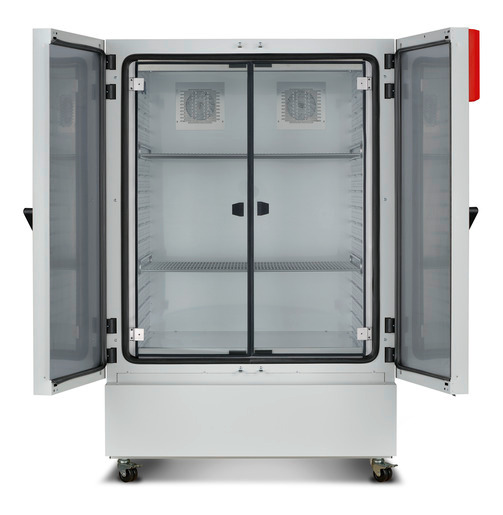

The BINDER KBF is the specialist for unconditionally reliable stability testing and precise maintenance of constant climate conditions. From programming to documentation, this constant climate chamber meets all critical requirements.
0 °C to +70 °C
10 % to 80 % RH
Ethernet
| Designation | KBF1020-230V | KBF1020-240V |
| Article Number | 9020-0326 | 9020-0327 |
| Option model | Standard | Standard |
| Designation | KBF1020-230V | KBF1020-240V |
| Max. heat compensation at 40°C | 600 W | 600 W |
| Designation | KBF1020-230V | KBF1020-240V |
| Temperature range with humidity | 10...70 °C | 10...70 °C |
| Humidity range | 10...80 % RH | 10...80 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.2 ± K | 0.2 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.2 ± K | 0.2 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K | 0.1 ± K |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 11 min | 11 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 12 min | 12 min |
| Designation | KBF1020-230V | KBF1020-240V |
| Rated Voltage | 200...230 V | 200...240 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 3,1 kW | 3,1 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation | KBF1020-230V | KBF1020-240V |
| Interior volume | 1,020 L | 1,020 L |
| Net weight of the unit (empty) | 379 kg | 379 kg |
| Load per rack | 45 kg | 45 kg |
| Permitted load | 150 kg | 150 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
| Designation | KBF1020-230V | KBF1020-240V |

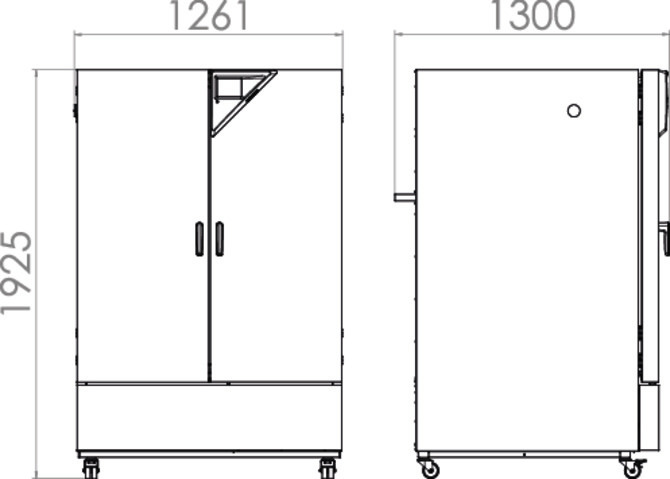

| Width net | 1,250 mm | 1,250 mm |
| Height net | 1,925 mm | 1,925 mm |
| Depth net | 1,145 mm | 1,145 mm |
| Designation | KBF1020-230V | KBF1020-240V |
| Interior width | 973 mm | 973 mm |
| Interior height | 1,250 mm | 1,250 mm |
| Interior depth | 836 mm | 836 mm |
| Inner doors | 2 | 2 |
| Unit doors | 2 | 2 |
| Designation | KBF1020-230V | KBF1020-240V |
| Sound-pressure level | 56 dB(A) | 56 dB(A) |
| Energy consumption at 40°C and 75% RH | 650 Wh/h | 650 Wh/h |
| Designation | KBF1020-230V | KBF1020-240V |
| Number of shelves (std./max.) | 2/15 | 2/15 |
|
