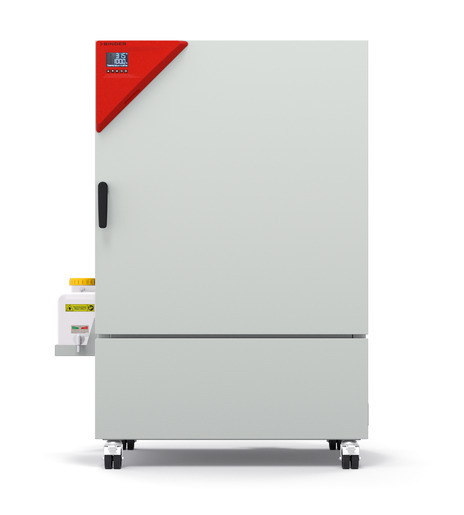

Model KBF-S ECO 240 | Constant climate chambers with environmentally friendly thermoelectric cooling

Update Terakhir
Negara Asal
GERMANY
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

PRODUCT DESCRIPTION

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KBF-S ECO climatic chamber is one of the most energy-efficient constant climate chambers on the market. The thermoelectric cooling technology means the KBF-S ECO series is also very quiet during operation.

IMPORTANT CHARACTERISTICS

  • Temperature range:

    0 °C to +70 °C (max. 28 °C under ambient temperature)

  • Humidity range:

    10% to 80% RH

  • APT.line™ preheating chamber technology
  • Independent water supply via tank
  • LCD to display temperature and humidity along with additional information and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Inner chamber made completely of stainless steel
  • 2 stainless steel racks, including shelf carrier
  • Access port with silicone plug Ø 30 mm, left

  • Computer interface:

    Ethernet

Technical specifications

Designation KBFSECO240-230V KBFSECO240UL-120V
Article Number 9020-0416 9020-0420
Option model Standard Standard

Designation KBFSECO240-230V KBFSECO240UL-120V
Temperature range (max. 28 °C under ambient temperature) 0...70 °C (max. 28 °C under ambient temperature) 0...70 °C
Max. heat compensation at 40°C 250 W 250 W

Designation KBFSECO240-230V KBFSECO240UL-120V
Temperature range with humidity (max. 28 °C under ambient temperature) 5...70 °C (max. 28 °C under ambient temperature) 5...70 °C
Humidity range 10...80 % RH 10...80 % RH
Temperature uniformity at 25°C and 60% RH 0.1 ± K 0.1 ± K
Temperature uniformity at 40°C and 75% RH 0.2 ± K 0.2 ± K
Temperature fluctuation at 25°C and 60% RH 0.1 ± K 0.1 ± K
Temperature fluctuation at 40°C and 75% RH 0.1 ± K 0.1 ± K
Recovery time after door was opened for 30 s at 25°C and 60% RH 5 min 5 min
Recovery time after door was opened for 30 s at 40°C and 75% RH 11 min 11 min

Designation KBFSECO240-230V KBFSECO240UL-120V
Rated Voltage 200...230 V 100...120 V
Power frequency 50/60 Hz 50/60 Hz
Nominal power 0,8 kW 0,8 kW
Unit fuse 16,0 A 16,0 A
Phase (Nominal voltage) 1~ 1~

Designation KBFSECO240-230V KBFSECO240UL-120V
Interior volume 247 L 247 L
Net weight of the unit (empty) 146 kg 146 kg
Load per rack 30 kg 30 kg
Permitted load 100 kg 100 kg
Wall clearance back 100 mm 100 mm
Wall clearance sidewise 180 kg 180 kg

Designation KBFSECO240-230V KBFSECO240UL-120V
Width net 932 mm 932 mm
Height net 1,461 mm 1,461 mm
Depth net 796 mm 796 mm

Designation KBFSECO240-230V KBFSECO240UL-120V
Interior width 650 mm 650 mm
Interior height 785 mm 785 mm
Interior depth 485 mm 485 mm
Unit doors 1 1

Designation KBFSECO240-230V KBFSECO240UL-120V
Sound-pressure level 46 dB(A) 46 dB(A)
Energy consumption at 25°C and 60% RH 55 Wh/h 55 Wh/h
Energy consumption at 40°C and 75% RH 85 Wh/h 85 Wh/h

Designation KBFSECO240-230V KBFSECO240UL-120V
Number of shelves (std./max.) 2/9 2/9

'
'
'
