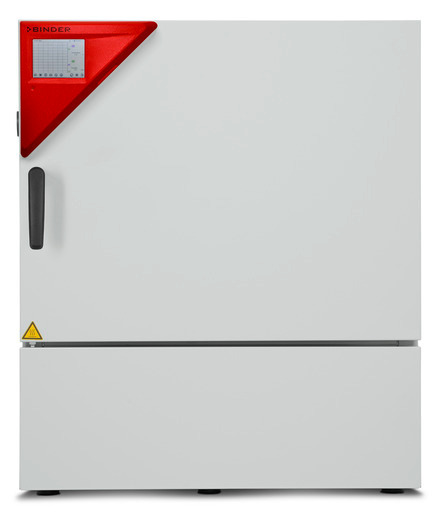

The BINDER KMF ensures absolutely constant test conditions throughout the testing area. A big advantage of this constant climate chamber is its low space requirement and flexibility in terms of water supply. The wide temperature and humidity range make this constant climate chamber ideally suited for stress testing series.
-10 °C to +100 °C
10 % RH to 98 % RH
Ethernet
| Designation | KMF115-230V | KMF115-240V |
| Article Number | 9020-0341 | 9020-0342 |
| Option model | Standard | Standard |
| Designation | KMF115-230V | KMF115-240V |
| Temperature range | -10...100 °C | -10...100 °C |
| Average heating-up rate according to IEC 60068-3-5 | 1.3 K/min | 1.3 K/min |
| Cooling down time from 22°C to -80°C | 240 min | 240 min |
| Average cooling down time according to IEC 60068-3-5 | 0.5 K/min | 0.5 K/min |
| Designation | KMF115-230V | KMF115-240V |

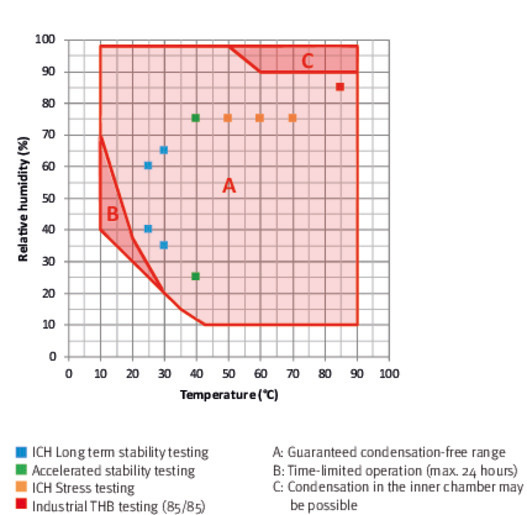

| Temperature range with humidity | 10...90 °C | 10...90 °C |
| Humidity range | 10...98 % RH | 10...98 % RH |
| Temperature uniformity with humidity dependent on set value | 0.2...1.0 ± K | 0.2...1.0 ± K |
| Temperature fluctuation with humidity dependent on set value | 0.1...0.3 ± K | 0.1...0.3 ± K |
| Humidity fluctuation with humidity dependent on set value | ≤2,5 ± % r.F. | ≤2,5 ± % r.F. |
| Designation | KMF115-230V | KMF115-240V |
| Rated Voltage | 200...230 V | 200...240 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 2 kW | 2 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation | KMF115-230V | KMF115-240V |
| Interior volume | 102 L | 102 L |
| Net weight of the unit (empty) | 128 kg | 128 kg |
| Load per rack | 30 kg | 30 kg |
| Permitted load | 100 kg | 100 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
| Designation | KMF115-230V | KMF115-240V |

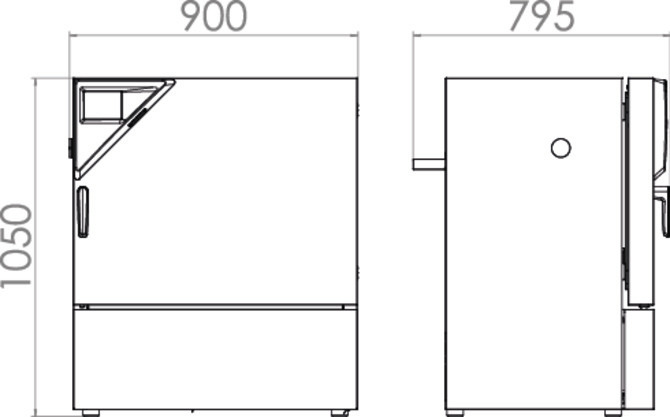

| Width net | 880 mm | 880 mm |
| Height net | 1,050 mm | 1,050 mm |
| Depth net | 650 mm | 650 mm |
| Designation | KMF115-230V | KMF115-240V |
| Interior width | 600 mm | 600 mm |
| Interior height | 483 mm | 483 mm |
| Interior depth | 351 mm | 351 mm |
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
| Designation | KMF115-230V | KMF115-240V |
| Sound-pressure level | 52 dB(A) | 52 dB(A) |
| Energy consumption at 85°C and 85% RH | 570 Wh/h | 570 Wh/h |
| Designation | KMF115-230V | KMF115-240V |
| Number of shelves (std./max.) | 1/5 | 1/5 |
'
'
'
