PRODUCT DESCRIPTION

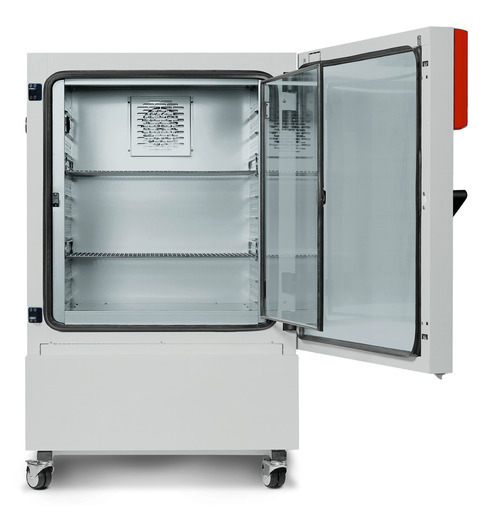

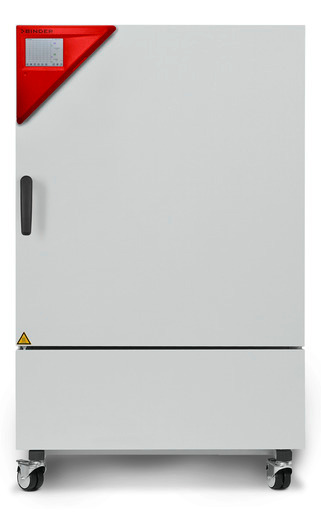

The BINDER KMF ensures absolutely constant test conditions throughout the testing area. A big advantage of this constant climate chamber is its low space requirement and flexibility in terms of water supply. The wide temperature and humidity range make this constant climate chamber ideally suited for stress testing series.

IMPORTANT CHARACTERISTICS

  • Temperature range:

    -10 °C to +100 °C

  • Humidity range:

    10 % RH to 98 % RH

  • APT.line™ preheating chamber technology
  • Humidity regulation with capacitive humidity sensor and vapor humidification
  • Inner chamber made of stainless steel
  • BINDER Multi Management Software APT-COM™ Basic Edition
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Tight-sealing inner door made of safety glass (ESG)
  • Avoidance of glass corrosion by special TIMELESS coating
  • 1 stainless steel rack
  • Access port with silicone plug, 30 mm, left
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm

  • Computer interface:

    Ethernet

  • Door heating

Technical specifications

Designation KMF240-230V KMF240-240V
Article Number 9020-0343 9020-0344
Option model Standard Standard

Designation KMF240-230V KMF240-240V
Temperature range -10...100 °C -10...100 °C
Average heating-up rate according to IEC 60068-3-5 0.8 K/min 0.8 K/min
Average cooling down time according to IEC 60068-3-5 0.4 K/min 0.4 K/min

Designation KMF240-230V KMF240-240V

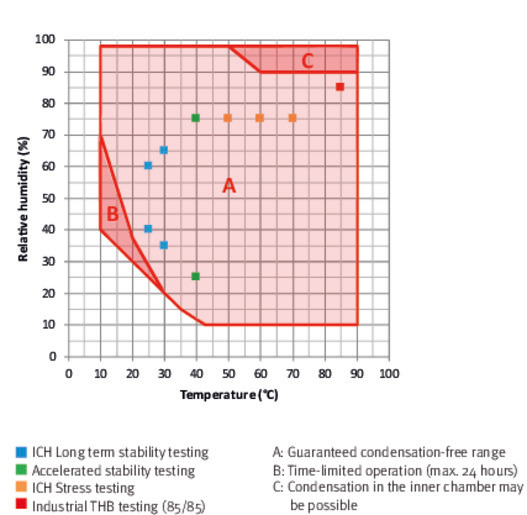

Temperature range with humidity 10...90 °C 10...90 °C
Humidity range 10...98 % RH 10...98 % RH
Temperature uniformity with humidity dependent on set value 0.1...1.0 ± K 0.1...1.0 ± K
Temperature fluctuation with humidity dependent on set value 0.1...0.3 ± K 0.1...0.3 ± K
Humidity fluctuation with humidity dependent on set value ≤2 ± % r.F. ≤2 ± % r.F.

Designation KMF240-230V KMF240-240V
Rated Voltage 200...230 V 200...240 V
Power frequency 50/60 Hz 50/60 Hz
Nominal power 2,1 kW 2,1 kW
Unit fuse 16,0 A 16,0 A
Phase (Nominal voltage) 1~ 1~

Designation KMF240-230V KMF240-240V
Interior volume 247 L 247 L
Net weight of the unit (empty) 189 kg 189 kg
Load per rack 30 kg 30 kg
Permitted load 100 kg 100 kg
Wall clearance back 100 mm 100 mm
Wall clearance sidewise 100 mm 100 mm

Designation KMF240-230V KMF240-240V
Width net 930 mm 930 mm
Height net 1,465 mm 1,465 mm
Depth net 800 mm 800 mm

Designation KMF240-230V KMF240-240V
Interior width 650 mm 650 mm
Interior height 785 mm 785 mm
Interior depth 485 mm 485 mm
Inner doors 1 1
Unit doors 1 1

Designation KMF240-230V KMF240-240V
Sound-pressure level 52 dB(A) 52 dB(A)
Energy consumption at 85°C and 85% RH 570 Wh/h 570 Wh/h

Designation KMF240-230V KMF240-240V
Number of shelves (std./max.) 1/9 1/9

'
'
'
