Model LIT MK 720 | Battery test chambers with safety equipment for rapid temperature changes

Update Terakhir
Negara Asal
GERMANY
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

PRODUCT DESCRIPTION

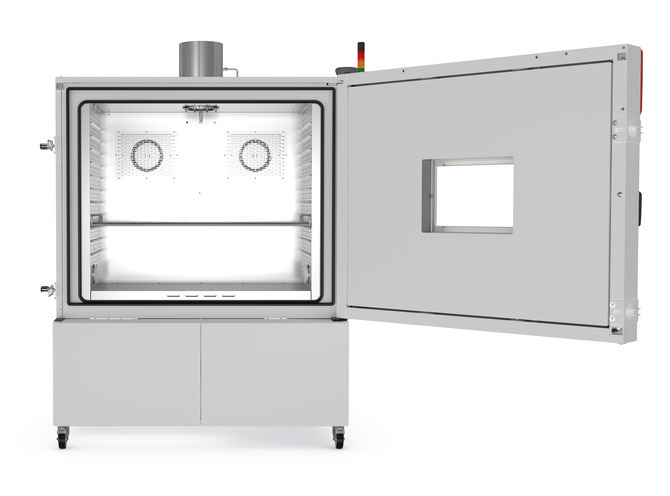

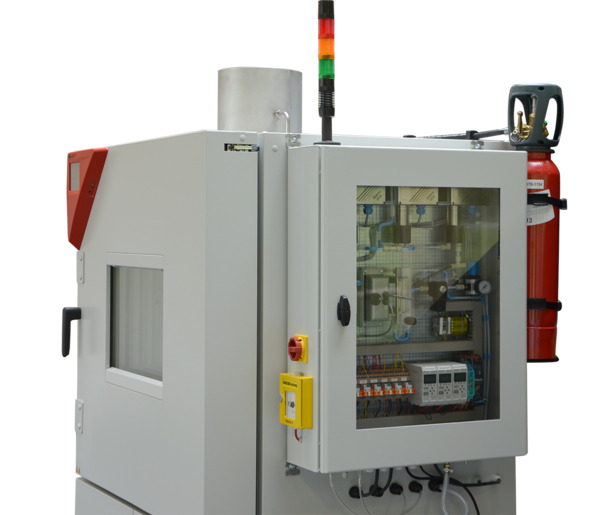

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.

IMPORTANT CHARACTERISTICS

  • Temperature range:

    -40°C to +110°C

  • Class 2 independent temperature safety device when temperature is set to +120°C

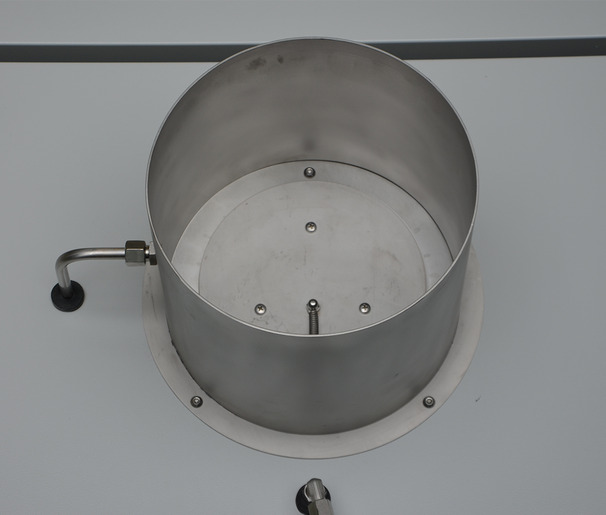

  • Reversible stainless steel pressure relief flap installed in the middle on top of the unit
  • Enhanced door-locking mechanism with reinforced brackets

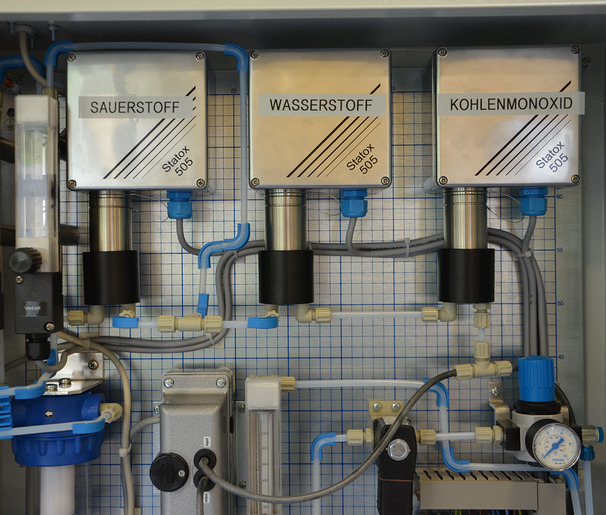

  • Monitoring of CO, H2, O2, and temperature in testing area atmosphere
  • Inertization equipment

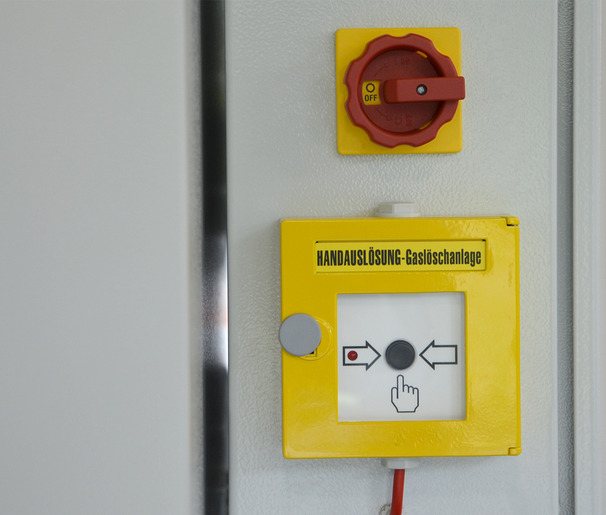

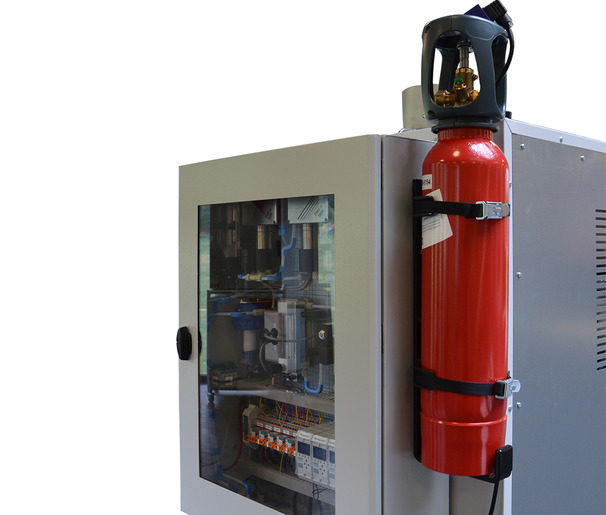

  • CO2 fire suppression
  • APT.line™ preheating chamber technology
  • Programmable condensation protection for samples
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COM™ basic edition
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB

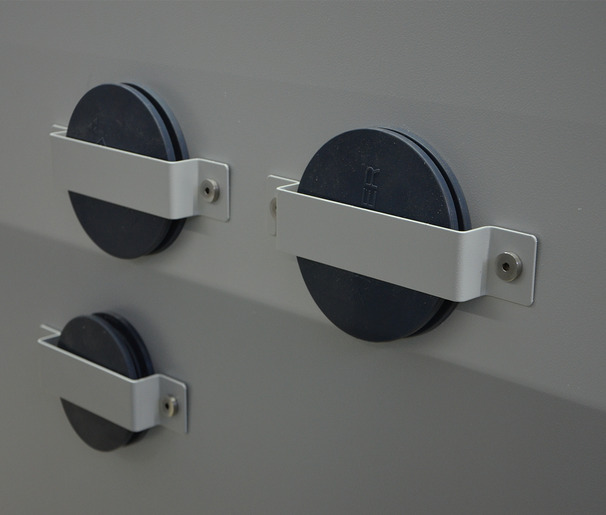

  • 2 access ports with silicone plugs, 80 mm, left and right
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

  • Computer interface:

    Ethernet

  • 1 stainless steel rack, can be freely positioned
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit
  • TÜV SÜD confirms that the LIT MK 240 and LIT MK 720 chambers are suitable for EUCAR level 6

Technical specifications

Designation LITMK720-400V LITMK720-480V-C
Article Number 9020-0403 9020-0405
Option model Standard with voltage and frequency converter

Designation LITMK720-400V LITMK720-480V-C
Temperature range -40...110 °C -40...110 °C
Temperature uniformity dependent on set value 0.3...2.0 ± K 0.3...2.0 ± K
Temperature fluctuation dependent on set value 0.1...0.5 ± K 0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-5 4.0 K/min 4.0 K/min
Cooling down time from 110°C to -40°C 100 min 100 min
Average cooling down time according to IEC 60068-3-5 3.4 K/min 3.4 K/min

Designation LITMK720-400V LITMK720-480V-C
Rated Voltage 400 V 480 V
Power frequency 50 Hz 60 Hz
Nominal power 8,7 kW 8,7 kW
Unit fuse 16,0 A 16,0 A
Phase (Nominal voltage) 3~ 3~

Designation LITMK720-400V LITMK720-480V-C
Interior volume 734 L 734 L
Net weight of the unit (empty) 584 kg  584 kg
Load per rack 20 kg 20 kg
Permitted load 160 kg 160 kg
Wall clearance back 300 mm 300 mm
Wall clearance sidewise 200 mm 200 mm

Designation LITMK720-400V LITMK720-480V-C
Width net 1,794 mm 1,794 mm
Height net 2,005 mm 2,005 mm
Depth net 1,186 mm 1,186 mm

Designation LITMK720-400V LITMK720-480V-C
Interior width 1,200 mm 1,200 mm
Interior height 1,020 mm 1,020 mm
Interior depth 600 mm 600 mm
Unit doors 1 1

Designation LITMK720-400V LITMK720-480V-C
Sound-pressure level 65 dB(A) 67 dB(A)
Energy consumption at 20°C 1,900 Wh/h 1,900 Wh/h

Designation LITMK720-400V LITMK720-480V-C
Number of shelves (std./max.) 1/11 1/11

'
'
'
