With a maximum of +300 °C and various programming options the M series material test chambers are ideal for material and aging tests. With a high air flow, the powerful fans ensure rapid heating.
+14°C above ambient temperature up to +300°C
Ethernet
| Designation | M260-400V |
| Article Number | 9010-0373 |
| Option model | Standard |
| Designation | M260-400V |
| Temperature range | +14 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 1.5 ± K |
| Temperature fluctuation at 150°C | 0.4 ± K |
| Heating up time to 150°C | 13 min |
| Recovery time after door was opened for 30 s at 150°C | 6 min |
| Designation | M260-400V |
| Air change rate at 100°C | 65 x/h |
| Designation | M260-400V |
| Rated Voltage | 400 V |
| Power frequency | 50/60 Hz |
| Nominal power | 3,1 kW |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 3~ |
| Designation | M260-400V |
| Interior volume | 256 L |
| Net weight of the unit (empty) | 86 kg |
| Load per rack | 40 kg |
| Permitted load | 270 kg |
| Wall clearance back | 160 mm |
| Wall clearance sidewise | 100 mm |
| Designation | M260-400V |

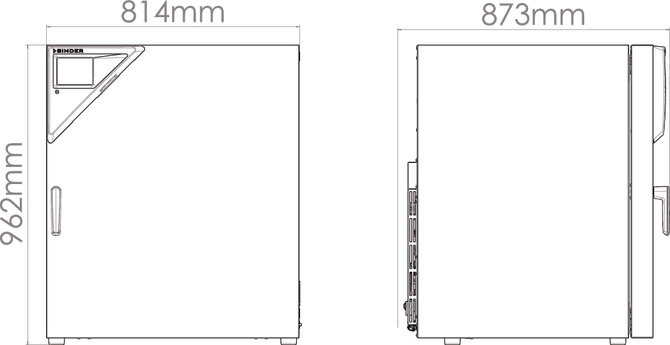

| Width net | 810 mm |
| Height net | 962 mm |
| Depth net | 786 mm |
| Designation | M260-400V |
| Interior width | 650 mm |
| Interior height | 780 mm |
| Interior depth | 505 mm |
| Unit doors | 1 |
| Designation | M260-400V |
| Sound-pressure level | 46 dB(A) |
| Energy consumption at 100°C | 370 Wh/h |
| Energy consumption at 150°C | 560 Wh/h |
| Designation | M260-400V |
| Number of shelves (std./max.) | 2/8 |
|
