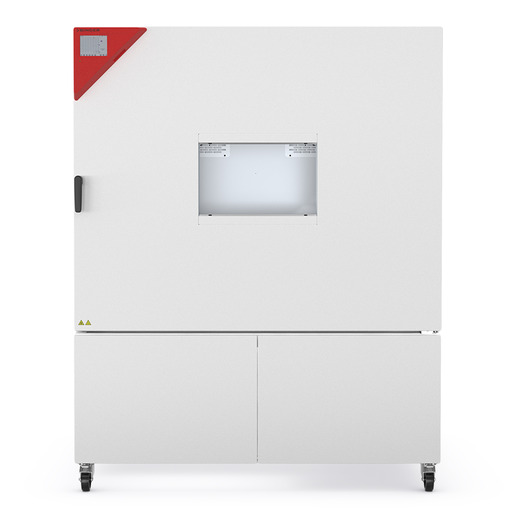

A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
-40 °C to +180 °C
10 % to 98 % RH
80 mm, left and right
Ethernet
| Designation | MKF1020-400V | MKF1020-480V-C |
| Article Number | 9020-0409 | 9020-0448 |
| Option model | Standard | with voltage and frequency converter |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Temperature range | -40...180 °C | -40...180 °C |
| Temperature uniformity dependent on set value | 0.1...1.8 ± K | 0.1...1.8 ± K |
| Temperature fluctuation dependent on set value | 0.1...0.5 ± K | 0.1...0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5.5 K/min | 5.5 K/min |
| Cooling down time from 180°C to -40°C | 120 min | 120 min |
| Average cooling down time according to IEC 60068-3-5 | 5.0 K/min | 5.0 K/min |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Humidity range | 10...98 % RH | 10...98 % RH |
| Temperature fluctuation with humidity dependent on set value | 5...94 °C | 5...94 °C |
| Max. heat compensation at 25°C and 90% RH | 1,500 W | 1,500 W |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Rated Voltage | 400 V | 480 V |
| Power frequency | 50 Hz | 60 Hz |
| Nominal power | 12,5 kW | 12,5 kW |
| Unit fuse | 32,0 A | 32,0 A |
| Phase (Nominal voltage) | 3~ | 3~ |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Interior volume | 991 L | 991 L |
| Net weight of the unit (empty) | 636 kg | 636 kg |
| Load per rack | 40 kg | 40 kg |
| Permitted load | 200 kg | 200 kg |
| Wall clearance back | 300 mm | 300 mm |
| Wall clearance sidewise | 200 mm | 200 mm |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Width net | 1,580 mm | 1,580 mm |
| Height net | 2,005 mm | 2,005 mm |
| Depth net | 1,480 mm | 1,480 mm |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Interior width | 1,200 mm | 1,200 mm |
| Interior height | 1,020 mm | 1,020 mm |
| Interior depth | 810 mm | 810 mm |
| Unit doors | 1 | 1 |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Sound-pressure level | 69 dB(A) | 69 dB(A) |
| Energy consumption at 25°C and 60% RH | 2,200 Wh/h | 2,200 Wh/h |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Number of shelves (std./max.) | 1/11 | 1/11 |
'
'
'
