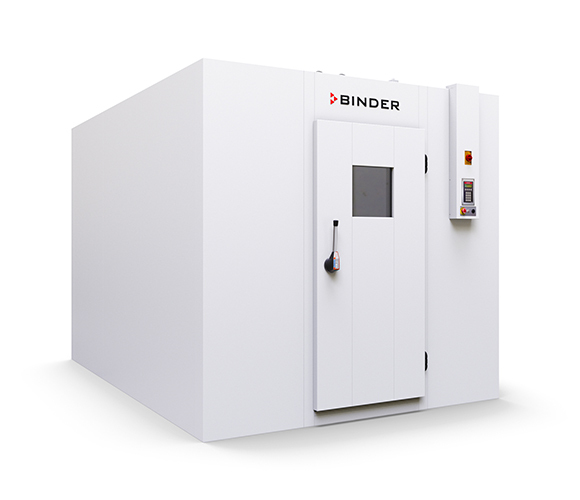

The walk-in-chambers offer a wide range of features and benefits to perfectly meet requirements in stability testing. Perfect test conditions are maintained in a wide range of temperature from 10°C to 50°C and relative humidity of 20% to 90% RH.
Galvanized sheet steel, polyester coated, white, similar to RAL 9010, interior surfaces in stainless steel,4 inch / 100 mm PU foam U value
0,21W/m2K
Floor overlay is chrome-nickel steel, pattern-rolled 5WL
50.000 N/m2
| Designation | WIC3-230V | WIC3-208V | WIC3C-208V |
| Article Number | 9800-0013 | 9800-0007 | 9800-0008 |
| Option model | Standard | Standard | with conditioner on ceiling |
| Designation | WIC3-230V | WIC3-208V | WIC3C-208V |
| Temperature range with humidity | 10...50 °C | 10...50 °C | 10...50 °C |
| Humidity range | 20...90 % RH | 20...90 % RH | 20...90 % RH |
| Temperature uniformity at 25°C and 60% RH | 1.5 ± K | 1.5 ± K | 1.5 ± K |
| Temperature uniformity at 40°C and 75% RH | 1.5 ± K | 1.5 ± K | 1.5 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.5 ± K | 0.5 ± K | 0.5 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.5 ± K | 0.5 ± K | 0.5 ± K |
| Designation | WIC3-230V | WIC3-208V | WIC3C-208V |
| Rated Voltage | 230 V | 208...230 V | 208...230 V |
| Power frequency | 50 Hz | 60 Hz | 60 Hz |
| Nominal power | 2,7 kW | 2,7 kW | 2,7 kW |
| Unit fuse | 20,0 A | 20,0 A | 20,0 A |
| Phase (Nominal voltage) | 1~ | 1~ | 1~ |
| Designation | WIC3-230V | WIC3-208V | WIC3C-208V |
| Interior volume | 24,516 L | 24,516 L | 24,516 L |
| Net weight of the unit (empty) | 1,186 kg | 1,186 kg | 1,186 kg |
| Designation | WIC3-230V | WIC3-208V | WIC3C-208V |
| Width net | 2,600 mm | 2,600 mm | 2,600 mm |
| Height net | 2,470 mm | 2,470 mm | 2,470 mm |
| Depth net | 4,700 mm | 4,700 mm | 4,700 mm |
| Designation | WIC3-230V | WIC3-208V | WIC3C-208V |
| Interior width | 2,400 mm | 2,400 mm | 2,400 mm |
| Interior height | 2,270 mm | 2,270 mm | 2,270 mm |
| Interior depth | 4,500 mm | 4,500 mm | 4,500 mm |
| Unit doors | 1 | 1 | 1 |
| Designation | WIC3-230V | WIC3-208V | WIC3C-208V |
| Energy consumption at 40°C and 75% RH | 1,150 Wh/h | 1,150 Wh/h | 1,150 Wh/h |
'
'
'
