JAN code : 4974425019045
Calibration : Not available
JCSS Accredited Calibration : Not available
Suitable for soup of concentration between 0 to 56% and salt water of concentration between 0 to 28%.

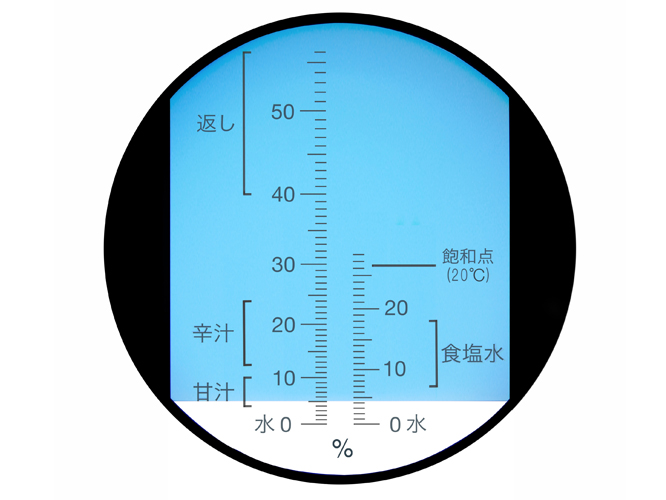

■ Easily-readable scale adopted
■ A portable light-weight body
■ Caution
This instrument measures liquid content by determining the refractive index of the liquid, based on the principle of total internal reflection. Therefore it cannot be used for non-translucent liquid such as milk.
| Cat. No. | 0190-04 | |

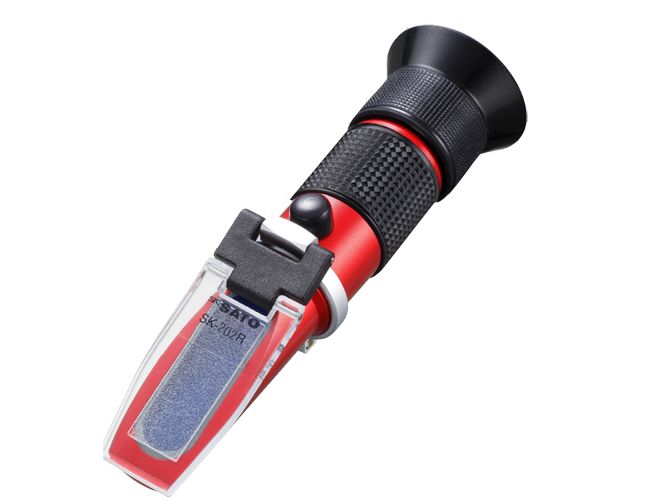

| Product name | Hand Held Refractometer for Noodle Soup | |
| Model name | SK-202R | |
| Measuring range | Soup concentration | 0 to 56% |
| Salt concentration | 0 to 28% | |
| Minimum scale | Soup concentration | 1% |
| Salt concentration | 1% | |
| Temperature compensation | N/A | |
| Materials | Main body | Aluminum alloy |
| Prism | Optical glass | |
| Cover plate | Polycarbonate | |
| Grip, eyepiece | Synthetic rubber | |
| Dimensions | 29 mm diameter of grip x 145 mm (L) | |
| Weight | 100 g | |
| Measurable liquid | Noodle soup, salt water | |

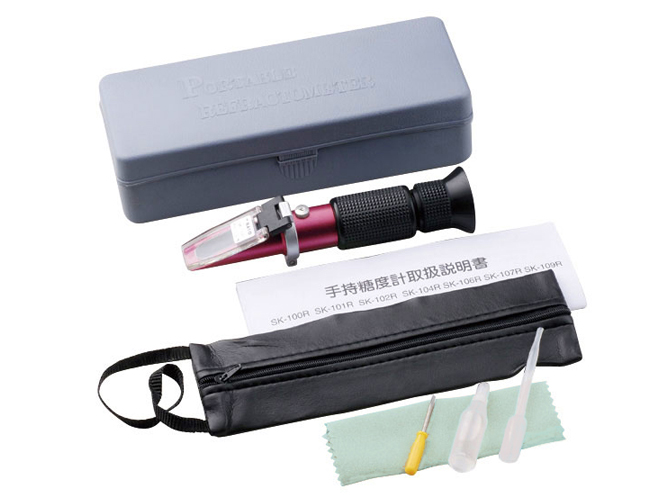

| Standard accessories | Dropper x1, screwdriver x1, cloth for wiping x1, carrying case x1, distilled water bottle x1, instruction manual | |
‘
‘
‘
