VB-100P
JAN code : 4974425220908
Calibration : Not available
JCSS Accredited Calibration : Not available
VB-100P is a vapor-filled remote sensing dial thermometer with 100-mm dial, and 3 different measuring ranges selectable from our inventory. The sensing stem is screwless and allows immersion in liquid. This model is of 0 to 100°C.

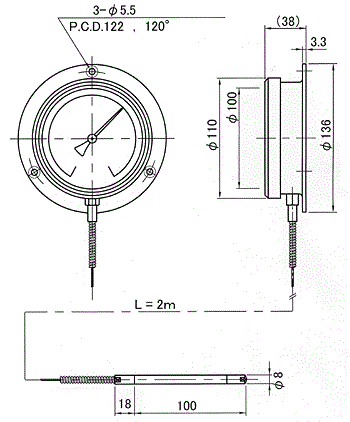

■ Drawing
| Cat. No. | 4300-01 |
| Product name | Vapor Pressure Type Remote Sensing Dial Thermometer, 0 to 100°C |
| Model name | VB-100P |
| Measuring range | 0 to 100°C |
| Accuracy | ±2°C (30 to 100°C) ±5°C (0 to 30°C) |
| Minimum scale | 2 or 5°C, uneven scales |
| Waterproofness | IPX1 drip-proof |
| Materials | Body: Nylon 6 + glass 30% Window: Glass (available to be changed with acrylic glass) Lead wire, sensing stem: Nickel-plated CuTi |
| Dimensions | Dial case/window: 110 mm/100 mm diameter Sensing stem: 8 mm dia. x 100 mm (L) Lead wire: 2 m (L) |
| Screw | N/A (immersion type) |
‘
‘
‘
