Order No. 1-4469-02 Model No. HHP-330SQ JAN Code 4580110235623

Update Terakhir

Negara Asal

Jepang

Pembelian minimum

1

Harga

Nego

Kategori

AS ONE

Minta Penawaran

Sharing:

Deskripsi produk

Features

Excellent temperature distribution accuracy with planar etching heater.
Three patterns of timer settings are possible.
You can see the set temperature and the current temperature at a glance in the two-stage display.
For CVD testing of wafers.

Spec

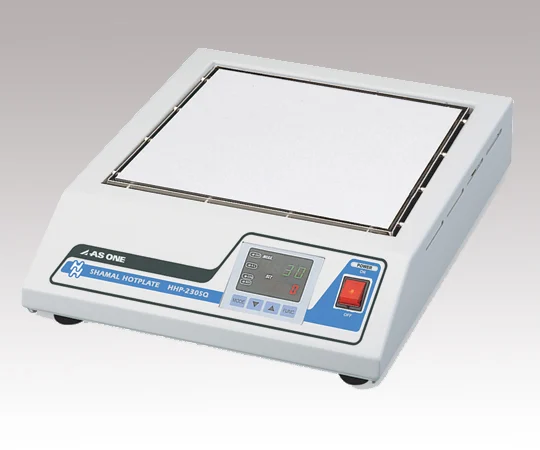

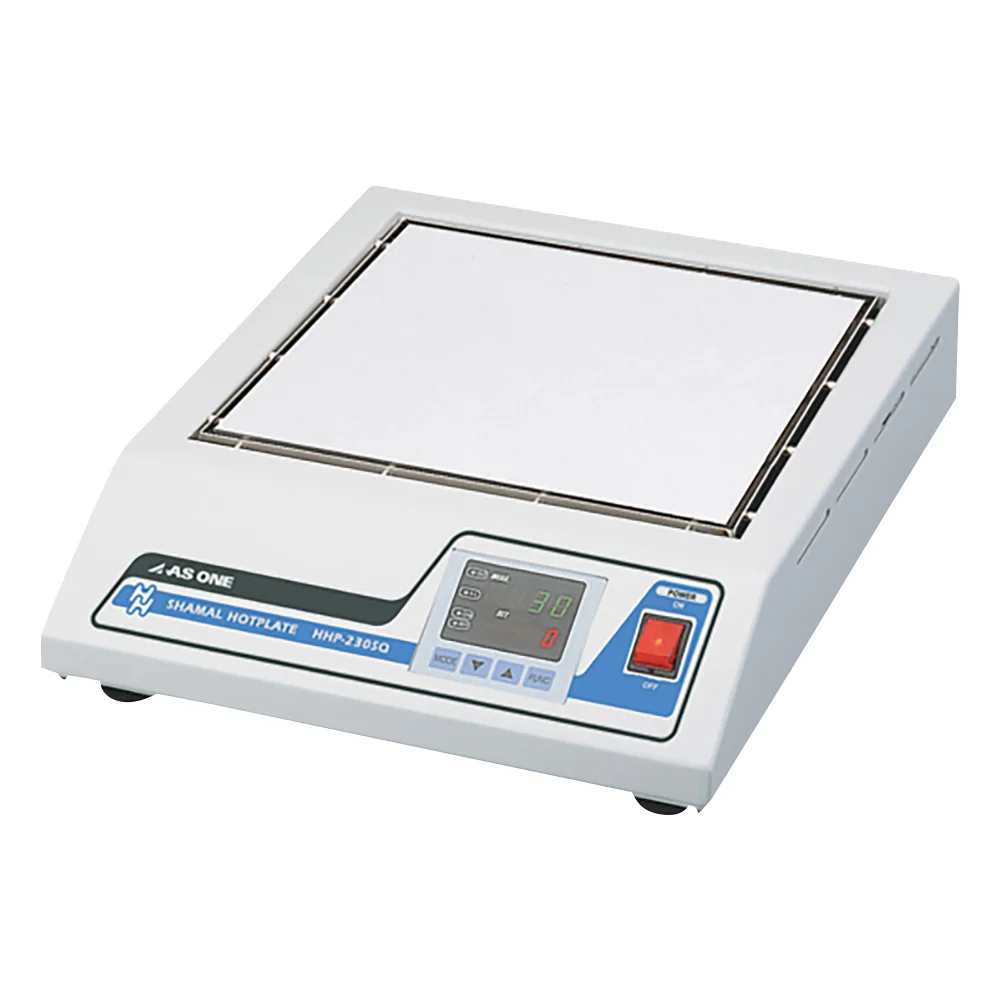

Model number: HHP-330SQ
Plate size: 330 x 330mm
Plate material: Aluminum (surface sulfuric acid anodic oxide processing)
Setting temperature: 40 - 400℃
Temperature distribution accuracy: +/- 1℃
Temperature elevation rate (when ambient temperature is 25℃): 200℃/15 minutes, 300℃/20 minutes, 400℃/40 minutes
Temperature sensor: K class thermocouple
Main unit size: 410 x 490 x 90mm
Power cord length: 2m (3P plug)
Power consumption: 3.2W
Weight: 14kg
Power supply: AC200V
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]

‘
‘
‘
