Material #: 51343102
Origin of Precision

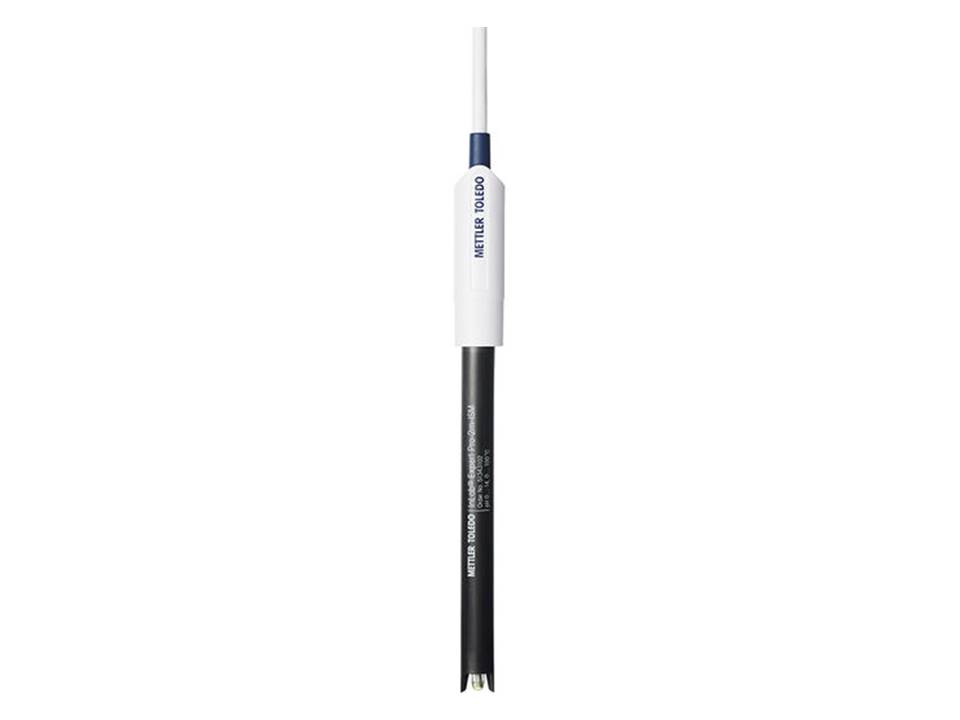

A combination pH electrode with integrated temperature probe, PEEK shaft, 2 m fixed cable and ISM. Designed for general applications in the lab and outdoor; robust and maintenance-free.
| Measuring range | pH 0 – 14 |
| Temperature Range | 0 °C – 100 °C |
| Type of junction | Open junction |
| Shaft Material | PEEK |
| Sensor Type | Combined electrode |
| Shaft length | 120 mm |
| Shaft Diameter | 12 mm |
| Cable | 2 m |
| Parameter | pH |
| Reference System | ARGENTHAL™ with Ag+-trap |
| Reference electrolyte | XEROLYT® Polymer |
| Membrane glass | U |
| Membrane resistance (25°C) | < 250 MΩ |
| Intelligent Sensor Management (ISM®) | Yes |
| Temperature Probe | NTC 30 kΩ |
| Low Maintenance | Yes |
| Signal type | Analog |
| Cable Included | Yes |
| Connector on Sensor | Fixed 2 m cable |
| Connector to Meter | BNC/RCA (Cinch) |
| Minimum Sample Volume uL | 20 mL |
| Sample Composition | Aqueous |
| Sample Consistency | Liquid,Sludge / slurry / suspension |
| Sample Temperature | 0°-100°C |
| Sample Volume | >= 20 mL |
| Sensor Characteristics | Automatic Sensor Recognition,Temperature Probe,Calibration History Stored,Mechanically robust |
| Typical Samples | Water,Beer, Suspended soil |
| Country of origin | CH |
| Customs tariff number | 9027905695 |
