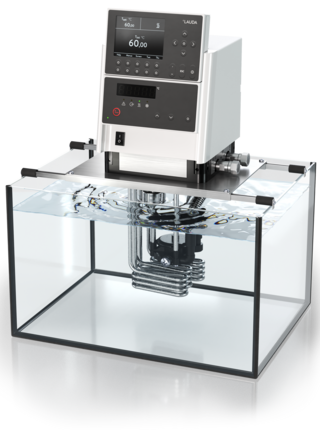

Proline Bridge thermostats PROLINE PBD C no.: L001545

Update Terakhir
Negara Asal
GERMANY
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Order no.: L001545

LAUDA Proline bridge thermostats are available with two different control units. The master version is designed for all applications in which the parameters are not changed very often. The removable Command operating unit offers a graphic LCD screen for high operating convenience and optimal functionality.

Features

  • Bridge thermostatic circulator with microprocessor technology and many functions for programming and information for extra deep baths
  • Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature
  • SelfCheck Assistant for system diagnosis
  • Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
  • Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)
  • Pump connectors on the side and in the back, installed bypass
  • Back-lit graphic LCD display with high resolution and different display modes
  • Command console can be detached and used as remote control
  • Fully electronic continuous controller with PID action for internal & external control
  • LAUDA Varioflex pump (pressure) with 8 selectable levels
  • Programmer with 150 temperature/time segments that can be separated into 5 programs
  • Telescopic rods for bath widths up to 550 mm
  • Additional green LED display for temperature
  • EasyUse system for simple operation of the whole unit
  • PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
  • Optically decoupled RS 232/485 interface integrated as a standard
  • Timer function for switching on the thermostat, entering the standyby mode or running of programs

Working range

Min. working temperature

30 °C

Max. working temperature

300 °C

Temperature stability

0.01 ± K

Technical data (according to DIN 12876)

Working temperature range : 30 ... 300 °C
Working temperature range with water cooling : 20 ... 300 °C
Operating temperature range : -30 ... 300 °C
Ambient temperature range : 5 ... 40 °C
Temperature stability : 0.01 ± K
Heater power max. : 3.6 kW
Current consumption : 16 A
Max. power consumption : 3.7 kW
Max. discharge pressure : 1,1 bar
Max. pump flow pressure : 32 L/min
Dimensions (WxDxH) : 320 x 185 x 576 mm
Weight : 8 kg
Power supply : 230 V; 50/60 Hz
Power plug : Power cord with angled plug (CEE7/7)
'
'
'
