Order no.: L001544

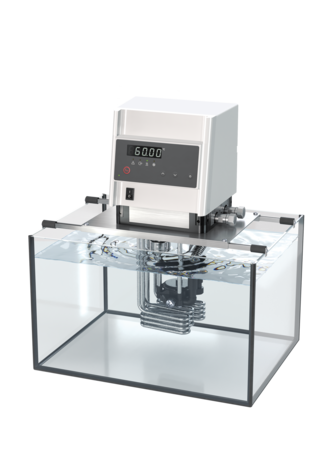

LAUDA Proline bridge thermostats are available with two different control units. The master version is designed for all applications in which the parameters are not changed very often. The removable Command operating unit offers a graphic LCD screen for high operating convenience and optimal functionality.
Working range
Min. working temperature
30 °C
Max. working temperature
300 °C
Temperature stability
0.01 ± K
Technical data (according to DIN 12876)
Working temperature range : 30 ... 300 °C
Working temperature range with water cooling : 20 ... 300 °C
Operating temperature range : -30 ... 300 °C
Ambient temperature range : 5 ... 40 °C
Temperature stability : 0.01 ± K
Heater power max. : 3.6 kW
Current consumption : 16 A
Max. power consumption : 3.7 kW
Max. discharge pressure : 1,1 bar
Max. pump flow pressure : 32 L/min
Dimensions (WxDxH) : 320 x 185 x 400 mm
Power supply : 230 V; 50/60 Hz
Power plug : Power cord with angled plug (CEE7/7)
'
'
'
