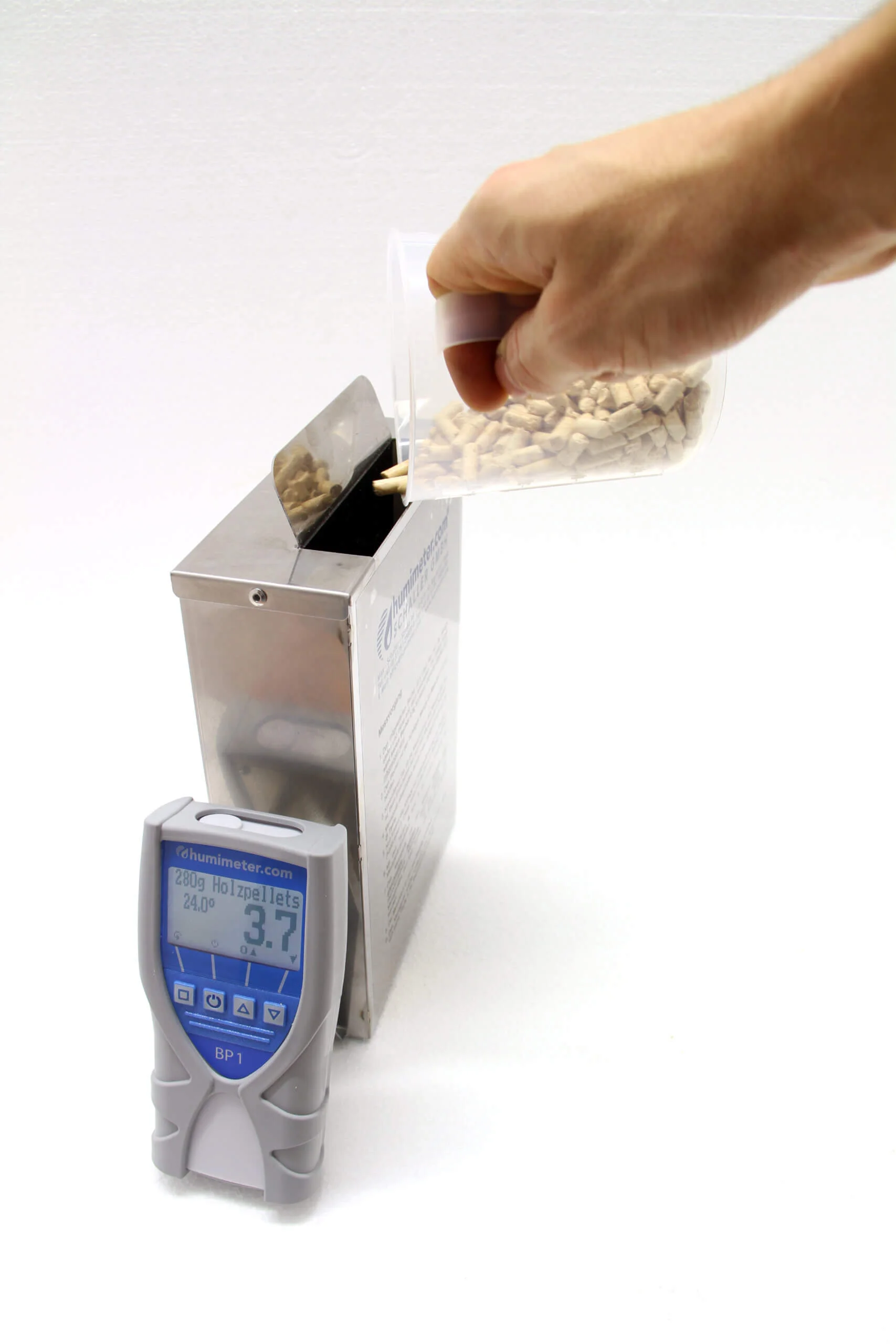

The  humimeter BP1 is a powerful moisture meter for determining the water content of all standard wood pellets and special pellets. We are developers and manufacturers of these industrial pellet moisture meters.

Areas of Application:
The device is perfect for quality control in the manufacture, temporary storage or incoming inspection of wood pellets or special pellets (thistle, straw, rapeseed, miscanthus...).

The measured values ​​can be recorded via the integrated data logger of the humimeter BP1 save it, add additional data and call it up again later. You also have the option of a hold function to use. This allows measured pellet moisture values ​​to be frozen on the display until the next button is pressed.

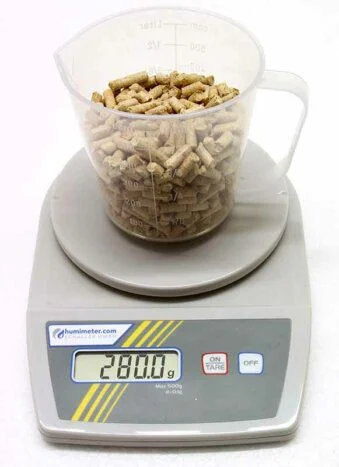

In order to increase the measurement accuracy and reproducibility, the measurement is carried out with hectoliter compensation. This is achieved by accurately weighing the sample amount. A scale and a measuring cup are included for this purpose. bulk density does not affect the measuring result. The entire device series was calibrated and checked using the calibratable drying method CEN/TS14961:2005.

At the same time, the sample temperature is measured, displayed and included in the pellet moisture calculation. The temperature range is from 0°C to 40°C and can be displayed in either °C or °F. The calibrated measuring range extends from 3% to 20% water content (depending on the type).
Another great feature of the humimeter BP1 is the optionally available USB interface. This interface can be used to connect to a PC. From the included software LogMemorizer the values ​​can be read from the device, edited, provided with additional information, archived, exported and further processed. With the help of this interface, the water content, the sample temperature, additional information and special device data of the humimeter BP1 pellets moisture meter can be output at the push of a button on the interface and further processed by another PC program.

As an additional option, we offer a portable and handy thermal printer. With the help of this printer, stored data can be printed out on site without a PC. These printouts can be given to the supplier as receipts.

The following requirements are met:

• Measuring device based on the requirements of the VDI standard 4206 sheet 4
• Material characteristics in accordance with EN ISO 16559 requirements
• Measuring device adjusted by calibration according to reference method EN ISO 18134-2
