Schaller humimeter FS1.1

Update Terakhir
humimeter FS1.1
Negara Asal
GERMANY
Pembelian minimum
Harga
Minta Penawaran
Sharing:

Deskripsi produk

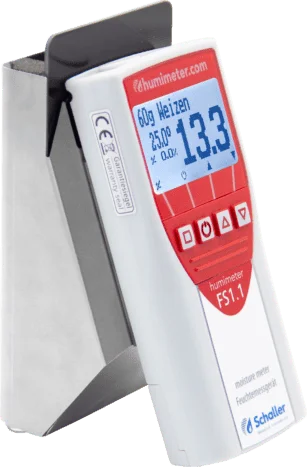

humimeter FS1.1

Agricultural moisture analyser for grain
  • Measuring range: 5 - 25% water content
  • Calibration Accuracy: +/- 0,9%
  • 60 g sample amount
  • High measuring accuracy
  • Long-term stable
  • Measurement within seconds
  • Non-destructive measurement
  • Lifetime Support

Features

The humimeter FS1.1 grain moisture analyser is a powerful and handy moisture tester for grain, for determining the water content of many grain types.

Thanks to a hold function, the measured values ​​can be frozen on the display until the next button is pressed. In order to increase the measurement accuracy and reproducibility, different hectoliter weight levels are stored in the device. This means that different bulk densities do not have a negative impact on the measurements. The entire series of devices for measuring grain moisture has been calibrated and checked using the calibratable kiln method EN-ISO 712.
At the same time, the sample temperature measured, displayed and included in the moisture calculation.
Our grain moisture meter humimeter FS1.1  has a calibrated measuring range of 5% to 25% water content (depending on the type).

Areas of Application:
The moisture meter is ideal for corn, rye, triticale, wheat, barley, oats, rape, soybeans, horse beans, sunflower seeds, sorghum, millet, mustard seed, buckwheat, rice peeled and unpeeled, peeled raw coffee and roast coffee.

The measuring device is adjusted according to Kascalestion to the reference method

  • EN ISO 6540 for corn
  • EN ISO 665 for oilseeds
  • EN ISO 712 for grain
  • EN ISO 24557 for legumes and beans

Benefits

  • Whole grain meter with small amount of sample
  • For all types of grain
  • No sample preparation necessary
  • Reduces drying costs
  • Prevent mold growth

Technical data

Measuring range 5 to 25% water content (depending on product type)
Resolution 0,1 %
Calibration accuracy to reference material +/- 0,9%
Compensation Sample temperature measurement
Temperature compensation Automatically
Memory function Hold function
Measurement result Within seconds without sample preparation
Dimensions 155 x 75 x 90 mm
Weight 360 g (with batteries)
Power Supply 4 x 1,5 Volt AA Alkaline batteries
offset function Adjustment of the calibration curve
Menu languages German, English, Italian, French, Spanish, Portuguese, Czech, Polish, Hungarian, Russian and International

Handling and measurement process

In order to be able to guarantee precise measured values ​​in the long term, the humimeter Moisture analyzer for grain automatically performs a self-calibration after switching on.
The relevant characteristic curve for the type of grain to be measured can then be selected on the device.

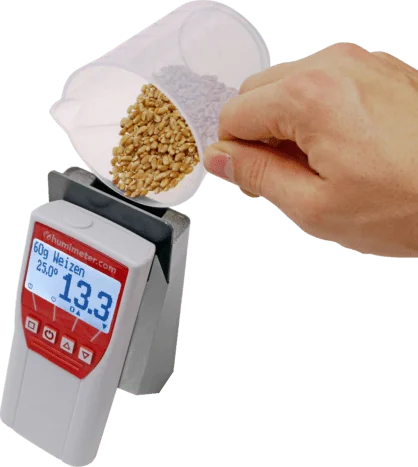

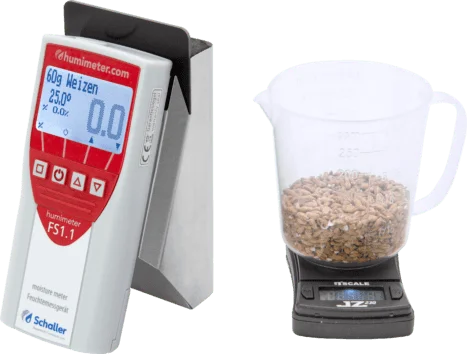

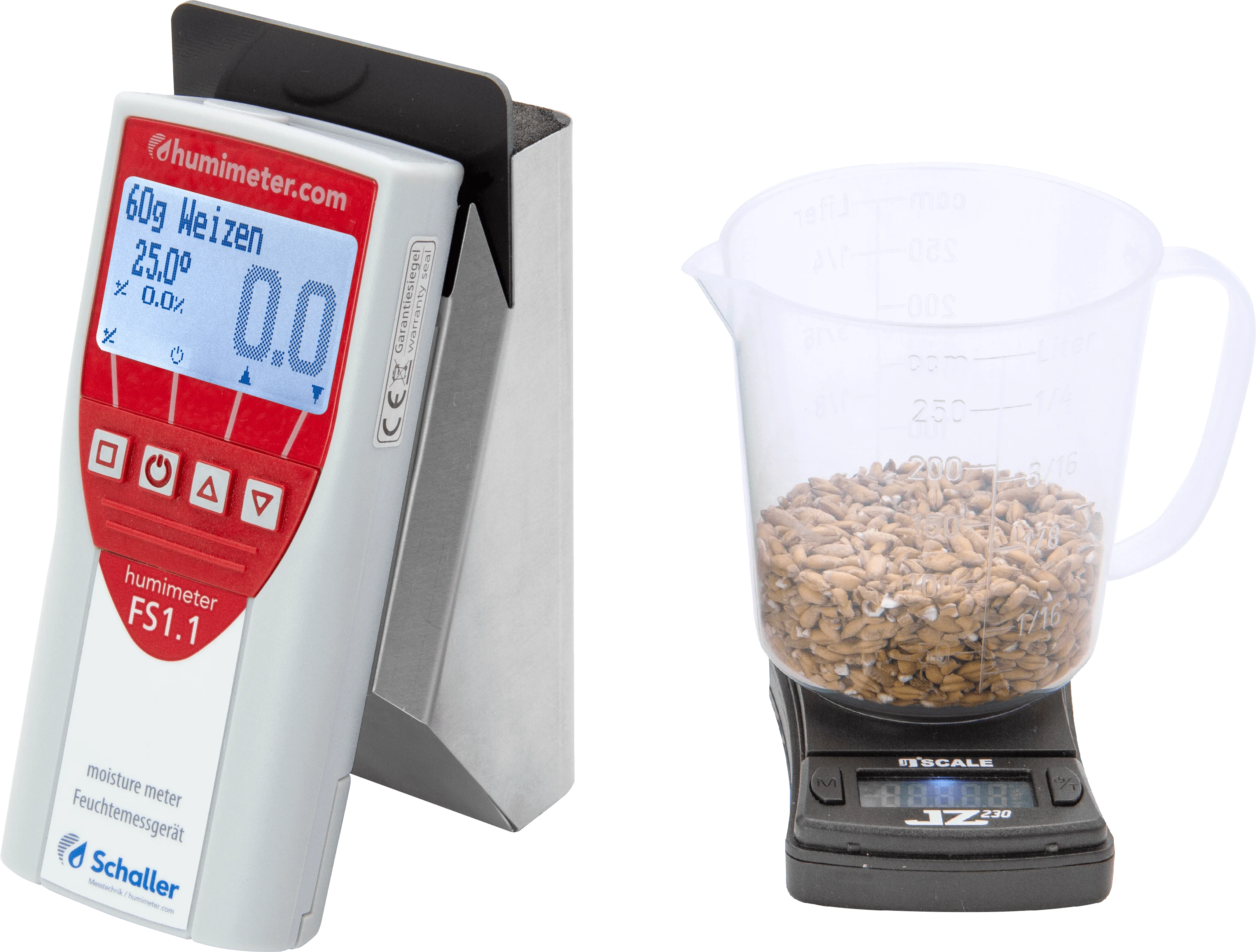

The measuring chamber of the grain measuring device is then filled with the required amount of the grain type. In order to determine the exact amount of grain, a scale and a measuring cup are included in the delivery.

The water content can immediately be read off from the large, well-lit display and, if necessary, saved and edited using the integrated data logger.

  • No time-consuming preparation of the sample necessary
  • Non-destructive measuring method
