LabDry
Automatic system for determining the water content using the ISO kiln-dry method
- Error-free, simple measurement
- Measurement of nearly every kind of material by ISO kiln-drying method
- Reliable determination of water content via drying chamber and calibratable scale
- Automatic calculation of water content
- Storage of the data in a clearly arranged central data base
- Reading and input mistakes can be avoided
- Lifetime Support
Features
LabDry is an automatic system for a verifiable scale with a PC interface for standard-compliant, gravimetric determination of the water content according to the DIN Darr method (laboratory moisture determination). The system enables and documents at the same time a water content determination according to EN ISO 18134-2 and many commercial standards for determination using drying cabinets and kilns.

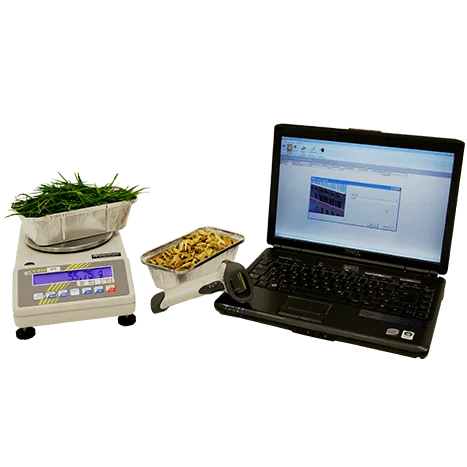

It includes PC calculation software, hand scanners and barcode-labeled aluminum shells. The LabDry measuring device simplifies the measurement of a wide variety of materials through an intelligent software solution and enables complete documentation. By using barcodes, a scale with a PC connection and the calculation software, input errors, mix-ups of samples or calculation errors are ruled out. Scale and drying cabinet are additionally required.
Suitable for: silage, sticky products, products with a very high water content
Simultaneously enables and documents a water content determination according to EN ISO 18134-2 and many commercial standards for determination using drying cabinets and drying ovens.
Benefits
- Reliable determination of the water content via drying chamber and scales
- Automatic calculation of water content
- Storage of the data in a clearly arranged data base
- Reading and input mistakes can be avoided
- Measurement of nearly every kind of material by ISO kiln-drying method
Technical data
| Aluminum shovel |
1,1 liters |
| Measuring bucket |
13 liters |
| Dimensions Hand scanner with USB PC interface |
18 x 7,7 x 13 cm |
| Weight |
0,3 kg |
| Dimensions |
200 x 112 x 57 mm |
| Menu languages |
English, German, Italian (others on request) |
Handling and measurement process
Run with that LabDry System from the company Schaller Messtechnik performs an automatic laboratory moisture determination precisely, quickly and conveniently. The water content determination is based on the DIN drying method with calculation based on the dry substance.

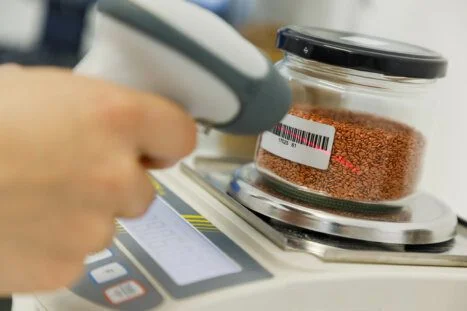

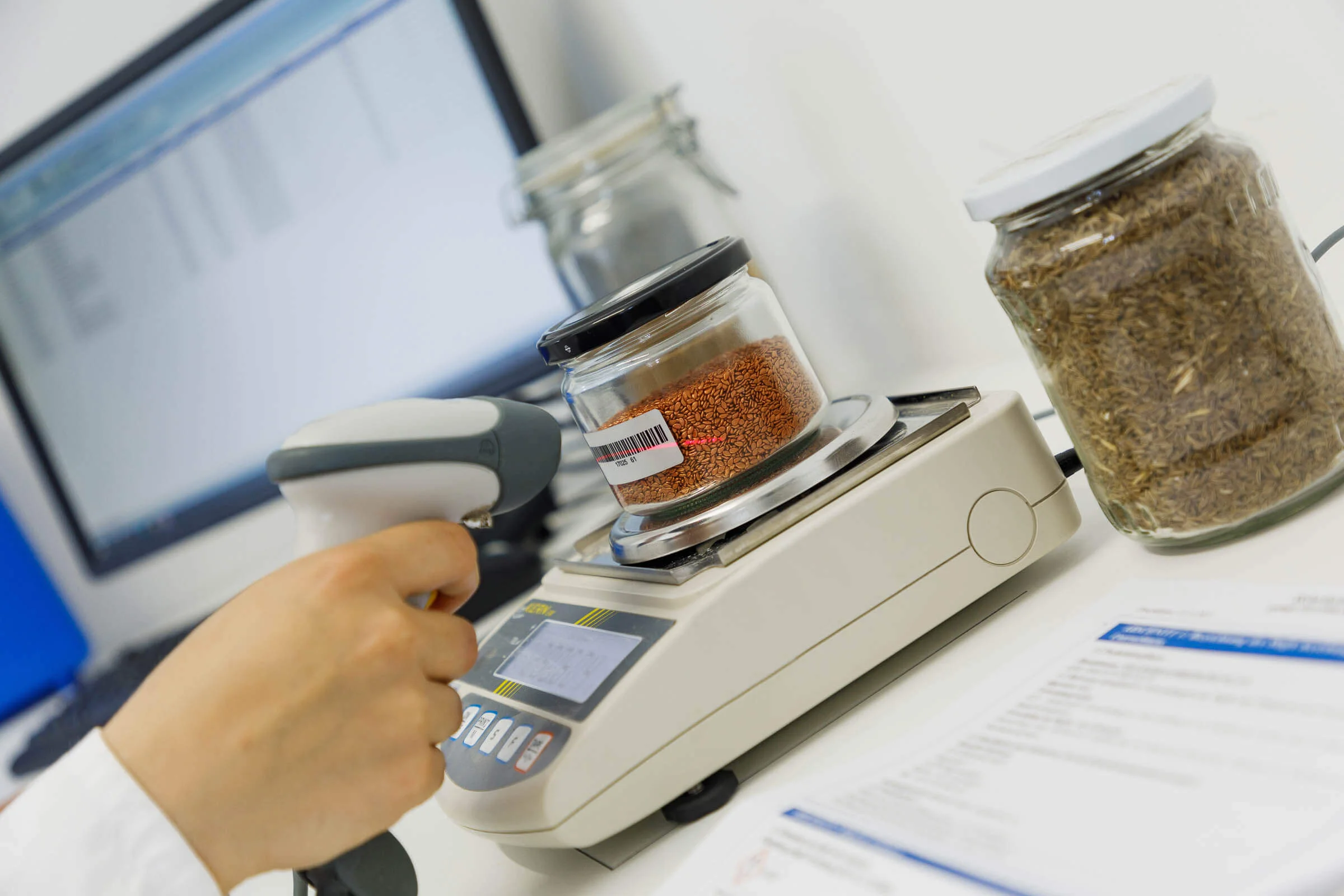

Fill the delivered barcode labelled aluminium bowl with the sample material and integrate the sample into the system via barcode scanner and analysing scale. Now the material moisture is determined by drying in the drying chamber (standard with laboratory moisture analysis). After the specified drying time, the sample is again recorded via analysing scale and barcode scanner. The system then automatically calculates and displays the material moisture.
By the automatic laboratory moisture analysis using barcodes, barcode scanner and analysing scale with PC interface, the risk of errors in the writing and reading of data is eliminated.
