Deskripsi produk

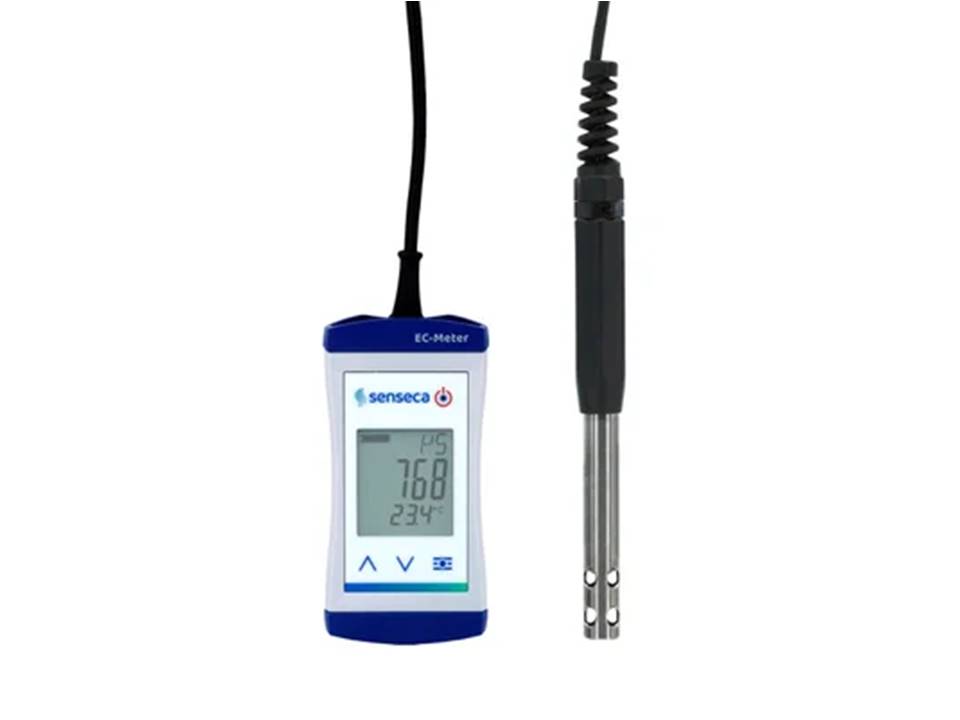

ECO-Line Conductivity Measuring Device ECO 523

The primary focus in the development of the new ECO-Line was placed on the essential functions of measurement technology. Pure measurement, emphasizing precision, speed, and reliability, all packaged in a compact housing with an impressive price/performance ratio, Made in Germany.

The new handheld measuring devices also impress with their ergonomic design, dust and water-protected casing in accordance with IP 65/67, and an illuminated display.

The compact ECO 523 conductivity measuring device features a specialized measuring cell for high-resolution clean/cleanest water applications.

APPLICATION:

• Freshwater and seawater aquariums
• Reverse osmosis and similar filters
• Cleaning processes
• Cooling and lubrication processes
• Plant cultivation and agriculture
• Laboratories, quality assurance, and service

Key Specifications:

• Protection Class: IP65 / IP67
• Accuracy:
  • Conductivity: Typ. ±1% of measured value, ±0.5% FS (Full Scale)
  • Temperature: ±0.3 °C
• Power Supply: 2 x AA Alkaline batteries (included)
• Power Consumption: <1 mA
• Weight: Approx. 200 g
• Housing Material: Impact-resistant ABS, polyester front panel

Measuring Ranges:

• Conductivity:
  • 0 ... 2000 μS/cm
  • 0.00 ... 20.00 mS/cm
  • 0.0 ... 100.0 mS/cm
• TDS (Total Dissolved Solids): 0 ... 2000 mg/l
• Salinity (PSU): 0.0 ... 50.0 g/kg water
• Temperature: -5.0 ... +105.0 °C

Sensor:

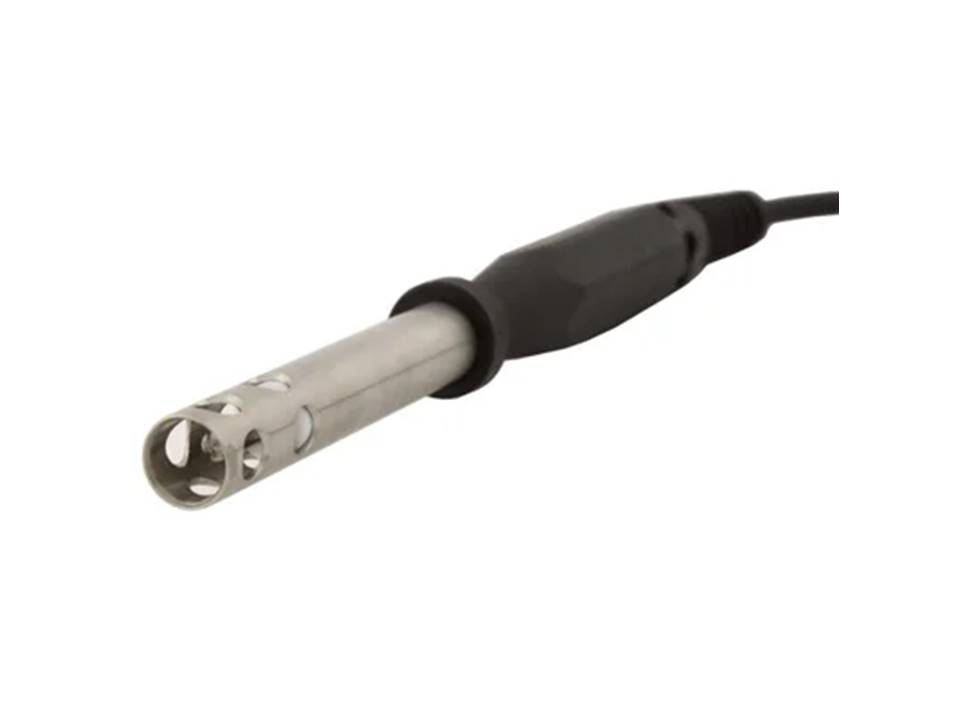

• 2-pole measuring cell, Ø 12 mm (Stainless Steel 1.4404, 1.4435)

Connections:

• Fixed 2-pole measuring cell with integrated temperature sensor

Storage Temperature:

• -20 ... +50 °C (without batteries)

Display:

• 3-line display with battery status indicator
• Backlit
• Protected by a shatterproof screen
• Overhead display at keypress

Dimensions:

• 108 x 54 x 28 mm (instrument without sensor) (H x W x D)

Additional Functions:

• Automatic measuring range shifting
• Automatic temperature compensation

Automatic Power-Off:

• Yes, configurable by the user

Battery Life:

• 1000 hours

Measuring:

• Conductivity, Salinity, TDS

Operating Conditions:

• Instrument: -20 to +50°C; 0 ... 95 % r.H
• Sensor: -5 to +80 °C (temporarily 100 °C)

Cable Length:

• 1.2 m

Conductivity Accuracy (up to 2000 μS/cm):

• Typ. ±1% of measured value, ±0.5% FS

Measuring Range Conductivity:

• 0.000 to 2000 μS/cm
• 0.00 to 20.00 mS/cm
• 0.0 to 100.0 mS/cm (with automatic measuring range shifting)

Measuring Range Specific Resistance (in MOhm*cm):

• 0.0100 to 0.2000
• 0.010 to 2.000
• 0.01 to 20.00 (with automatic measuring range shifting)

Oxygen:

• ±1.5 % of measured value
• ±0.2 mg/l or → 0.2 mg/l

Reference Temperatures:

• 20 °C and 25 °C

Temperature Range:

• -5.0 to +105.0 °C

Temperature Accuracy:

• ±0.3 °C

Temperature Compensation:

• Off: Deactivated
• nLF: Non-linear, according to EN 27888
• LIN: Linear with variable coefficients
• NaCl: For weak NaCl solutions, according to EN 60746-3

‘
‘
‘
