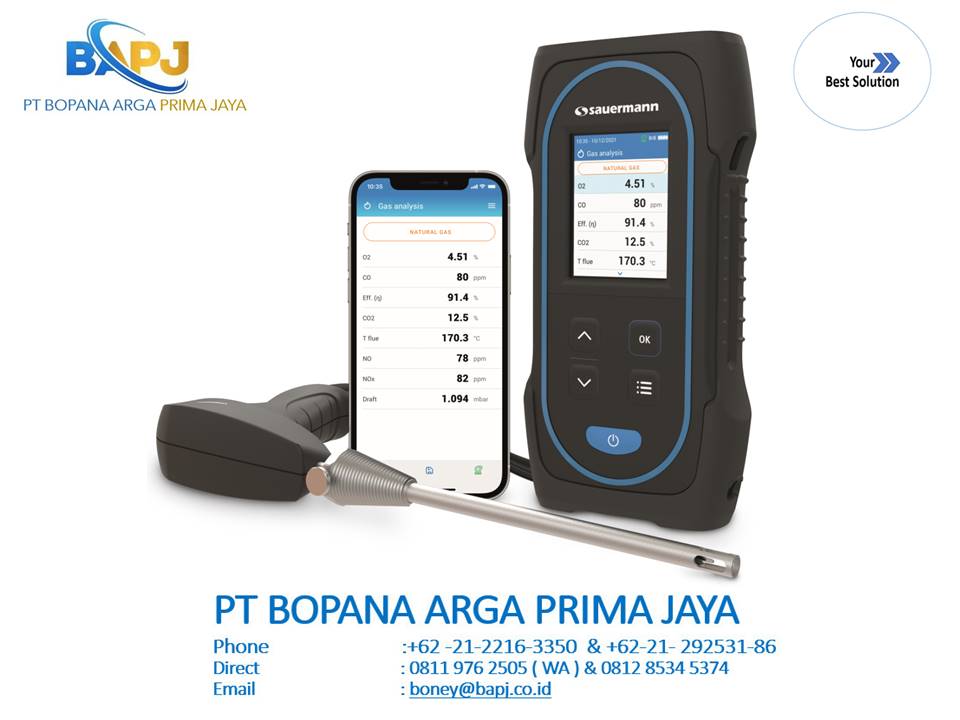

Si-CA 030 All the essentials for combustion gas analysis

Update Terakhir

Negara Asal

France

Pembelian minimum

1

Harga

Nego

Kategori

SAUERMANN

Minta Penawaran

Sharing:

Deskripsi produk

The Si-CA 030 offers everything heating engineers need to inspect and maintain residential and commercial boilers, with wireless connection to our smartphone app and automatic generation of servicing reports and certificates.

Up to three gas sensors O2, CO and NO (for NOx)

CO sensor measurement up to 8,000 ppm

Auto pump cut-off for high CO levels

Color display screen

Lightweight, only 350 g (12 oz)

Data management with automatic logging & report creation

Supplied with

1 Si-CA 030 analyzer
1 O2 gas sensors
1 CO gas sensors
1 NO gas sensors (optional)
1 Protective rubber holster
1 Flue gas probe with dual hose
1 Water trap with filter
1 AC power supply / charger
1 USB cable
1 Mobile app
1 Internal wireless communication module
1 Carrying case or box packaging
1 Quick Start Guide
1 Calibration certificate

Measure details

Units

°C, %, ppm, mbar

Measuring ranges

O2

0.00 % ... 25.00 %
CO

0.00 ppm ... 8000.00 ppm
CO2

0.00 % ... 99.90 %
Flue temperature

-20.00 °C ... 1250.00 °C
Air temperature

-20.00 °C ... 120.00 °C
Differential temperature

0.00 °C ... 1250.00 °C
Pressure/Draft

-200.00 mbar ... 200.00 mbar
Excess air

0.00 % ... 999.00 %
Efficiency

0.00 % ... 100.00 %
Efficiency (condensation)

0.00 % ... 125.00 %

Technical details

Parameters

CO

CO₂

O₂
Displays

Color graphical display
IP Protection

IP 42
Battery life

8 hours
Standards

2015/863 EU (RoHS 3)

NF EN 50379-3

TÜV SÜD Certification

UKCA

NF EN 50379-1

2014/53/EU RED
Wireless connection

1
Power supply

Rechargeable battery, Li-Ion 5100 mA/h 3.6 V
Usb

Yes
Sensors

CO

CO2

O2
Auto zero

Yes
Printer

Remote
Sensor protection

Sensor protection by pump stopping
Mobile application

Yes
Instrument Dimensions
- Length

  99 mm
- Width

  49 mm
- Height

  194 mm
- Weight

  350 g
Operating temperature
- Min

  -5.00 °C
- Max

  45.00 °C
Storage temperature
- Min

  -20.00 °C
- Max

  50.00 °C

  REF. No. Model No.

  Product Description

  27496 SICA 030 KIT 2AS
  CombustionanalyzerSi-CA030Kit2AS,with2electrochemicalgassensors(O2,
  CO) upgradeable toa3rdsensor (NO), automaticpumpcut-off protection for
  sensors, 180mmsampling probewith 2mhose andwater trapwith filter,
  magneticsupport,protectiverubberholster,powercharger,USBcable,quickstart
  guideandcalibrationcertificate.Wirelesscommunication formobileapplication
  and remote printer (optional). Packaged in vinyl carrying case.

  27498 SICA 030 KIT 2BS
  CombustionanalyzerSi-CA030Kit2BS,with2electrochemicalgassensors(O2,
  CO) upgradeable toa3rdsensor (NO), automaticpumpcut-off protection for
  sensors, 300mmsampling probewith 3mhose andwater trapwith filter,
  magneticsupport,protectiverubberholster,powercharger,USBcable,quickstart
  guideandcalibrationcertificate.Wirelesscommunication formobileapplication
  and remote printer (optional). Packaged in vinyl carrying case.

  27503 SICA 030 KIT 3BS
  CombustionanalyzerSi-CA030Kit3BS,with3electrochemicalgassensors(O2,
  CO,NO),automaticpumpcut-offprotectionforsensors,300mmsamplingprobe
  with3mhoseandwater trapwith filter,magnetic support, protective rubber
  holster, power charger,USBcable, quickstart guideandcalibrationcertificate.
  Wireless communication for mobile application and remote printer (optional).
  Packaged in vinyl carrying case.

  ‘

  ‘
  ‘
