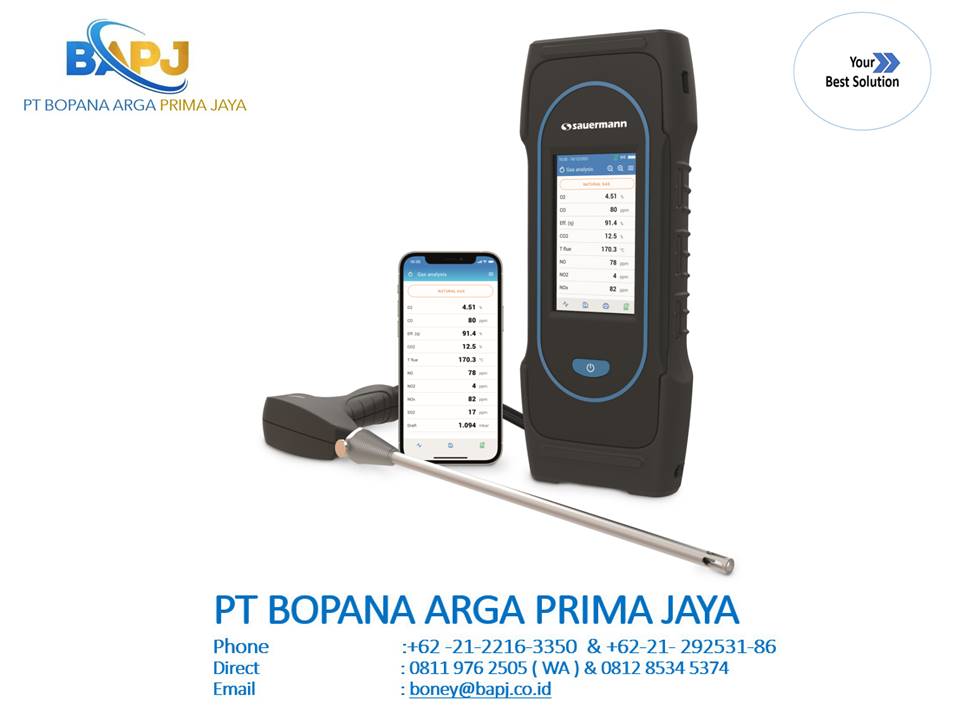

Si-CA 230 High performance analyzer, powered for industrial capablities

Update Terakhir
Negara Asal
France
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

With double the number of cells and expanded measurement capabilities, the Si-CA 230 is suited to the most powerful industrial machines.

And with support for more gases and a high CO tolerance threshold, its versatility makes it the ideal choice across residential, commercial and industrial applications.

  • Up to six gas sensors
  • Total NOx & Low NOx Capable
  • Field Replaceable Pre-Calibrated Sensors
  • Large Color Touch Screen
  • iOS and Android Mobile Apps for Real-Time Display & Control
  • CO Dilution auto-range with measurements to 50,000 ppm

Measure details

  • Units
    °C, %, Pa, ppm, m/s, mbar

 Measuring ranges

  • O2
    0.00 % ... 25.00 %
  • CO (H2 comp.)
    0.00 ppm ... 10000.00 ppm
  • CO (with dilution)
    100.00 ppm ... 50000.00 ppm
  • CO2
    0.00 % ... 99.00 %
  • NO
    0.00 ppm ... 5000.00 ppm
  • Low NO
    0.00 ppm ... 300.00 ppm
  • NO2
    0.00 ppm ... 1000.00 ppm
  • Low NO2
    0.00 ppm ... 100.00 ppm
  • NOx
    0.00 ppm ... 7500.00 ppm
  • Low NOx
    0.00 ppm ... 450.00 ppm
  • SO2
    0.00 ppm ... 5000.00 ppm
  • Low SO2
    0.00 ppm ... 100.00 ppm
  • CxHy (HC)
    0.00 % ... 5.00 %
  • H2S
    0.00 ppm ... 500.00 ppm
  • Flue temperature
    -20.00 °C ... 1250.00 °C
  • Air temperature
    -20.00 °C ... 120.00 °C
  • Differential temperature
    0.00 °C ... 1250.00 °C
  • Pressure/Draft
    -200.00 mbar ... 200.00 mbar
  • High accuracy draft
    500.00 Pa ... 500.00 Pa
  • Excess air
    0.00 % ... 999.00 %
  • Efficiency
    0.00 % ... 100.00 %
  • Efficiency (condensation)
    0.00 % ... 125.00 %
  • Stack Gas Velocity
    0.00 m/s ... 99.00 m/s
Technical details
  • Parameters
    Air quality
    Gas analysis
    CO
    CO₂
    H₂S
    NO
    NO₂
    O₂
    SO₂
  • Displays
    Color graphical display
  • IP Protection
    IP 42
  • Battery life
    8 hours
  • Standards
    2015/863 EU (RoHS 3)
    TÜV SÜD Certification
    UKCA
    NF EN 50379-1
    NF EN 50379-2
    2014/53/EU RED
  • Wireless connection
    1
  • Power supply
    Rechargeable battery, Li-Ion 5100 mA/h 3.6 V
  • Usb
    Yes
  • Sensors
    CO
    CO2
    CxHy
    H2S
    NOx
    NO
    NO2
    O2
    SO2
  • Auto zero
    Yes
  • Printer
    Remote
  • Sensor protection
    Sensor protection by pump stopping
  • Mobile application
    Yes

Instrument Dimensions

  • Length
    112 mm
  • Width
    55 mm
  • Height
    280 mm
  • Weight
    825 g

Operating temperature

  • Min
    -5.00 °C
  • Max
    45.00 °C

Supplied with

  • 1 Si-CA 230 analyzer
  • 1 O2 gas sensors
  • 1 CO gas sensors
  • 1 CO Dilution Auto-Range to 50,000 ppm
  • 1 Protective rubber holster
  • 1 300 mm flue gas probe with 3 m dual hose (other probe lengths available)
  • 1 Water trap with filter
  • 1 AC power supply / charger
  • 1 USB cable
  • 1 Mobile app & PC software
  • 1 Internal wireless communication module
  • 1 Carrying case
  • 1 Quick Start Guide
  • 1 Calibration certificate



CATEGORY PRODUK



REF. No. Model No.

Product Description



  • 27597 SICA 230 KIT 3N
    CombustionanalyzerSi-CA230Kit3Nwithtouchscreen,3electrochemicalgas
    sensors(O2,CO,NO)upgradeabletomaximumof6sensorstotal,automaticCO
    dilution,300mmsamplingprobewith3mhoseandwatertrapwithfilter,magnetic
    support,protectiverubberholster,ABSplasticcarryingcase,powercharger,USB
    cable, quick start guideandcalibrationcertificate.Wirelesscommunication for
    mobile application and remote printer (optional).
  • 27598 SICA 230 KIT 3NL
    CombustionanalyzerSi-CA230Kit3NLwithtouchscreen,3electrochemicalgas
    sensors (O2,CO,NOlowrange) upgradeable tomaximumof 6sensors total,
    automaticCOdilution,300mmsamplingprobewith3mhoseandwater trapwith
    filter, magnetic support, protective rubber holster, ABS plastic carrying case, power
    charger, USB cable, quick start guide and calibration certificate. Wireless
    communication for mobile application and remote printer (optional).
  • 27599 SICA 230 KIT 4ND
    CombustionanalyzerSi-CA230Kit4NDwithtouchscreen,4electrochemicalgas
    sensors (O2, CO, NO, NO2) upgradeable tomaximumof 6 sensors total,
    automaticCOdilution,300mmsamplingprobewith3mhoseandwater trapwith
    filter, magnetic support, protective rubber holster, ABS plastic carrying case, power
    charger, USB cable, quick start guide and calibration certificate. Wireless
    communication for mobile application and remote printer (optional).
  • 27600 SICA 230 KIT 4NS
    CombustionanalyzerSi-CA230Kit4NSwithtouchscreen,4electrochemicalgas
    sensors (O2, CO, NO, SO2) upgradeable tomaximumof 6 sensors total,
    automaticCOdilution,300mmsamplingprobewith3mhoseandwater trapwith
    filter, magnetic support, protective rubber holster, ABS plastic carrying case, power
    charger, USB cable, quick start guide and calibration certificate. Wireless
    communication for mobile application and remote printer (optional).
  • 27601 SICA 230 KIT 4NC
    CombustionanalyzerSi-CA230Kit4NCwithtouchscreen,4electrochemicalgas
    sensors (O2, CO, NO, CxHy) upgradeable tomaximumof 6 sensors total,
    automaticCOdilution,300mmsamplingprobewith3mhoseandwater trapwith
    filter, magnetic support, protective rubber holster, ABS plastic carrying case, power
    charger, USB cable, quick start guide and calibration certificate. Wireless
    communication for mobile application and remote printer (optional).
  • 27602 SICA 230 KIT 4NLDL
    CombustionanalyzerSi-CA230Kit4NLDLwithtouchscreen,4electrochemical
    gassensors(O2,CO,NOlowrange,NO2lowrange)upgradeabletomaximumof
    6sensorstotal,automaticCOdilution,300mmsamplingprobewith3mhoseand
    water trapwith filter,magnetic support, protective rubber holster, ABSplastic
    carrying case, power charger, USB cable, quick start guide and calibration
    certificate.Wireless communication formobile application and remote printer
    (optional).
  • 27603 SICA 230 KIT 4NLSL
    CombustionanalyzerSi-CA230Kit4NLSLwithtouchscreen,4electrochemical
    gassensors(O2,CO,NOlowrange,SO2lowrange)upgradeabletomaximumof
    6sensorstotal,automaticCOdilution,300mmsamplingprobewith3mhoseand
    water trapwith filter,magnetic support, protective rubber holster, ABSplastic
    carrying case, power charger, USB cable, quick start guide and calibration
    certificate.Wireless communication formobile application and remote printer
    (optional).
  • 27604 SICA 230 KIT 5NDS
    CombustionanalyzerSi-CA230Kit 5NDSwith touchscreen, 5electrochemical
    gassensors (O2,CO,NO,NO2, SO2) upgradeable tomaximumof 6sensors
    total,automaticCOdilution,300mmsamplingprobewith3mhoseandwatertrap
    withfilter,magneticsupport,protectiverubberholster,ABSplasticcarryingcase,
    powercharger,USBcable,quickstartguideandcalibrationcertificate.Wireless
    communication for mobile application and remote printer (optional).
  • 27605 SICA 230 KIT 5NDC
    CombustionanalyzerSi-CA230Kit 5NDCwith touchscreen, 5electrochemical
    gassensors (O2,CO,NO,NO2,CxHy)upgradeable tomaximumof 6sensors
    total,automaticCOdilution,300mmsamplingprobewith3mhoseandwatertrap
    withfilter,magneticsupport,protectiverubberholster,ABSplasticcarryingcase,
    powercharger,USBcable,quickstartguideandcalibrationcertificate.Wireless
    communication for mobile application and remote printer (optional).
  • 27606 SICA 230 KIT 5NSC
    CombustionanalyzerSi-CA230Kit 5NSCwith touchscreen, 5electrochemical
    gassensors (O2,CO,NO,SO2,CxHy)upgradeable tomaximumof 6sensors
    total,automaticCOdilution,300mmsamplingprobewith3mhoseandwatertrap
    withfilter,magneticsupport,protectiverubberholster,ABSplasticcarryingcase,
    powercharger,USBcable,quickstartguideandcalibrationcertificate.Wireless
    communication for mobile application and remote printer (optional).
  • 27607 SICA 230 KIT 5NSH
    CombustionanalyzerSi-CA230Kit 5NSHwith touchscreen, 5electrochemical
    gassensors(O2,CO,NO,SO2,H2S)upgradeabletomaximumof6sensorstotal,
    automaticCOdilution,300mmsamplingprobewith3mhoseandwater trapwith
    filter, magnetic support, protective rubber holster, ABS plastic carrying case, power
    charger, USB cable, quick start guide and calibration certificate. Wireless
    communication for mobile application and remote printer (optional).
  • 27608 SICA 230 KIT 5NLDLSL
    Combustion analyzer Si-CA 230 Kit 5NLDLSL with touch screen, 5
    electrochemical gassensors (O2,CO,NOlowrange,NO2 lowrange,SO2 low
    range)upgradeable tomaximumof 6sensors total, automaticCOdilution, 300
    mmsamplingprobewith3mhoseandwater trapwith filter,magneticsupport,
    protectiverubberholster,ABSplasticcarryingcase,power charger,USBcable,
    quickstart guideandcalibrationcertificate.Wirelesscommunication formobile
    application and remote printer (optional).
  • 27609 SICA 230 KIT 6NDSC
    CombustionanalyzerSi-CA230Kit6NDSCwithtouchscreen,6electrochemical
    gassensors (O2,CO,NO,NO2, SO2,CxHy), automaticCOdilution, 300mm
    sampling probewith 3mhose andwater trapwith filter, magnetic support,
    protectiverubberholster,ABSplasticcarryingcase,power charger,USBcable,
    quickstart guideandcalibrationcertificate.Wirelesscommunication formobile
    application and remote printer (optional).
  • 27610 SICA 230 KIT 6NDSH
    CombustionanalyzerSi-CA230Kit6NDSHwithtouchscreen,6electrochemical
    gas sensors (O2, CO, NO, NO2, SO2, H2S), automaticCOdilution, 300mm
    sampling probewith 3mhose andwater trapwith filter, magnetic support,
    protectiverubberholster,ABSplasticcarryingcase,power charger,USBcable,
    quickstart guideandcalibrationcertificate.Wirelesscommunication formobile
    application and remote printer (optional).
  • 27611 SICA 230 KIT 6NLDLSLH
    Combustion analyzer Si-CA 230 Kit 6NLDLSLH with touch screen, 6
    electrochemical gassensors (O2,CO,NOlowrange,NO2 lowrange,SO2 low
    range,H2S),automaticCOdilution,300mmsamplingprobewith3mhoseand
    water trapwith filter,magnetic support, protective rubber holster, ABSplastic
    carrying case, power charger, USB cable, quick start guide and calibration
    certificate.Wireless communication formobile application and remote printer
    (optional).

‘
‘
‘
