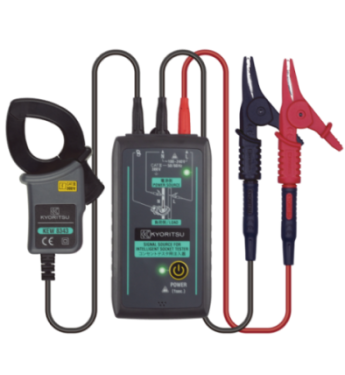

*KEW 8343 is cannot be measured alone.
| Applicable models | 4506 |
|---|
| Conductor size | Ø24mm max. | |||||
| Test voltage | Freq. | Approx. 1.8kHz | ||||
| TRMS | Approx. 20mV rms | |||||
| Allowable input range | 300V AC (50/60Hz) continuous / 30A AC (50/60Hz) continuous | |||||
| Applicable standards | IEC 61010-1, 61010-031, 61010-2-032 CAT Ⅲ 300V, Pollution degree 2, IEC 60529(IP40) |
|---|---|
| Operating temperature & humidity range | -10 to 50℃, RH 85% or less |
| Storage temperature & humidity range | -20 to 60℃, RH 85% or less |
| Power source | LR6 (AA)(1.5V) × 6 |
| Dimensions | Unit: 112(L) × 61(W) × 42(D) mm Test voltage injection clamp: 100(L) × 60(W) × 26(D) mm Cable length: Approx. 1.5m |
| Weight | Approx. 520g (including batteries) |
| Included Accessories | 7157B (Alligator clips) 9096 (Carrying case) LR6 (AA) × 6, Instruction manual |
