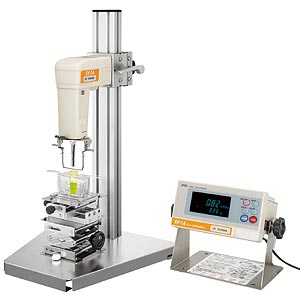

SV-A Series Tuning Fork Vibro Viscometers

Update Terakhir

Negara Asal

Jepang

Pembelian minimum

1

Harga

Nego

Kategori

AND

Minta Penawaran

Sharing:

Deskripsi produk

2 ml Sample Measurement Now Possible!

Features

2 ml sample measurement (SV-1A)

Anti-corrosive, titanium sensor plates and temperature sensor

X-Y-Z stage for fine position adjustment of the sample cup

Wide-range, continuous measurement without replacing the sensor plates

Simultaneous measurements of temperature and viscosity

Windows Communication Tools WinCT-Viscosity and a serial-USB converter provided as standard

Easy set up and very quick measurement

Excellent repeatability (1% of the measured value by standard deviation)

Extremely high sensitivity (detects a viscosity as low as 0.3 mPa·s)

Little interference to the sample fluid

Possible to measure fluids in motion

Simplified calibration function (for SV-1A and SV-10A)

Easy cleaning after measurement

Specifications

Model	SV-1A	SV-10A	SV-100A
Measurement method	Tuning fork vibro method (natural frequency at 30Hz)
Viscosity measurement unit	mPa·s, Pa·s, cP, P		Pa·s, P
Viscosity measurement range	0.3 to 1000 mPa·s	0.3 to 10000 mPa·s	1 to 100 Pa·s
Repeatability (standard deviation)	1% of the measured value (20 to 30°C, no condensation)
Minimum sample amount	2 ml	10 ml
Temperature measurement	0 to 160°C / 0.1°C(32 to 320°F/0.1°F)
Display	Vacuum Fluorescent Display (VFD)
Power supply / consumption	AC adapter / approx. 14 VA (including the AC adapter)
External dimensions / weight	Main unit: 112 (W) × 132 (D) × 291(H) mm / approx. 0.8 kg
	Display unit: 238 (W) × 132 (D) × 170(H) mm / approx. 1.3 kg
Standard accessories	Stand for securing the sensor unit, X-Y-Z stage, cup set Software set (including a serial-USB converter) AC adapter, connection cable (1.5 m)

‘
‘
‘
