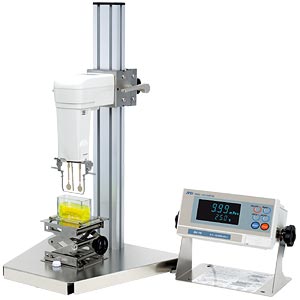

SV Series Tuning Fork Vibro Viscometers

Update Terakhir

Negara Asal

Jepang

Pembelian minimum

1

Harga

Nego

Kategori

AND

Minta Penawaran

Sharing:

Deskripsi produk

Viscometry Revolution!

Features

Wide-range, continuous measurement without replacing the sensor plates

Simultaneous measurements of temperature and viscosity

Windows Communication Tools WinCT-Viscosity provided as standard

Easy set up and very quick measurement

Excellent repeatability (1% of the measured value by standard deviation)

Extremely high sensitivity (detects a viscosity as low as 0.3 mPa·s)

Simplified calibration function (for SV-10)

Little interference to the sample fluid

Easy cleaning after measurement

Possible to measure fluids in motion

Specifications

Model	SV-10	SV-100
Measurement Method	Tuning Fork Vibration Method (Natural Frequency at 30Hz)
Viscosity Measurement Unit	mPa·s, Pa·s, cP, P	Pa·s, P
Viscosity Measurement Rang	0.3~10000mPa·s	1~100Pa·s
Repeatability	1% of Reading (S.D., 20~30°C, No condensation)
Minimum Sample Amount	10ml~ (with Optional Small Sample Cup)
Temperature Measurement	0~160°C / 0.1°C(32~320°F/0.1°F)
Display	Vacuum Fluorescent Display (VFD)
Power Supply	AC Adaptor (Approx. 14VA)
External Dimensions / Mass	Main Unit (with Stand): 332 (W)×314 (D)×536(H) mm / Approx. 5.0 kg
	Display Unit: 238 (W)×132 (D)×170(H) mm / Approx. 1.3 kg
Standard Accessories	Sample Cup (45 ml, Polycarbonate × 4 pcs), CD-ROM (WinCT-Viscosity), AC Adaptor, Connection Cable (1.5m), RS-232C Cable (25P-9P)

‘
‘
‘
