| Vacuum Pump Technical Data | ||||
| Model | VP - 10L | VP - 15L | VP-15S | VP - 30L |

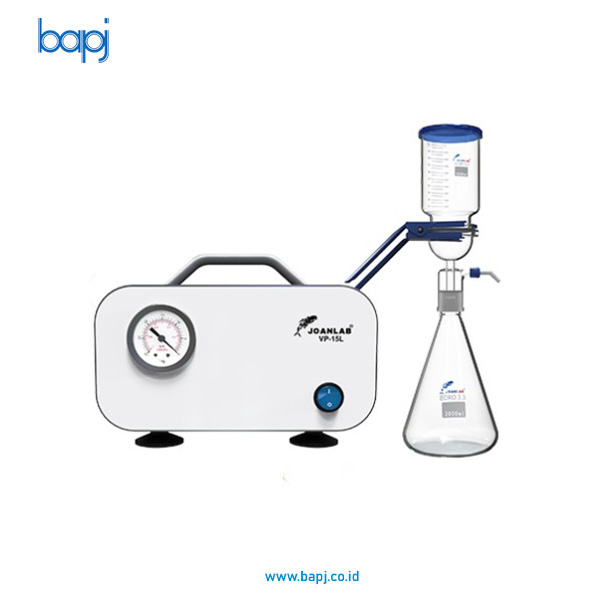

| Picture |  |
|
 |
 |
| Type | Negative pressure | Positive
and negative pressure |
||
| Pumping speed:(L/min) | 10 | 15 | 0 - 15 | 30 |
| Ultimate Pressure(Mpa) | 0.075 | 0.08 | 0.085 | |
| Noise Level(DB) | <40 | <45 | <50 | |
| Motor Power(W) | 20 | 30 | 50 | |
| Diaphragm&Vales | NBR | |||
| Overload protection | YES | |||
| Over temperature protection | YES | |||
| Short circuit protection | YES | |||
| Dimensions (mm) | 192x100x135 | 240x120x160 | ||
| Products weight (kgs) | 1.58 | 2.68 | ||
