Fast pre- and fine-grinding in one instrument

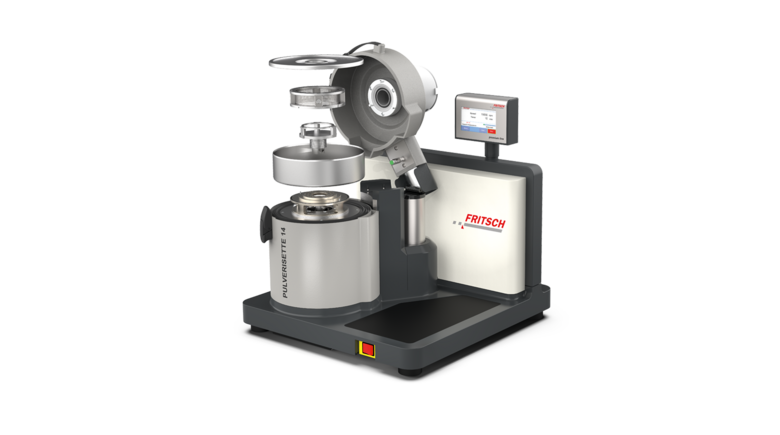

The FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 premium line offers impact, shearing and cutting comminution in one instrument – with a higher performance, better cooling and is significantly quieter than comparable instruments. Its powerful motor is ideal for the particularly fast comminution of soft to medium-hard, brittle as well as fibrous materials and temperature-sensitive samples with an extremely fast sample throughput, which can be further increased by the use of the FRITSCH Cyclone separators.
Due to its high performance, the PULVERISETTE 14 premium line is the ideal Variable Speed Rotor Mill for comminution at pilot plant-scale in the plastics industry.
Two Mills in one instrument: With the cutting rotor you turn the PULVERISETTE 14 premium line into a Cutting Mill for fast, efficient pre- and fine comminution of soft to hard-tough, fibrous materials and plastics.
| Operating the PULVERISETTE 14 premium line as Variable Speed Rotor Mill | |
| Working principle | impact |
| Optimal for material type | soft to medium-hard, brittle as well as fibrous, temperature sensitive |
| Grinding tools | impact rotor, impact bar and sieve rings |
| Materials of the grinding tools | stainless steel, stainless steel 316L, pure titanium |
| Min. sample quantity | < 10 ml |
| Max. feed size | 15 mm |
| Final fineness | d50 < 40 μm, sieve rings 0.08 – 6 mm |
| Impact rotor speed | 6,000 - 22,000 rpm |
| Impact speed | 111 m/s = 399.6 km/h |
| PULVERISETTE 14 premium line as a Cutting Mill | |
| Working principle | cutting |
| Optimal for material type | soft, fibrous, hard-tough materials and plastics |
| Cutting tools | cutting rotor and sieve shells |
| Materials of the cutting tools | stainless steel, hardmetal tungsten carbide, pure titanium, zirconium oxide, stainless steel 316L, TiN-coated |
| Min. sample quantity | < 10 ml |
| Max. feed size | 10 mm |
| Final fineness | 0.08 - 4 mm sieve shells |
| Cutting rotor speed | 6,000 - 18,000 rpm |
| Cutting rotor peripheral speed | 30 - 83 m/s |
| Further details for both versions of the mill | |
| Feeding | batchwise or continuous grinding with FRITSCH Cyclone separators |
| Sample throughput (depending on the material and sieve size) | up to 15 l h and more |
| Electrical Details, additional voltages available upon request | 200-240 V/1~, 50-60 Hz, 2500 Watt |
| Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be ground , adjusted rotor-speed and instrument configuration) | approx. LpAd = 69 dB |
| Weight | 43 kg |
| Dimensions (W x D x H) | bench top instrument 55 x 52 x 63 cm |
