Precise sieving with automatic amplitude control
The high performance Vibratory Sieve Shaker ANALYSETTE 3 PRO offers everything you need for fast determination of quantitative particle size distribution in the laboratory. As a shaking sieve system with an electromagnetic drive oscillates the sieve stack into regulated vertical oscillations, and is the ideal solution for sieving sample quantities up to 2 kg and a measurement range from 20 μm to 63 mm.
The ANALYSETTE 3 PRO is perfectly suited for fast quality control of incoming and outgoing products, offers user-friendly operation and is low-noise, robust and long-lasting. Perfect for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves.
Our top model with automatic amplitude control, programme selection and the ability to be used as a calibratable and validatable test instrument in test equipment monitoring according to ISO 9001 and much more.

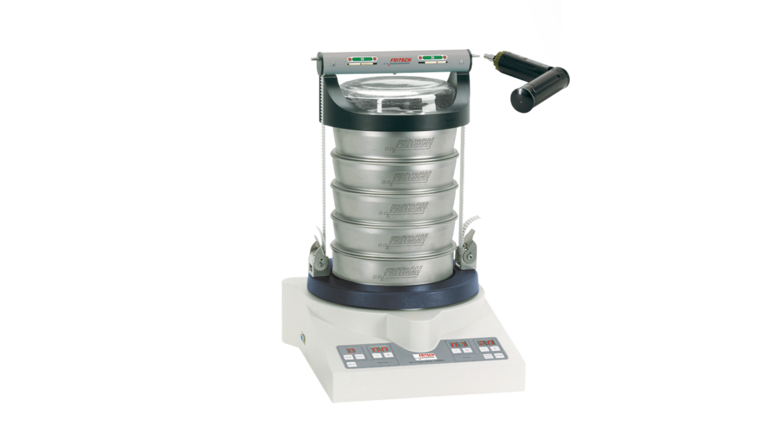

Vibratory Sieve Shaker
ANALYSETTE 3 PRO
| Method of analysis | sieving |
| Sieving action | two-dimensional |
| Dry sieving | |
| Measuring range | 20 µm - 63 mm* |
| Max. sample quantity approx. | for sieves < 63 mm: up to 2 kg*for sieves < 100 µm: up to 100 g* |
| Sieving time approx. | 3 - 20 min* |
| Wet sieving | |
| Measuring range | 20 µm - 10 mm |
| Max. sample quantity approx. | 20 - 100 g* |
| Sieving time approx. | 30 - 60 min* |
| Further details | |
| Sieve diameters | 100 mm, 200 mm or 8" |
| Max. number of sieves per sieve stack | 10 (50 mm height), 16 (25 mm height) |
| Max. weight of sieve stack | 3 kg |
| Max. height of sieve stack | 550 mm |
| Amplitude | 0.1 - 3 mm |
| Amplitude control | automatic |
| Automatic sieve analysis with evaluation software AUTOSIEVE | yes |
| Testing instrument calibration according to ISO 9001 | yes |
| Interface | yes |
| Intermittent mode | yes |
| Memory for 10 parameter combinations | yes |
| Convertible to Vibratory Micro Mill PULVERISETTE 0 | yes |
| Electrical details | 100-240 V/1~ 50-60 Hz, 50-60 Hz, 50 Watt |
| Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be sieved and instrument configuration) | Approx. LpAd = 63 dB |
| Weight | 21 kg |
| Dimensions (W x D x H) | bench top instrument 37 x 40 x 20 cm |
