Deskripsi produk

An economical set of precision high resistance standards designed for testing meggers or other instruments; 9 or 10 values up to 10 TΩ with special Kel-F isolation

• Set of nine, ten or eleven resistors - 1 kΩ, 10 kΩ, 100 kΩ,1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ, 100 GΩ, 1 TΩ and 10 TΩ , open circuit (Depending on model)
• High Accuracy - as low as 20 ppm
• Standard voltages: of 5 kVDC and optional 10 kVDC
• Low Voltage Coefficient of Resistance even at 10 kVDC
• Excellent TC - as low as 5 ppm/°C
• Excellent stability - as low as 10 ppm/year
• Excellent for Calibration of Hipot Testers and Megohmmeters

Two user versions available:

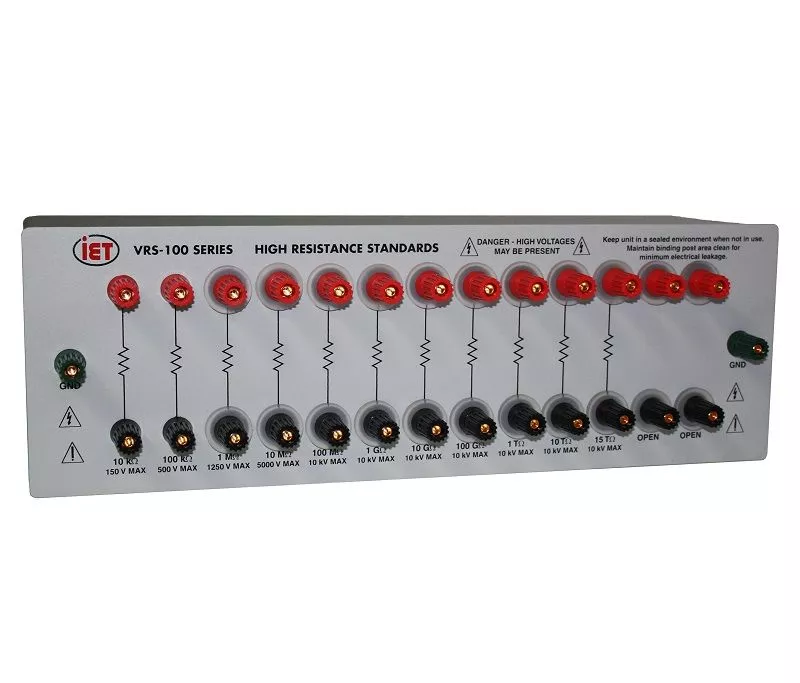

• binding posts

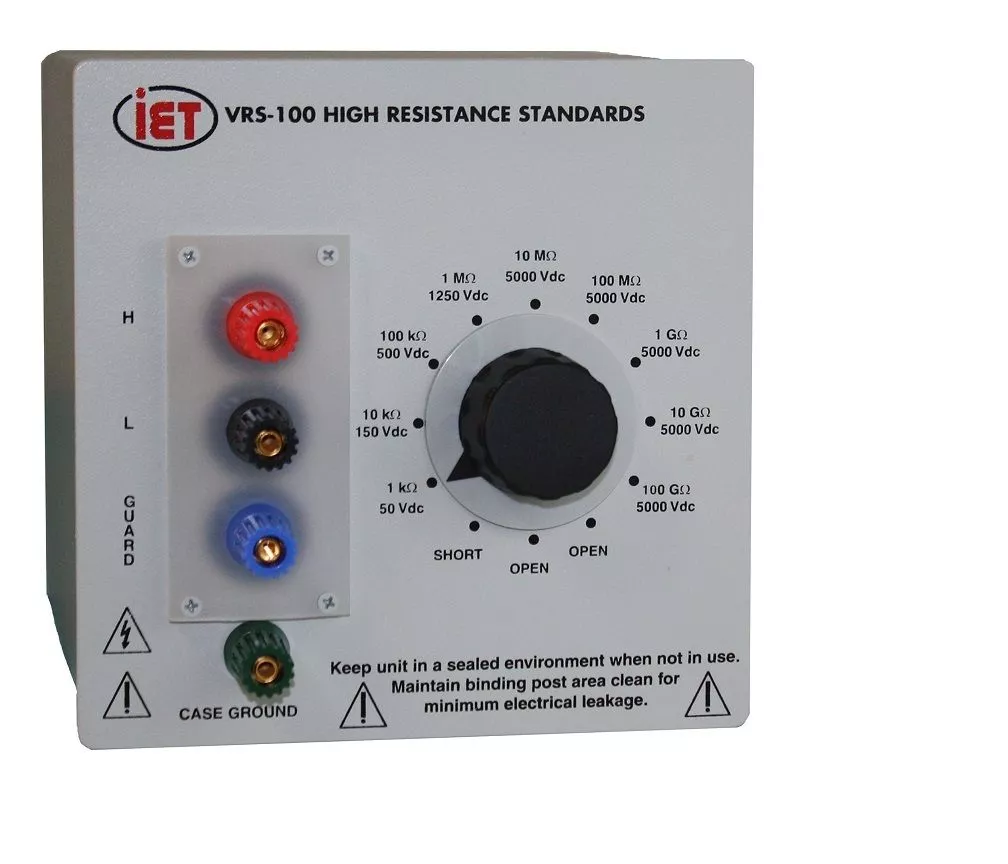

• rotary switch

Resistance values of 10 MΩ and less are calibrated with a Fluke 8508A Reference DMM. Resistance values above 10 MΩ are calibrated with a Keithley 6517B at 1000 Vdc.

In addition, all resistance values of 10 MΩ and greater are calibrated at 5 kVdc with a CMC^* as good as 0.5%.

The standard VRS-100 features a maximum voltage of 5 kVDC for values above 10 M&Omega. An (-10kV) option is available for 10 kVDC maximum voltage for resistance values above 100 MΩ.

The VRS-100 Series can be custom made to put any set of resistance values from 0.01 Ω - 10 TΩ in 1 housing. For example we can put a 5 TΩ resistance standard in a unit. Units can be made with as few as 3 values and as many as 11 resistance values.

Please contact our sales staff if you have a custom requirement.

^* See IET Labs scope of accreditation, A2LA Calibration Laboratory Certificate # 2073.01 for capabilities.

VRS High Resistance Standard Specifications

(See datasheet for full specifications)

Dimensions: 31.2 cm W x 11.4 cm H x 12.7 cm D (12.3" x 4.5"x5")
Weight: 2 kg (4.5 lb)

'
‘
‘
