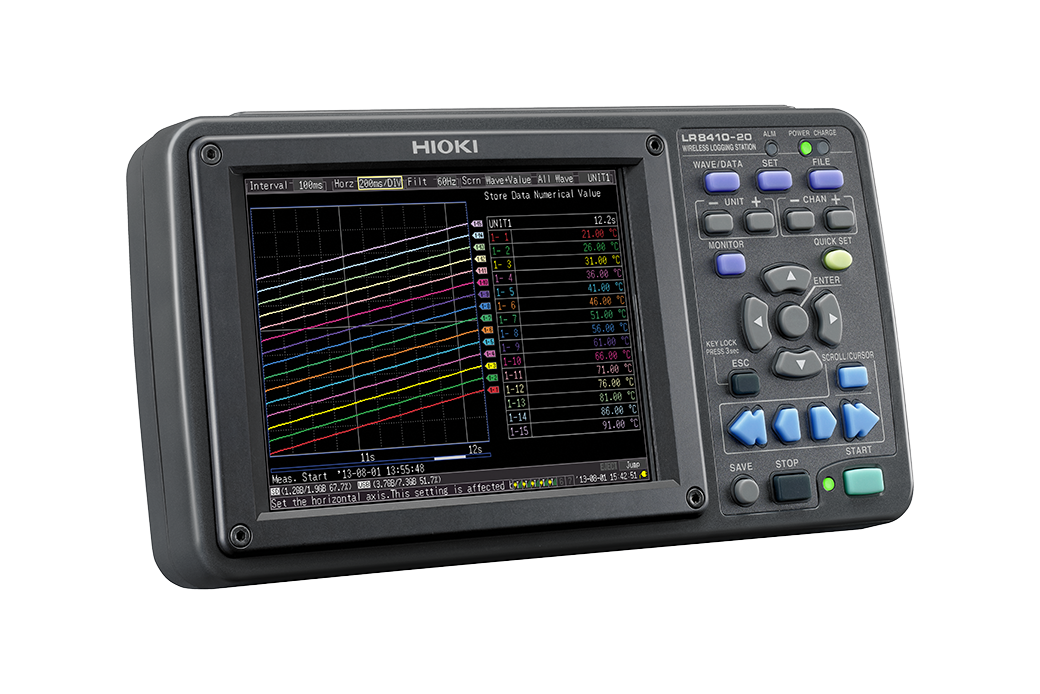

Wireless Multi-channel Data Logger Captures Up to 105 Data Points via Bluetooth®
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8410-20 is an innovative wireless logging system capable of capturing up to 105 channels of data wirelessly using Bluetooth® wireless technology.
For applications such as
● Developing and evaluating parts
● Simulating electricity generation characteristics and evaluating performance of solar power systems
● Evaluating air conditioning equipment and systems and measuring temperature
● Performance evaluation of the house
● Verifying elevator operation and performing maintenance
● Developing inverters and motors for railcars
● Monitoring the growth environment in a plastic greenhouse or other structure
● Managing temperature and humidity while shipping freight
● Recording rainfall volume, etc

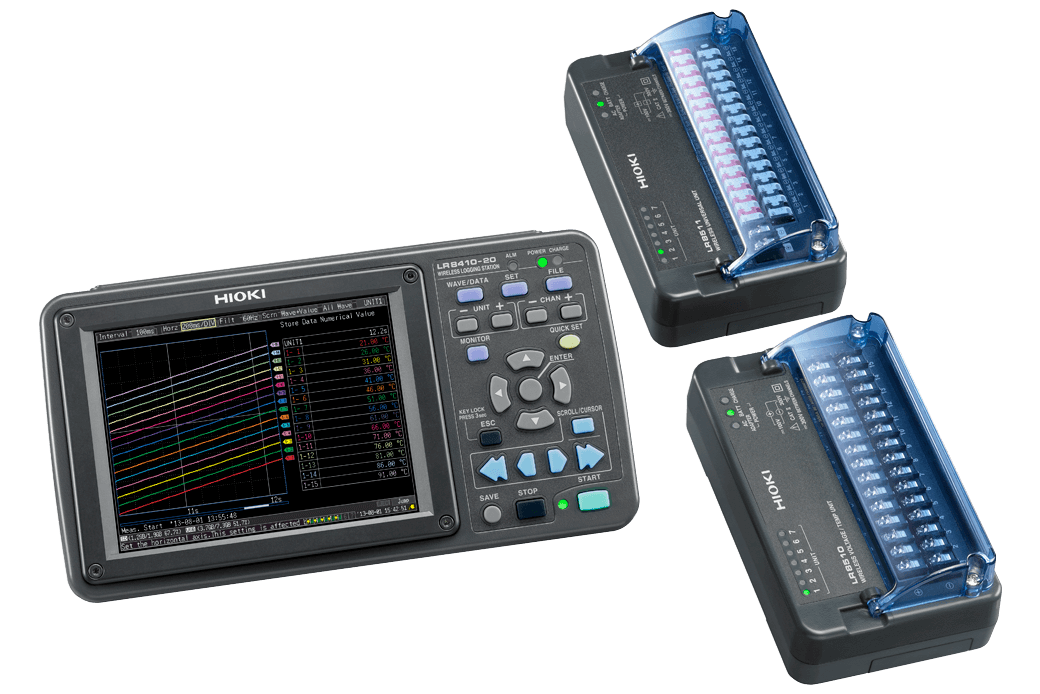

Connect up to 7 measurement units to perform multipoint measurement across a maximum of 105 channels when using 15-channel units LR8510 or LR8511.
Also pair with 1- or 2-channel wireless loggers, including LR8520, LR8512, LR8513, LR8514 or LR8515.
Mix and match 7 types of measurement units to consolidate the measurements you need.
Use Bluetooth(R) wireless technology to send and receive data over line-of-sight distances of up to 30 m.
＊The presence of obstructions may shorten this range
With a wired instrument…
Recording a large number of channels means you’ll have to deal with a mess of wires.
In addition to increasing the cost of connection cables and thermocouples, long wires make setup more time-consuming.
<< Resolved with wireless data transmission >>
The lack of wiring around the instrument makes for a clean installation.
Minimal wiring means lower costs and faster setup.
With a wired instrument…
Running a large number of thermocouples from a logger to the ceiling or crawlspace would mean a wiring nightmare.
<< Resolved with wireless data transmission >>
There’s no need to connect measurement units to the Wireless Logging Station LR8410 with long wires.
Instead, you can install the logging module in an attic or crawl space and check data from the LR8410's screen while measurement is ongoing.
With a wired instrument…
We can’t close the windows or doors due to all the wires.
As a result, there’s a gap in the gasket, and the vehicle cannot be sealed.
<< Resolved with wireless data transmission >>
Only the measurement unit needs to be installed in the vehicle.
Wires do not protrude outside the vehicle, allowing the windows and doors to be closed so that the vehicle can be tested under airtight conditions.
Installing individual loggers on test equipment means each set of measured data is on its on time line, making it hard to compare the data with respect to a single time axis.
Model LR8410 can observe measurement results from multiple pieces of experimental equipment as part of the same time series.
Logging modules are small enough to fit almost anywhere.
Measurement units and wireless loggers have built-in buffer memory so that measurement data can be saved if communication is temporarily disrupted.
This data is resent once communication is restored, allowing the measurement data to be stored in the
Wireless Logging Station.
The LR8410 features Hioki’s Quick Set function.
Since measurement units can be registered simply by following the Unit Registration Guide, even first-time users can start measurement right away.
If no logging modules have been registered, the Quick Set screen is displayed when the LR8410 is turned on, and the instrument automatically detects any logging modules that are within communications range.
It’s also easy to configure settings when adding measurement units later.
| No. of measurement channels | Max. 105 ch (use 7 units of LR8510 or LR8511) One or more LR8510 or LR8511 measurement modules are required. Main unit can control up to 7 modules with Bluetooth® wireless technology, mix and match modules as needed |
|||||
|---|---|---|---|---|---|---|
| Pulse, digital input | [Pulse totalization] [Rotation count] Not available | |||||
| Recording intervals | 100 ms(*2), 200 ms to 1 hour, 16 selections (All input channels are scanned within each recording interval.) (*2) Setting not available when the thermocouple burnout detection setting is on |
|||||
| Data storage | Internal memory: 8 M-words, Data storage media: SD memory card or USB memory stick (Only data recorded to a genuine HIOKI SD memory card is guaranteed) | |||||
| Interface | LAN: 100BASE-TX, Functions: Data acquisition using bundled software or PC commands, FTP server, FTP client, HTTP server function, or E-mail system USB: USB 2.0 series mini-B receptacle ×1, Functions: Data acquisition using bundled software or PC commands, Transfer data from the SD memory card to a PC via USB drive mode |
|||||
| Display device | 5.7 inch TFT color liquid crystal display (640 × 480 pixel) | |||||
| Functions | Save waveform data in real time to the SD memory card or USB memory stick, Numerical value calculations, Waveform calculations, 4ch alarm output (not isolated, common ground), and others | |||||
| Power supply | [AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 45 VA Max. (including AC adapter), 15 VA Max. (exclusive of AC adapter) [Internal battery] Using the Battery pack Z1007 (optional accessory), 3 hours of continuous use (at 23 ˚C reference data), 7 VA Max. [External power] 10 to 28 V DC, 15 VA Max. (Please contact your HIOKI distributor for connection cord) |
|||||
| Dimensions and mass | 230 mm (9.06 in) W × 125 mm (4.92 in) H × 36 mm (1.42 in) D, 700 g (24.7 oz) (excluding Battery pack) | |||||
| Included accessories | Instruction manual × 1, Measurement guide × 1, SD memory card (2GB) Z4001 × 1, CD-R (data collection software “Logger Utility”) × 1, USB cable × 1, AC Adapter Z1008 × 1 | |||||
| Compatible models | LabVIEW | MATLAB script | ||||
|---|---|---|---|---|---|---|
| LR8410-20 | OK | N/A | ||||
| Countries and regions where wireless operation is currently supported | Austria, Bangladesh, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kenya, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, New Caledonia, Norway, Poland, Portugal, Romania, Saudi Arabia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States, Viet Nam | |||||
|---|---|---|---|---|---|---|
| Wireless certification (special) | Singapore (Order Code: LR8410-20 only) China (Order Code: LR8410-30 only) Taiwan (Order Code: LR8410-20, LR8410-30 only) Indonesia (Order Code: LR8410-20 only) Australia, New Zealand (Order Code: LR8410-20 only) United Arab Emirates (UAE) (Order Code: LR8410-20 only) Israel (Order Code: LR8410-20 only) |
|||||
| Note | Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law. | |||||
