Specifications
| Product Code | Model | Operating temp. range | Temp. adjustment accuracy | Temp. distribution accuracy | Max. temp. reaching time | Operating temperature range | Temperature adjustment accuracy | Temperature distribution accuracy | Time to attain max. temp. | Internal dimensions（W×D×H mm） | External dimensions（W×D×H mm） | Power supply | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

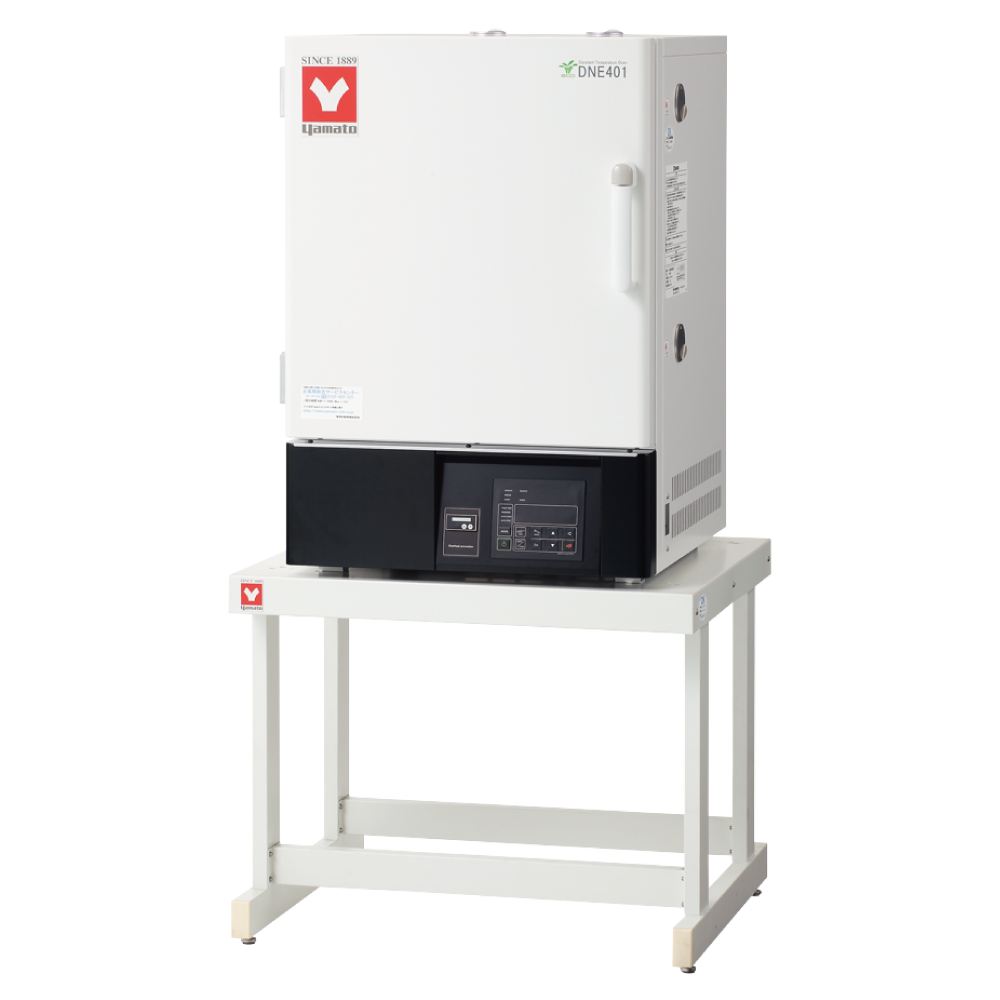

| 212818 | DNE401 | Room temp. +20 to 210℃ | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 60 min. | - | - | - | - | 450×450×450mm | 580×645×860mm | AC115V 11A Single-phase |
63kg |
| 212819 | DNE411 | Room temp. +20 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 60 min. | - | - | - | - | 450×450×450mm | 580×645×860mm | AC220V 6A Single-phase |
63kg |

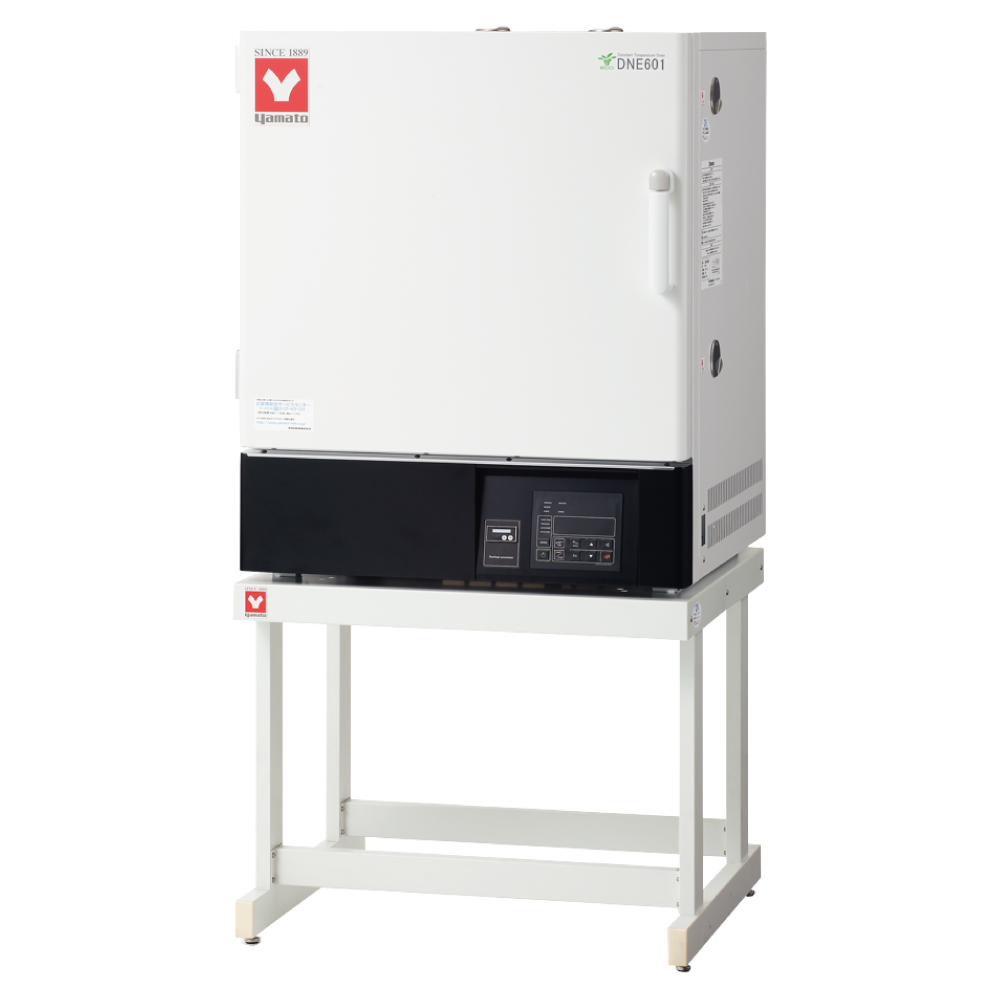

| 212824 | DNE601 | Room temp. +20 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 70 min. | - | - | - | - | 600×500×500mm | 730×695×910mm | AC115V 12A Single-phase |
77kg |
| 212825 | DNE611 | Room temp. +20 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 70 min. | - | - | - | - | 600×500×500mm | 730×695×910mm | AC220V 7A Single-phase |
77kg |
| 212857 | DNE650 | - | - | - | - | Room temp. +10°C to 260°C | ±0.2℃（at 260℃） | ±2.0℃（at 260℃） | Approx. 65 min. | 600×500×500mm | 770×696×995mm | AC100 to 120V 14 to 16.5A Single-phase |
90kg |
| 212881 | DNE650V | - | - | - | - | Room temp. +10°C to 260°C | ±0.2℃（at 260℃） | ±2.0℃（at 260℃） | Approx. 65 min. | 600×500×500mm | 770×696×995mm | AC100 to 120V 14 to 16.5A Single-phase |
90kg |

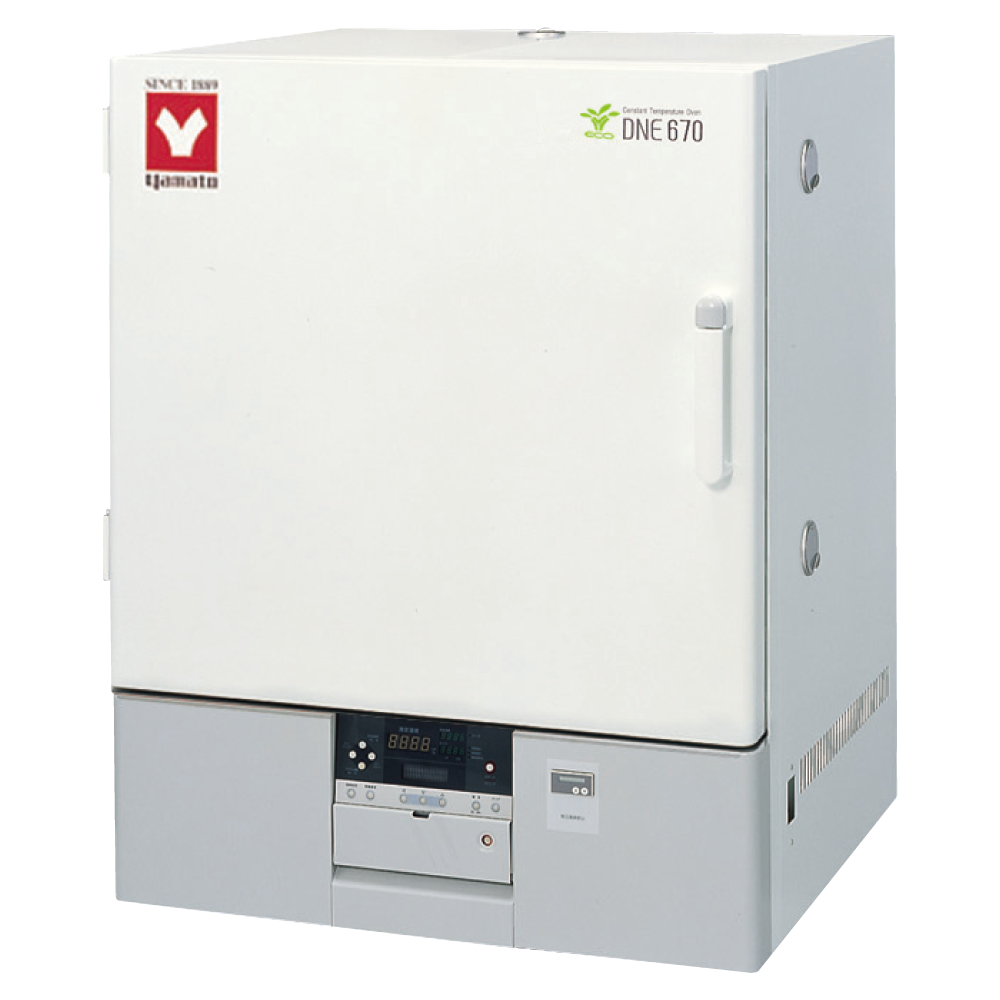

| 212858 | DNE670 | - | - | - | - | Room temp. +10°C to 260°C | ±0.2℃（at 260℃） | ±2.0℃（at 260℃） | Approx. 65 min. | 600×500×500mm | 770×696×995mm | AC200 to 240V 7 to 8.5A Single-phase |
90kg |
| 212882 | DNE670V | - | - | - | - | Room temp. +10°C to 260°C | ±0.2℃（at 260℃） | ±2.0℃（at 260℃） | Approx. 65 min. | 600×500×500mm | 770×696×995mm | AC200 to 240V 7 to 8.5A Single-phase |
90kg |

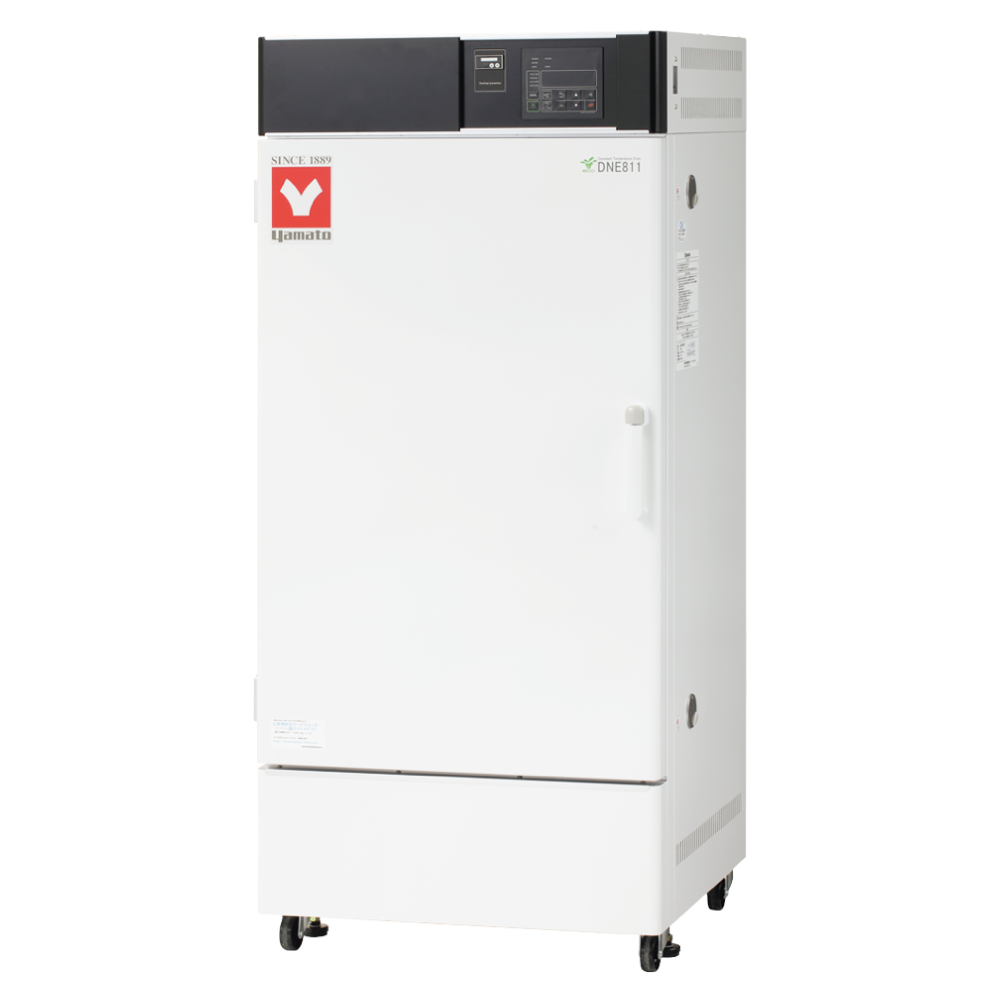

| 212826 | DNE811 | Room temp. +15 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 45 min. | - | - | - | - | 600×500×1000mm | 730×695×1660mm | AC220V 12A Single-phase |
92kg |

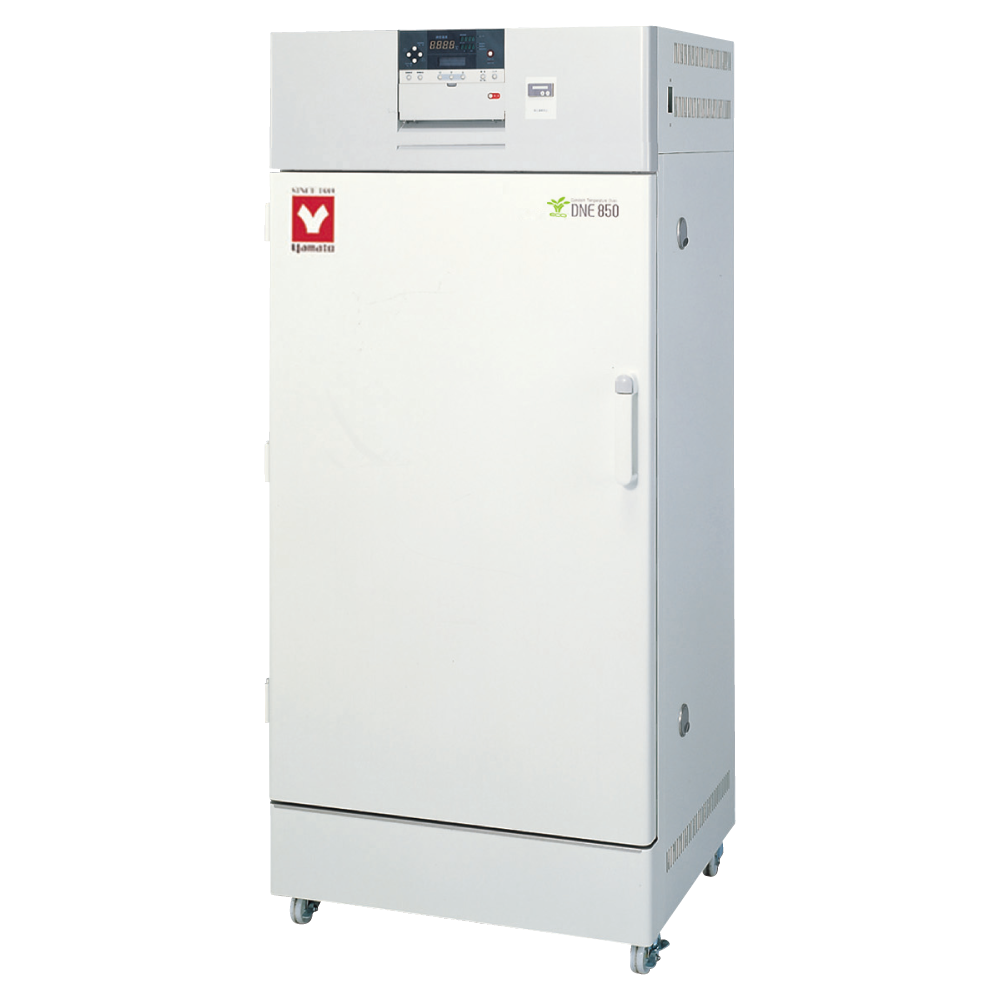

| 212859 | DNE850 | - | - | - | - | Room temp. +10°C to 260°C | ±0.2℃（at 260℃） | ±2.0℃（at 260℃） | Approx. 55 min. | 600×500×1000mm | 770×696×1760mm | AC200 to 240V 12.5 to 15A Single-phase |
130kg |
| 212883 | DNE850V | - | - | - | - | Room temp. +10°C to 260°C | ±0.2℃（at 260℃） | ±2.0℃（at 260℃） | Approx. 55 min. | 600×500×1000mm | 770×696×1760mm | AC200 to 240V 12.5 to 15A Single-phase |
130kg |
| 212827 | DNE911 | Room temp. +15 to 210°C | ±0.5°C (at 210°C) | ±2.0°C (at 210°C) | Approx. 60 min. | - | - | - | - | 1090×500×1000mm | 1220×695×1660mm | AC220V 15A Single-phase |
185kg |
‘
‘
‘
