Specifications
| Item Code | 211140 |
|---|---|
| Model | DH650 |
| Method | Forced convection circulation |
| Operating temperature range | Room temp. +10~500°C |
| Temp. control accuracy | ±0.5℃（at 500℃） |
| Temp. distribution accuracy | ±3℃（at 300℃）、±5℃（at 500℃） |
| Max. temp. reaching time | Approx. 60min （at 500℃） |
| Interior material | Stainless steel plate |
| Exterior material | Cold rolled steel plate with chemical proofing coating |
| Heater | Alloy heating wire, 7.8KW |
| Insulating material | Ceramic fiber block, Heat insulation block, Rock wool |
| Blow fan / motor | Propeller fan / Condenser type motor |
| Exhaust port/Cable hole | I.D. 80mm with damper x 1 pc. (at back) |
| Heater circuit control | SSR driving |
| Sensor | K thermocouple (Temp. controller and overheat protector) |
| Damper | Circulation, Exhaust control by manually |
| Safety device | Self-diagnosis circuit (Abnormal temp. sensing, Heater disconnection, Auto overheat prevention, SSR short circuit), Overheat protector, Overcurrent ELB, Key lock. |
| Additional functions | Calibration offset, Key lock, External alarm |
| Shelf plate with standard load | 30kg / piece |
| Shelf support step number/pitch | 9 steps / 60mm |
| Shelf plate | Stainless steel wire shelf 3 pcs |
| Shelf support | 6 pcs |
| Internal dimensions（W×D×H mm） | 600×600×600mm |

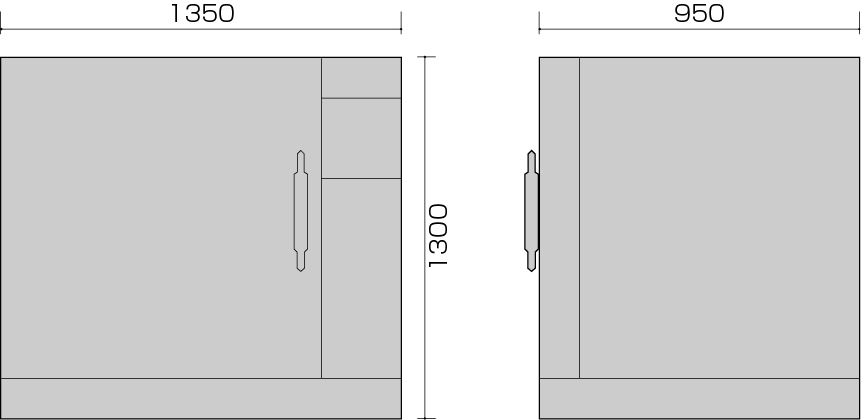

| External dimensions（W×D×H mm） | 1350×950×1300mm |
| Remarks(dimensions) | 216L |
| Power Source | AC380V 12.5A Three-phase |
| Weight | 250kg |
‘
‘
‘
